Components and Components Location: Components

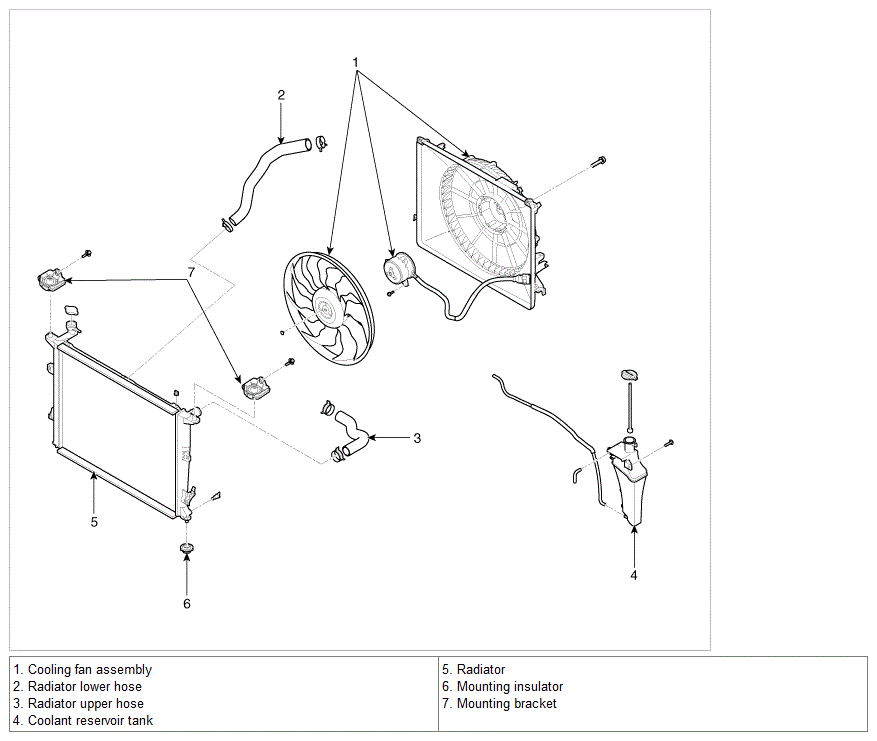

Fig 1: Identifying Radiator And Related Components
G08829913Courtesy of HYUNDAI MOTOR AMERICA
