Fuel Filter: Service and Repair

Replacement

1. Remove the fuel pump .

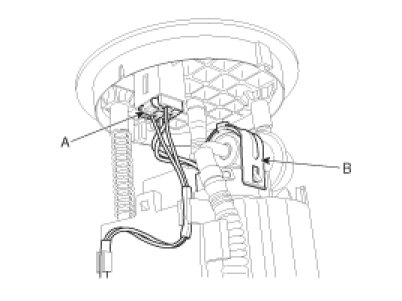

2. Disconnect the electric pump & sender wiring connector (A) and remove the regulator cap (B).

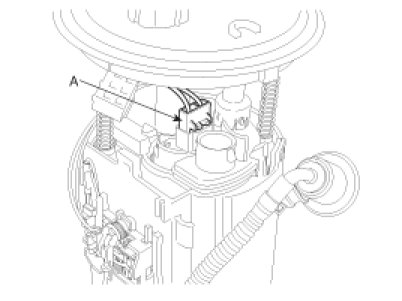

3. Disconnect the electric pump wiring connector (A) from the pump.




4. Disconnect the feed tube connector (A).

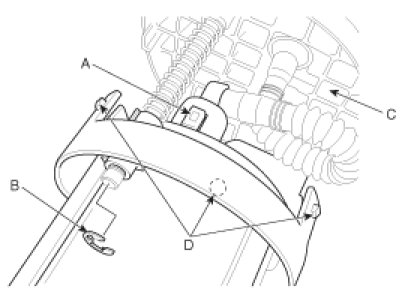

5. Remove the cushion pipe fixing clip (B) after pressing the head assembly (C).
6. Separate the head assembly (C) from the fuel pump & filter assembly after disengaging the three fixing hooks (D).
7. Separate the fuel filter (A) from the fuel pump assembly (B) after disengaging the three fixing hooks (C).
