Lower Panel Replacement

  1. Remove the crash pad side cover.
  2. Disconnecting the connector (B).
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

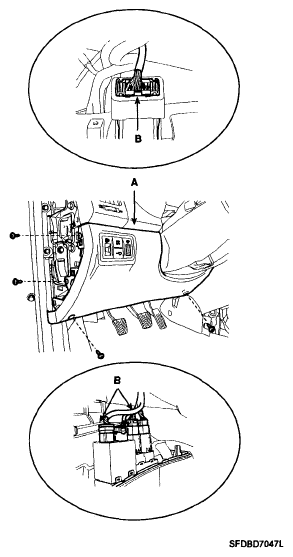

    Fig 1: Identifying Lower Panel And Connector With Crash Pad Lower Panel Mounting Screws
    G06145140Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the mounting bolts, then remove the reinforcing panel (A).

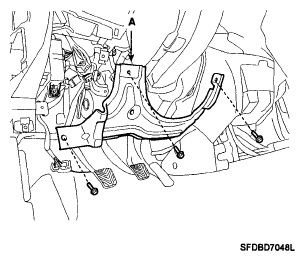

    Fig 2: Identifying Reinforcing Panel With Mounting Bolts
    G06145141Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
