Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat (Refer to "SEAT " in BD group).
  3. Remove the fuel pump service cover (A).

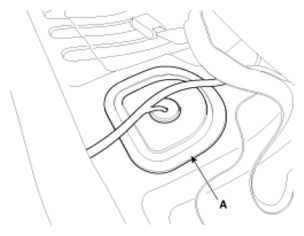

    Fig 1: Identifying Fuel Pump Service Cover
    G07264099Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.

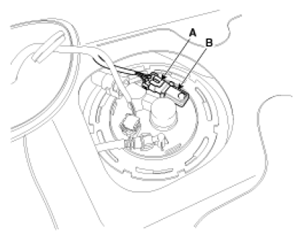

    Fig 2: Identifying Fuel Tank Pressure Sensor Connector
    G07264100Courtesy of HYUNDAI MOTOR CO.
