Trunk Lid Open Switch

Check for continuity between the Trunk lid open switch terminals.

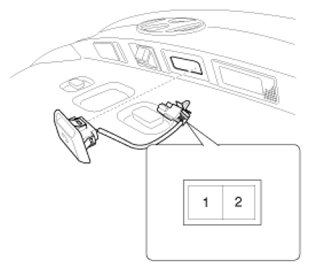

Fig 1: Trunk Lid Open Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
If continuity is not specified, inspect the switch

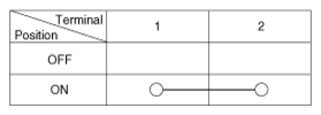

Fig 2: Trunk Lid Open Switch Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
