Fuse: Locations

Fuse & Relay Information

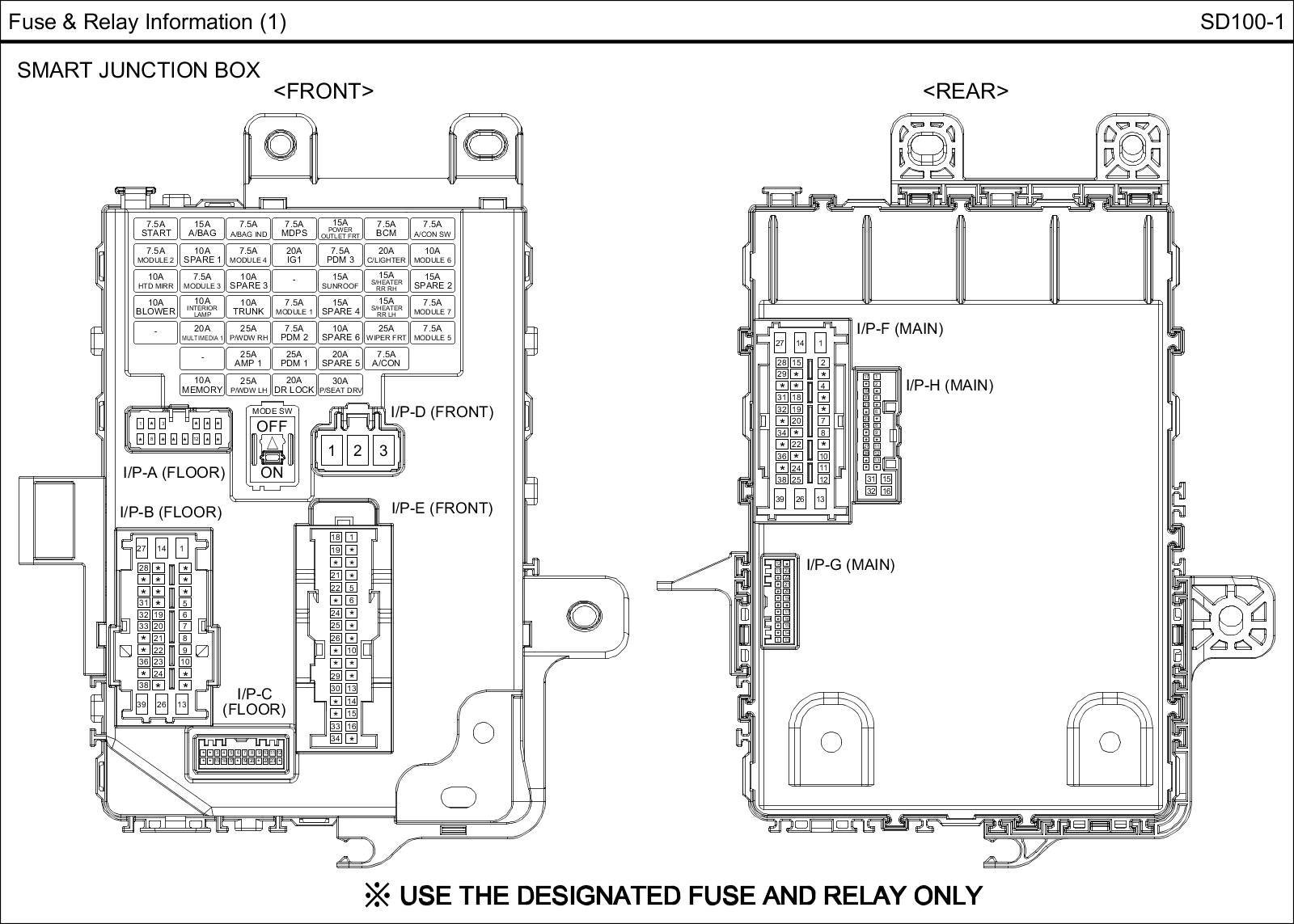

Smart Junction Box View:

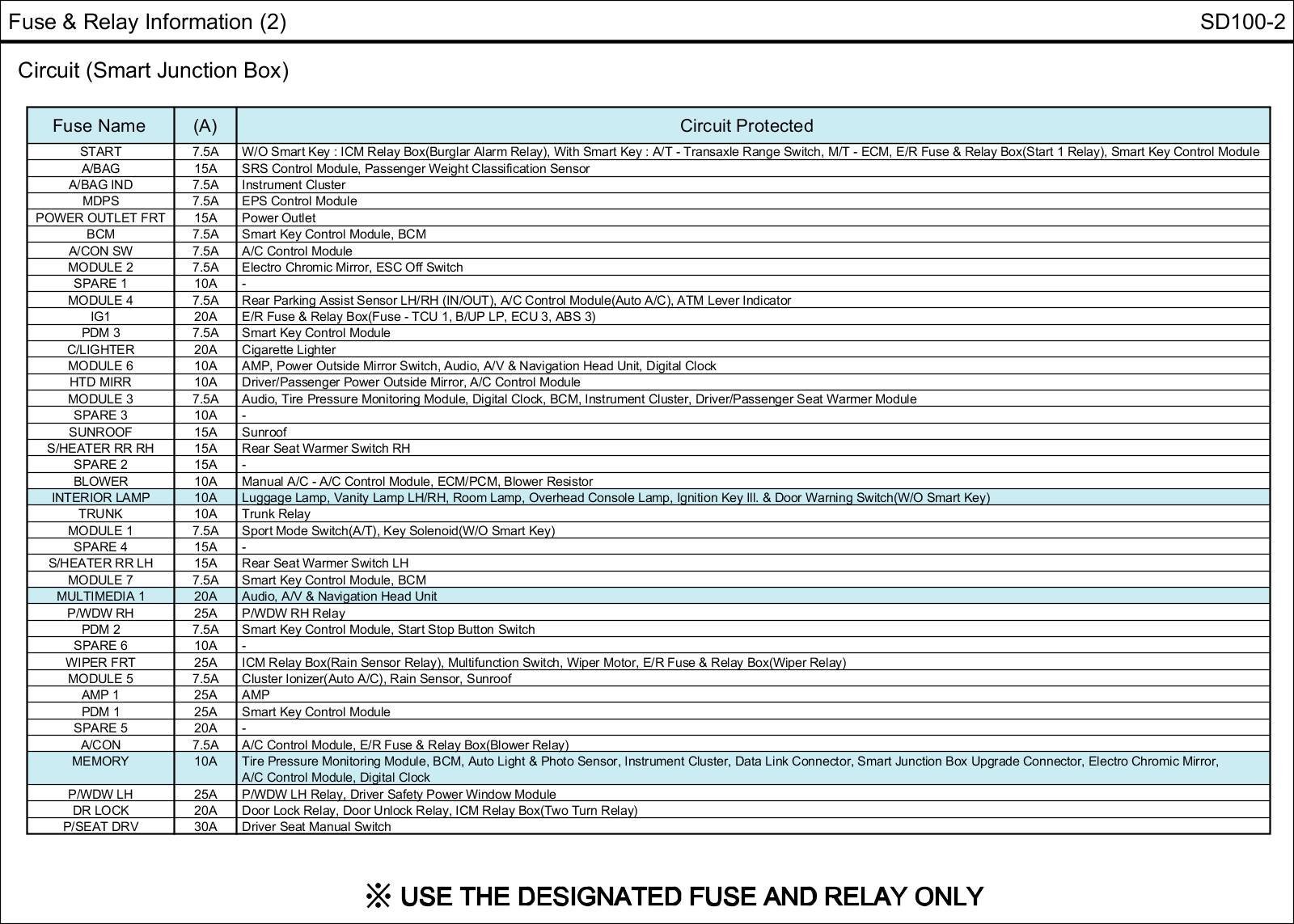

Smart Junction Box Circuit Details:

E/R Fuse & Relay Box View:

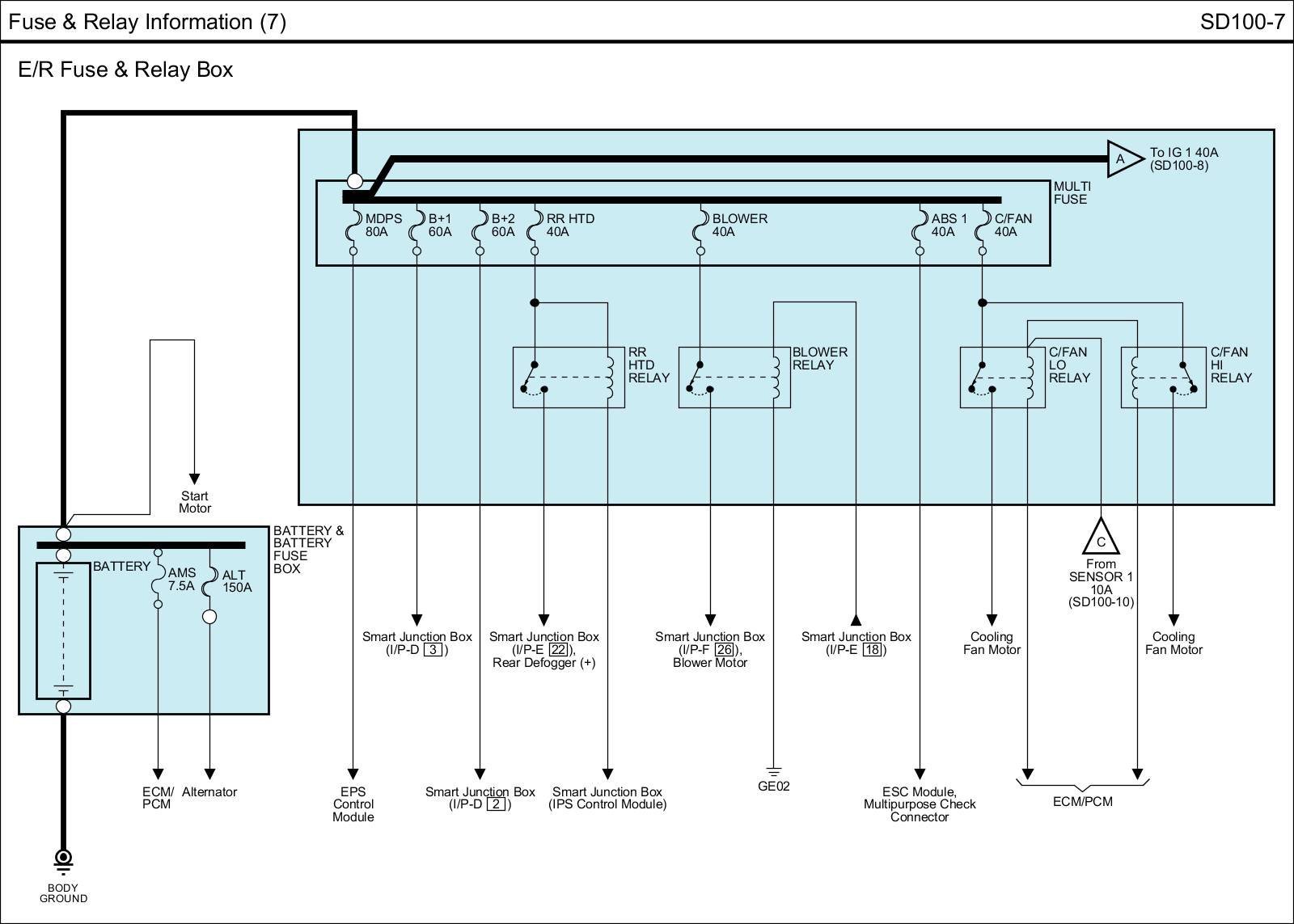

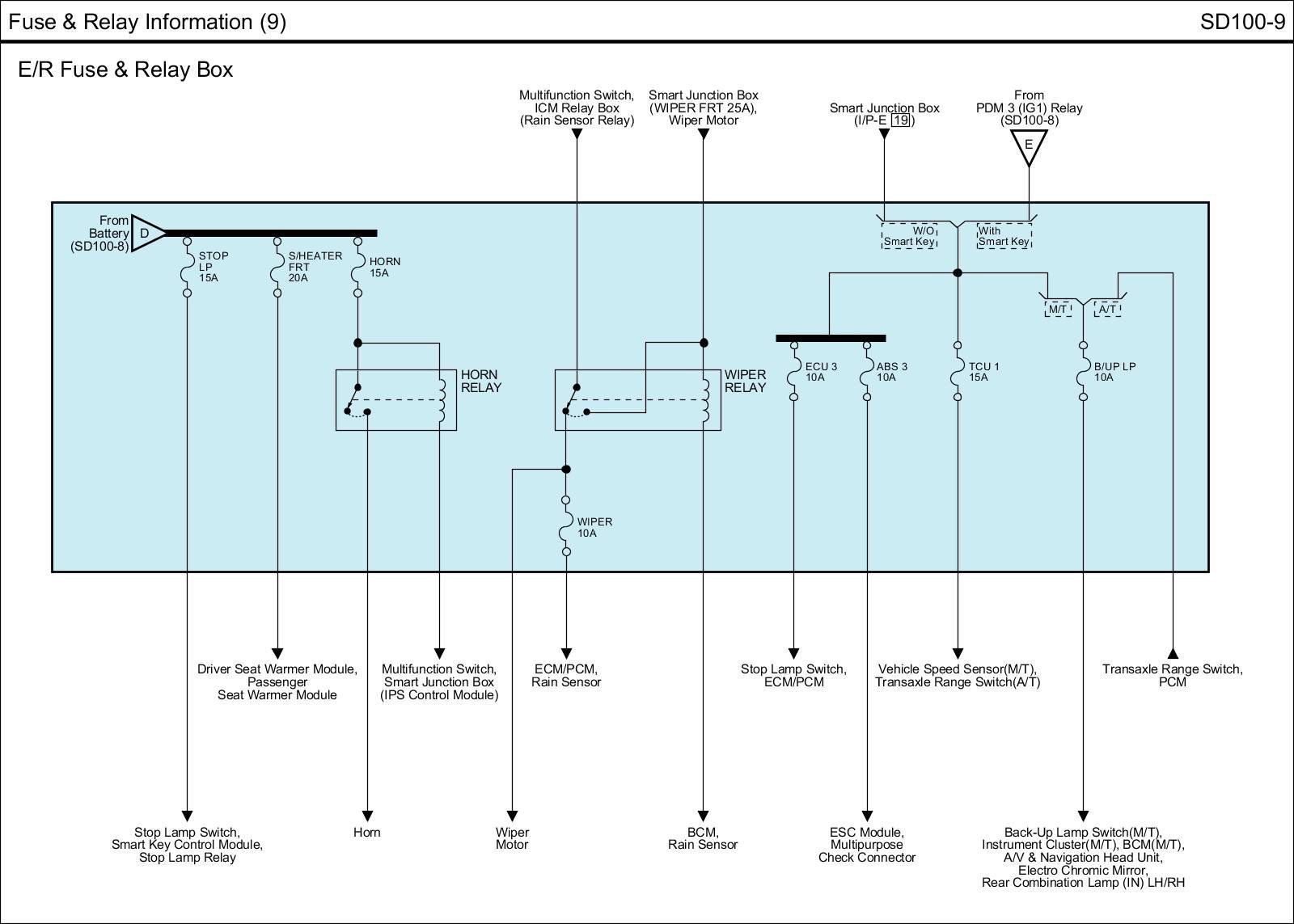

E/R Fuse & Relay Box Circuit Details:

EMS Box View:

EMS Box Circuit Details:

E/R Fuse & Relay Box View:

E/R Fuse & Relay Box View:

E/R Fuse & Relay Box View:

EMS Box View:

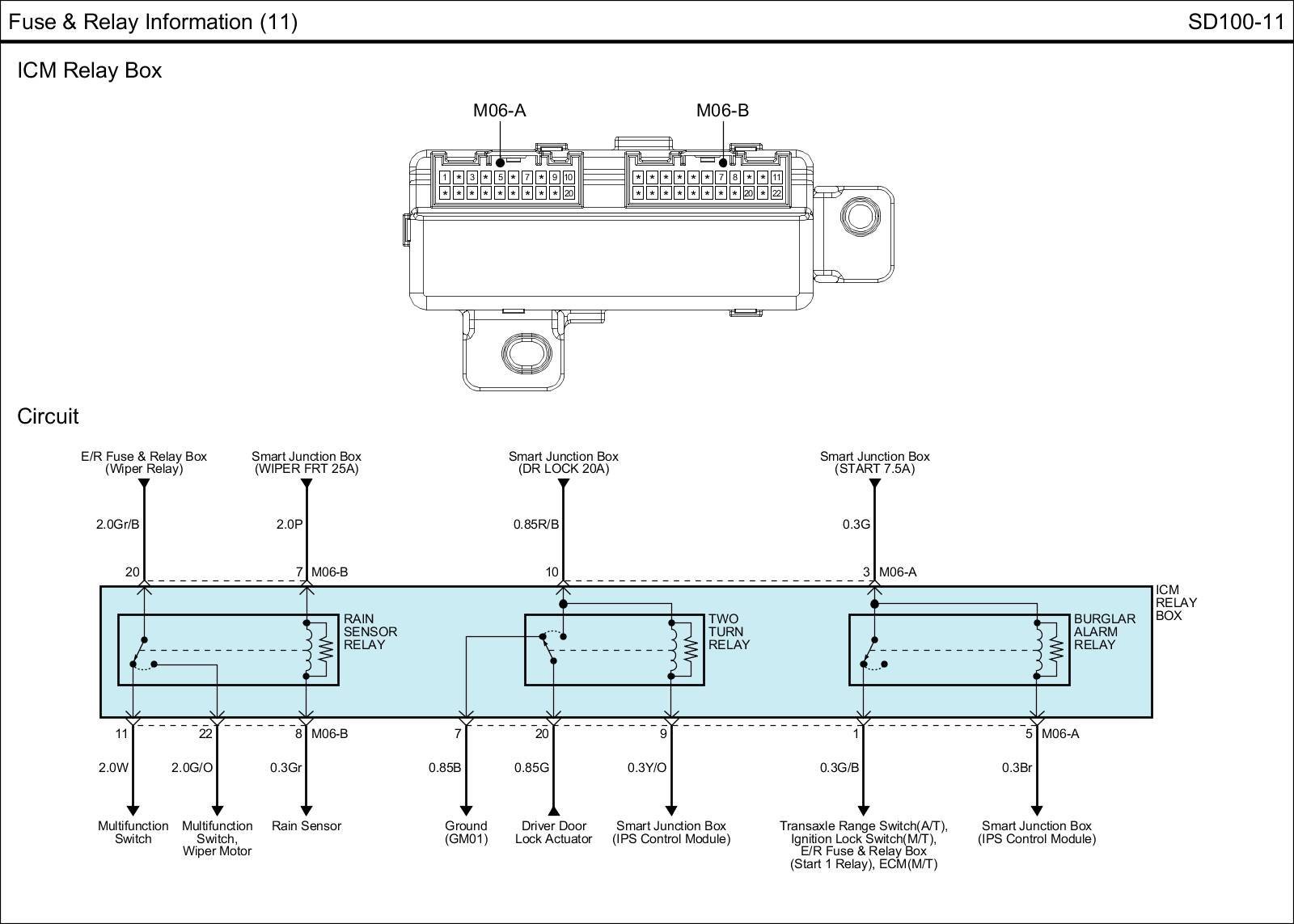

ICM Relay Box View:
