Entertainment System Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Entertainment System Control Module

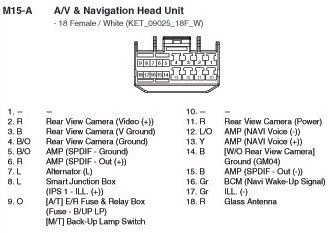

M15-A A/V & Navigation Head Unit:

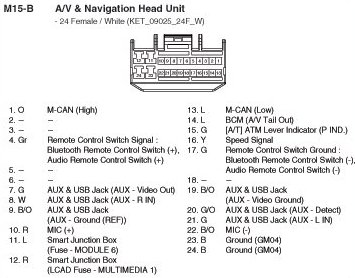

M15-B A/V & Navigation Head Unit:
