Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
ECM (M/T)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ECM (M/T)

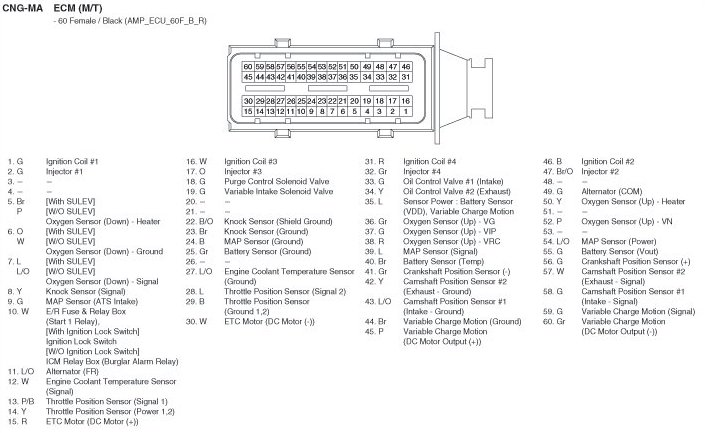

CNG-MA ECM (M/T):

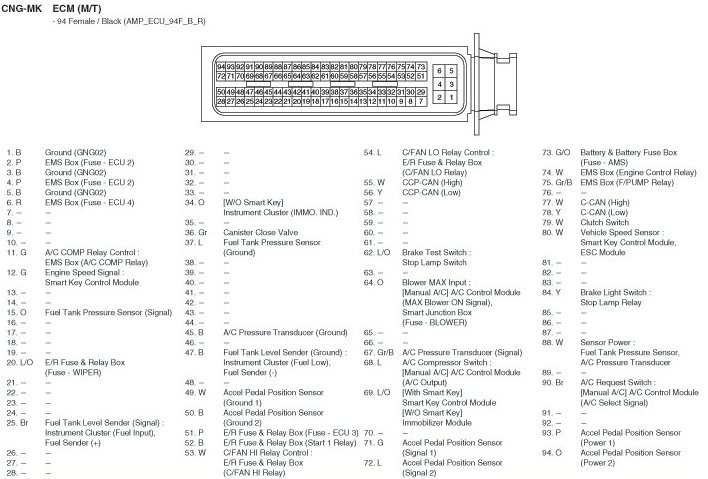

CNG-MK ECM (M/T):
