Engine Control System Diagnosis (1 Of 2)
>>
DTC P0113: Intake Air Temperature Sensor1 Circuit High Input
>>
General Information
>>
Diagnostic Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

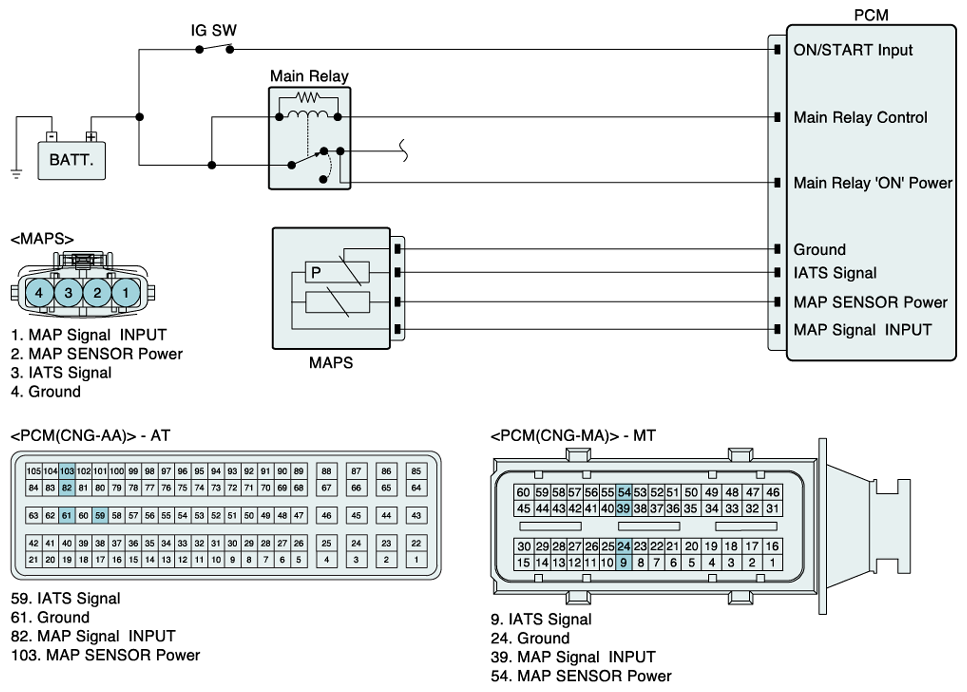

Diagnostic Circuit Diagram
Fig 1: MAP And IATS - Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
