Signal Circuit Inspection

IG KEY 'OFF'.
Disconnect PCM and Fuel Level Sender 'A' harness connector.
Measure resistance between signal terminal of Fuel Level Sender 'A' harness connector and chassis ground.
Specification: Infinite

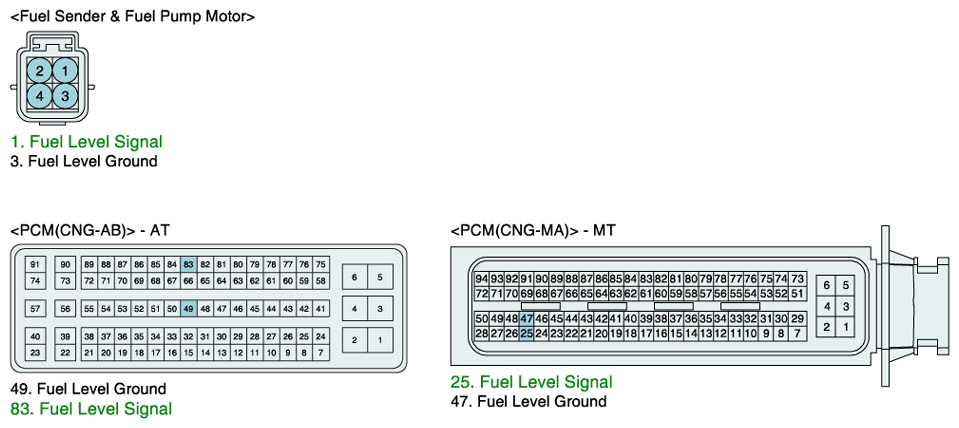

Fig 1: Measuring Resistance Between Signal Terminal Of Fuel Level Sender 'A' Harness Connector And Chassis Ground (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

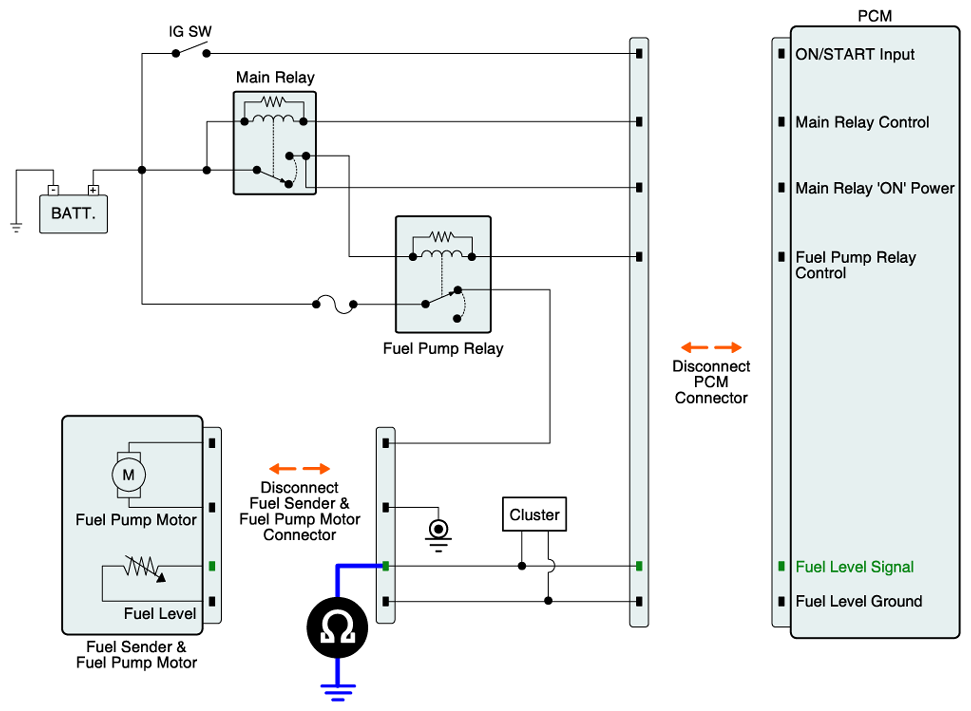

Fig 2: Measuring Resistance Between Signal Terminal Of Fuel Level Sender 'A' Harness Connector And Chassis Ground (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
