Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the resonator and the air intake hose (Refer to "INTAKE AND EXHAUST SYSTEM
" in EM group).

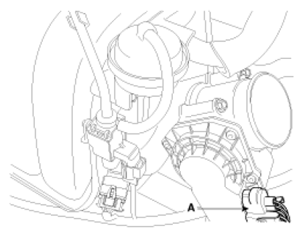

- Disconnect the ETC module connector (A).
Courtesy of HYUNDAI MOTOR CO.

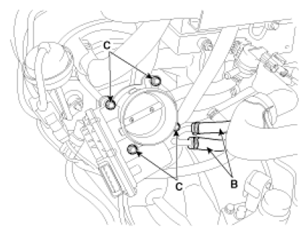

- Disconnect the coolant hoses (B).
- Remove the installation bolts (C), and then remove the ETC module from the engine.
Courtesy of HYUNDAI MOTOR CO.
