Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

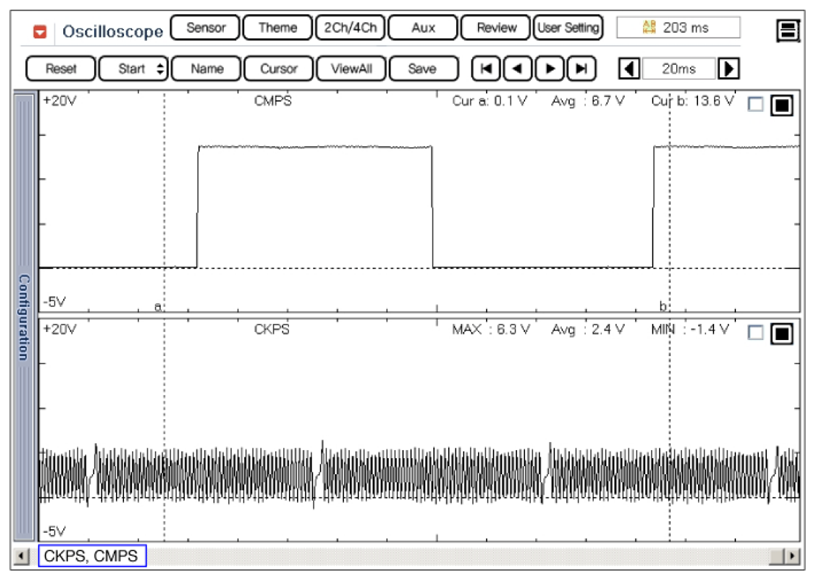

Fig 1: Screen Display - Waveform (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

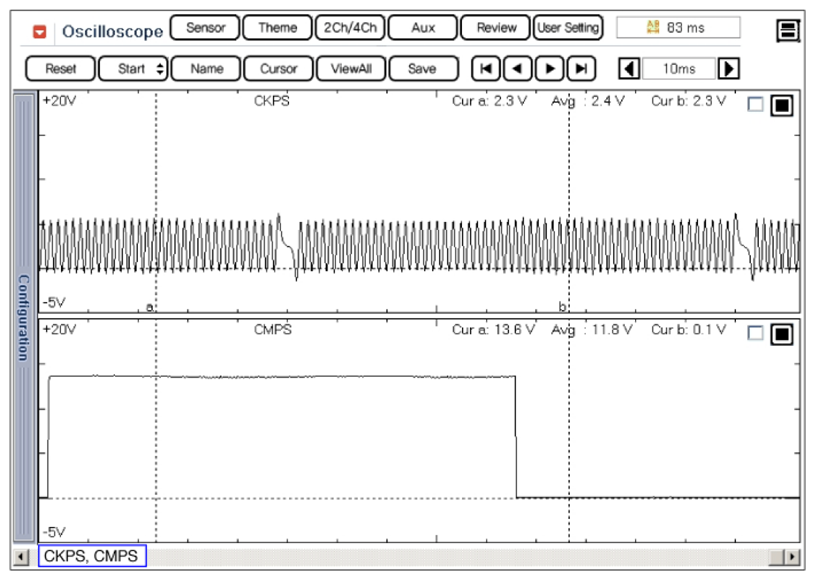

Fig 2: Screen Display - Waveform (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
