Components and Components Location: Components

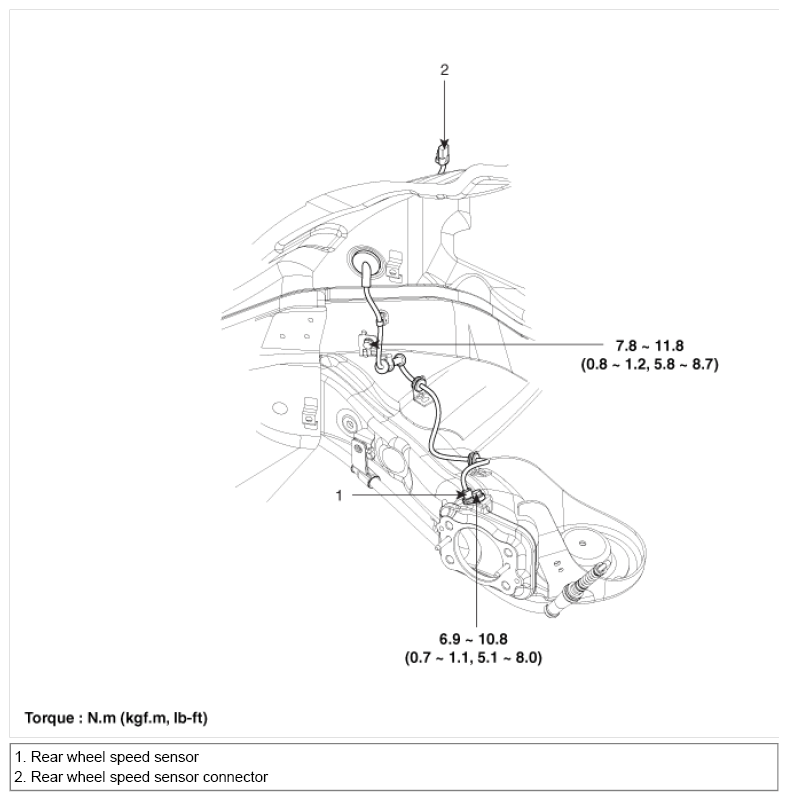

Fig 1: Rear Wheel Speed Sensor Replacement Components With Torque Specifications
G07264655Courtesy of HYUNDAI MOTOR CO.
