Driver Power Window Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Power Window Switch

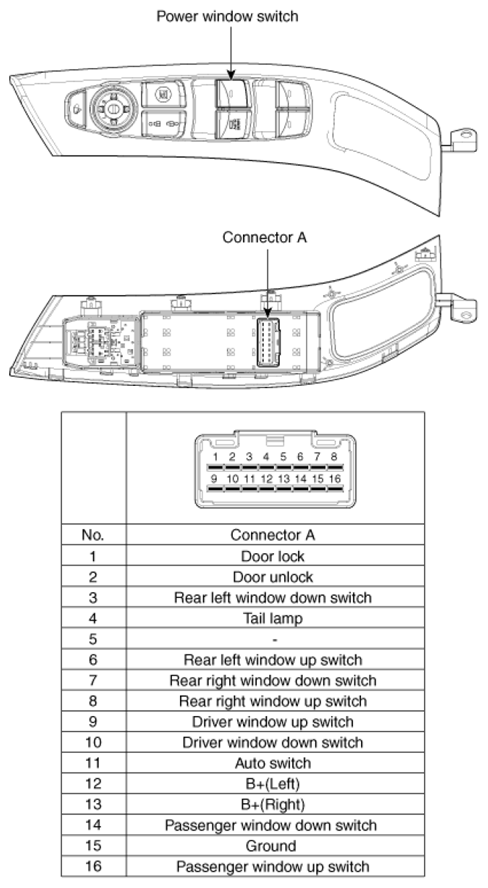

Fig 1: Driver Power Window Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
