Components And Components Location: Components

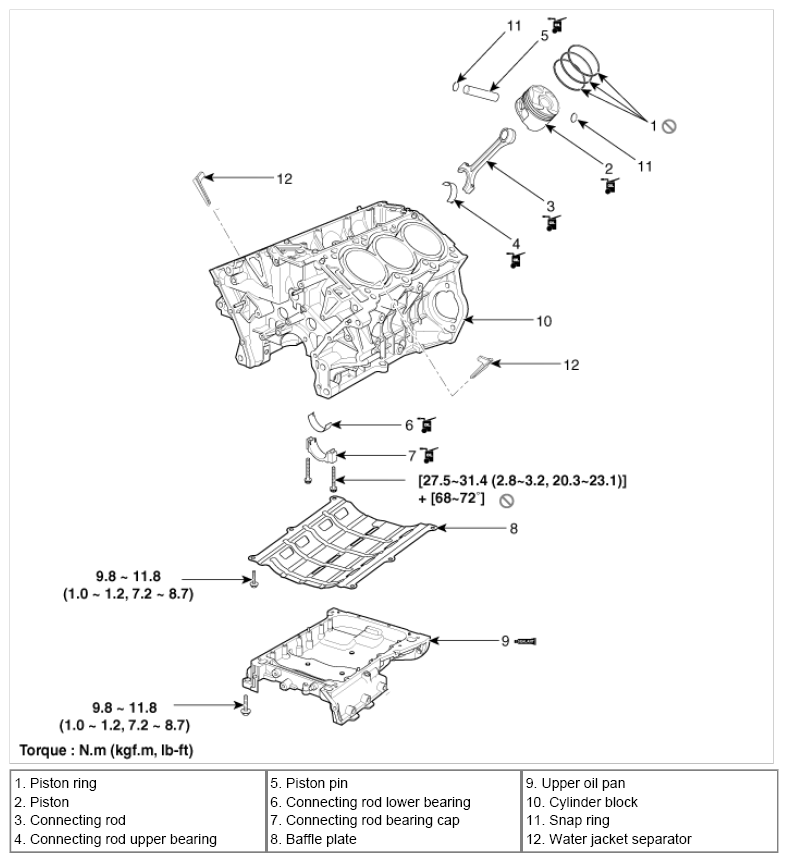

Fig 1: Cylinder Block And Related Replacement Components With Torque Specifications (1 Of 2)
G08809287Courtesy of HYUNDAI MOTOR AMERICA

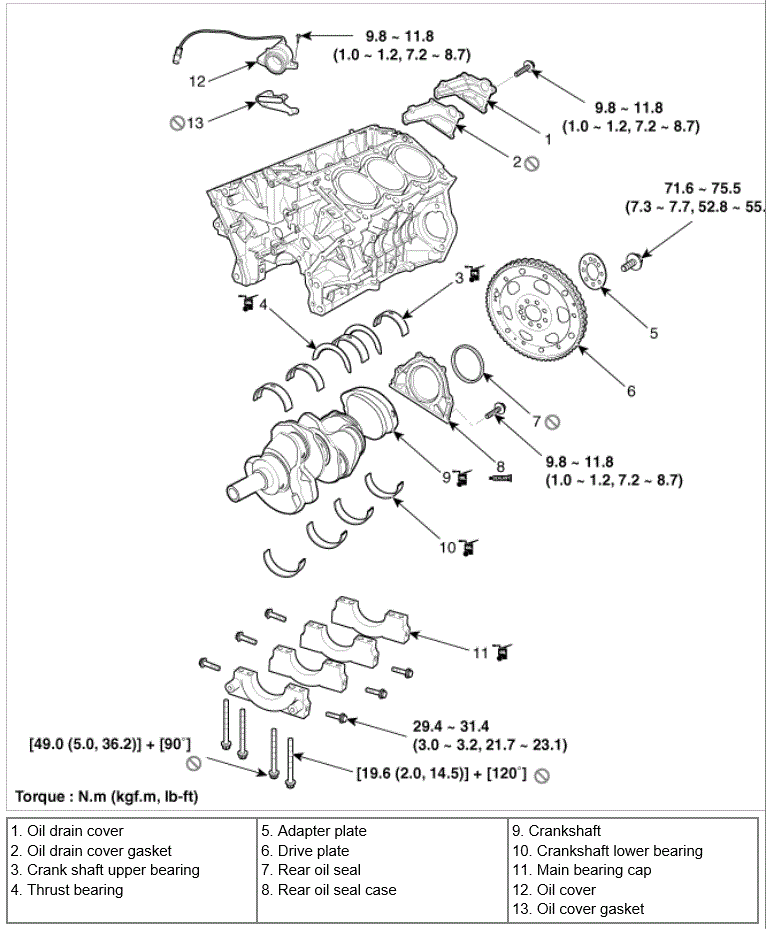

Fig 2: Cylinder Block And Related Replacement Components With Torque Specifications (2 Of 2)
G08809288Courtesy of HYUNDAI MOTOR AMERICA
