Components and Components Location: Components

[General Type]

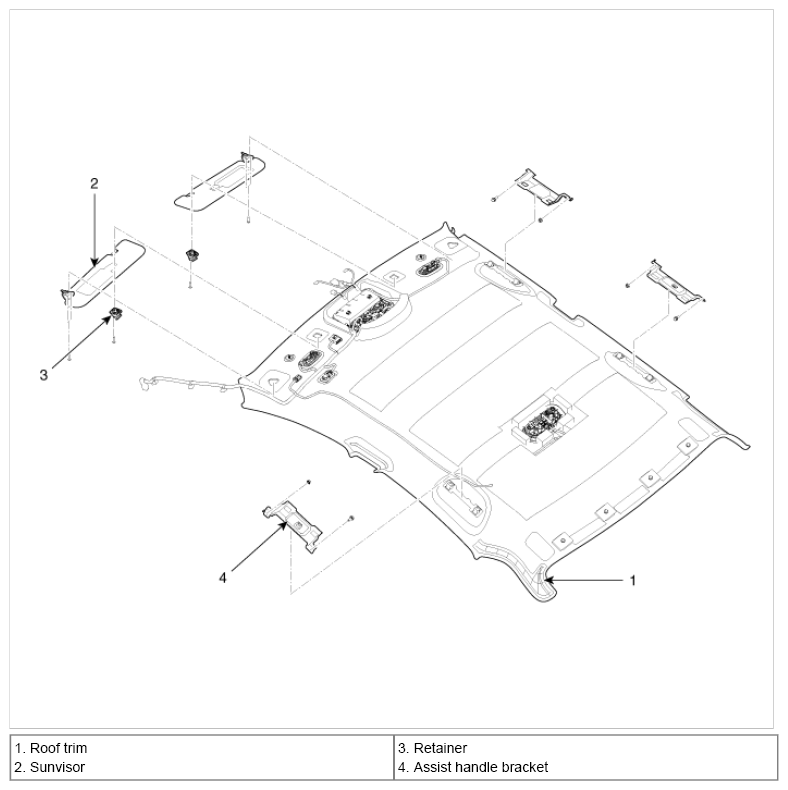

Fig 1: Identifying Roof Trim Components
G08810749Courtesy of HYUNDAI MOTOR AMERICA

[Panorama roof Type]

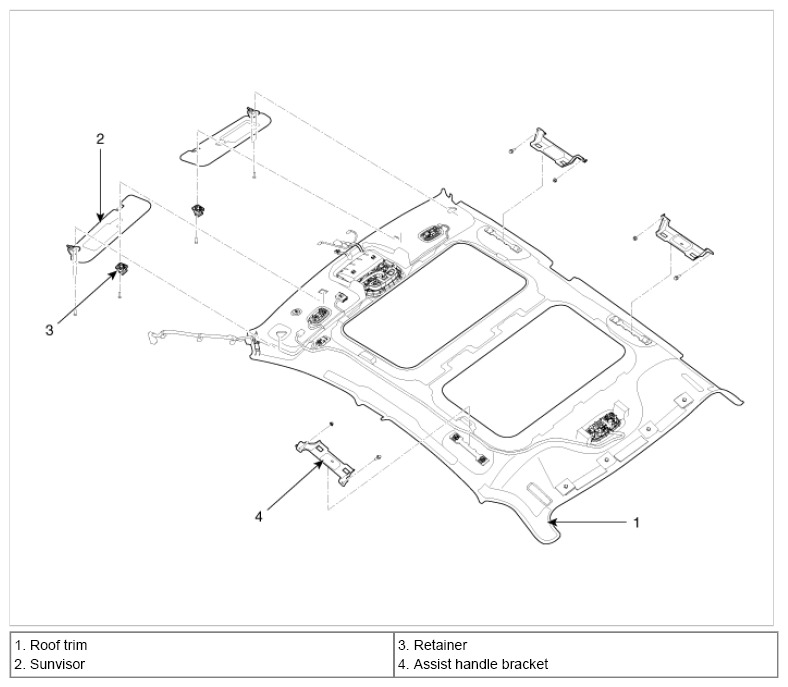

Fig 2: Identifying Roof Trim Components
G08810750Courtesy of HYUNDAI MOTOR AMERICA
