DTC B1602-00: CAN Error
>>
General Information
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

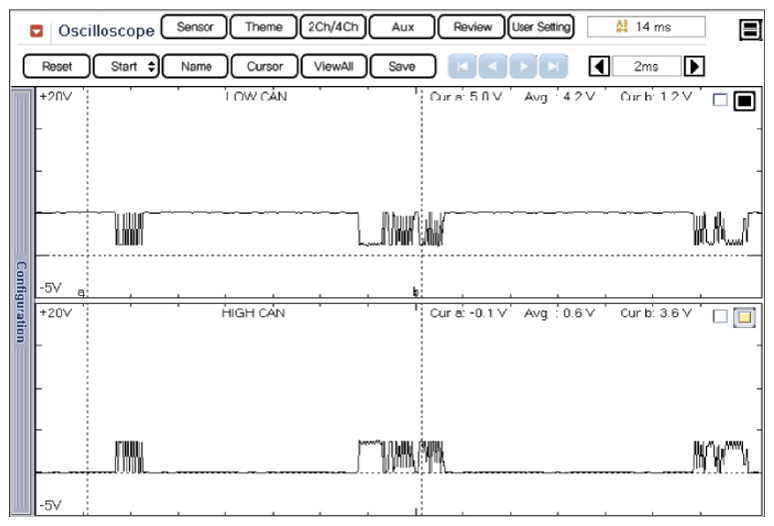

Fig 1: CAN Low/High Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA

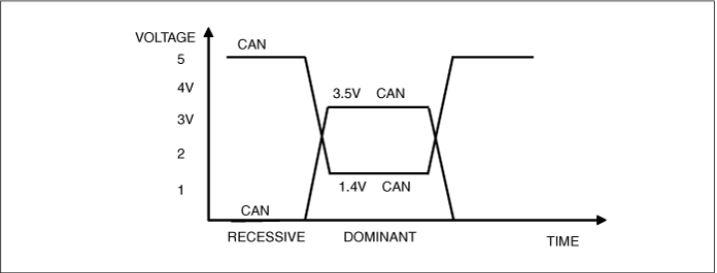

Fig 2: CAN BUS Voltage Level (Low Speed CAN)
Courtesy of HYUNDAI MOTOR AMERICA
