Diagnostic Circuit Diagram

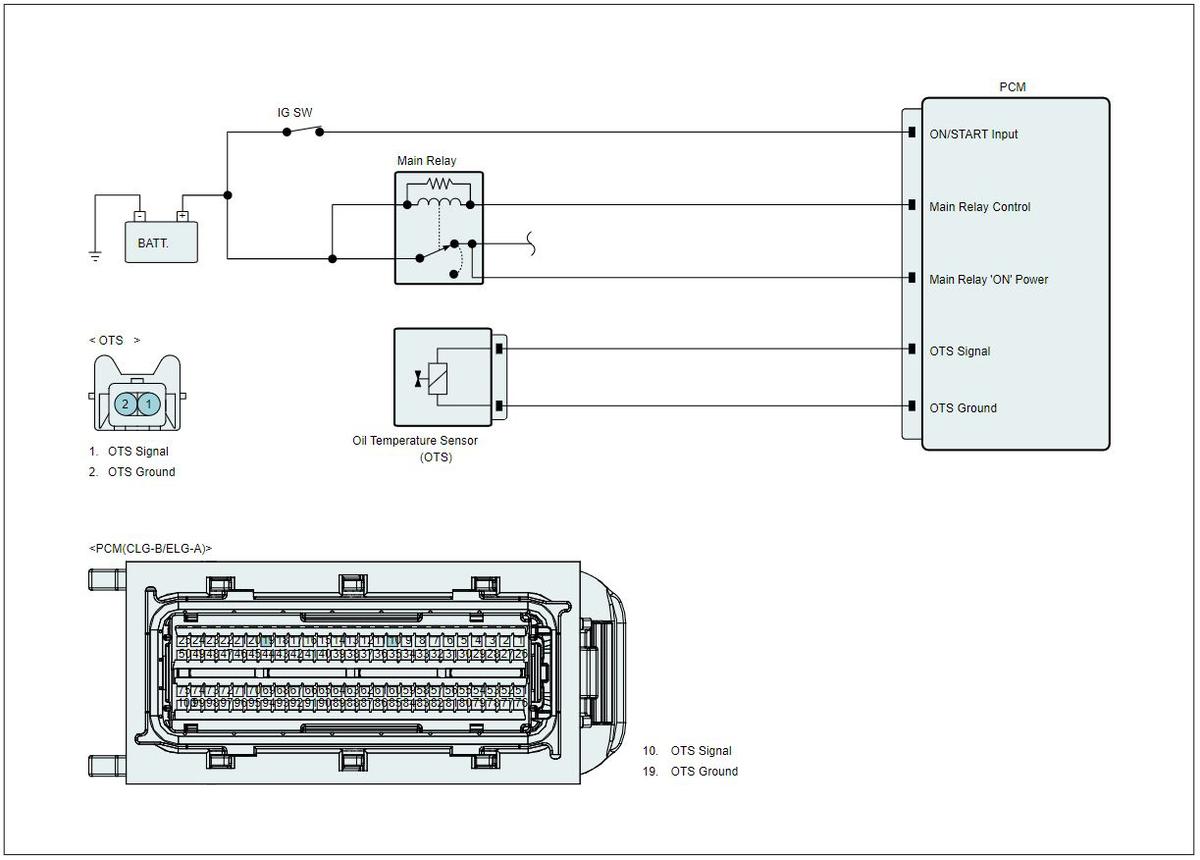

Fig 1: Engine Oil Temperature Sensor Diagnostic Circuit Diagram
G08817199Courtesy of HYUNDAI MOTOR AMERICA
