Audio Remote Control Switch (LH High)

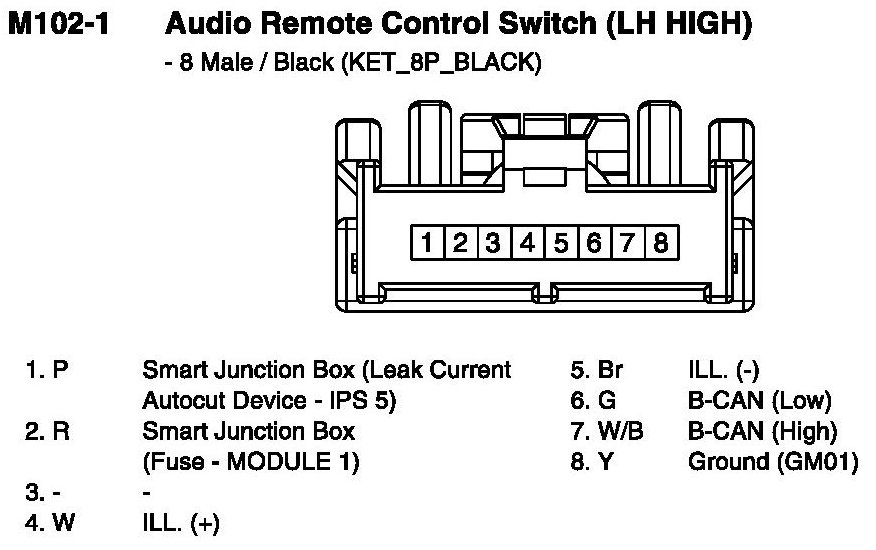

M102-1 Audio Remote Control Switch (LH High):

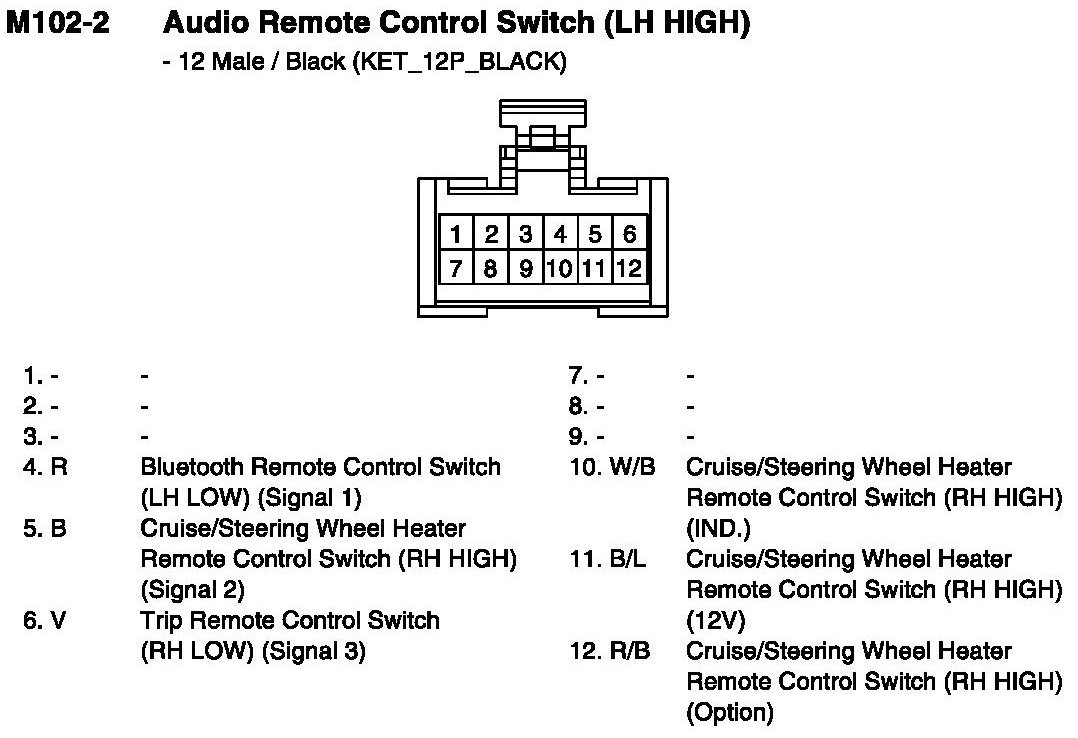

M102-2 Audio Remote Control Switch (LH High):
