Navigation Module

M14-A A/V & Navigation Head Unit:

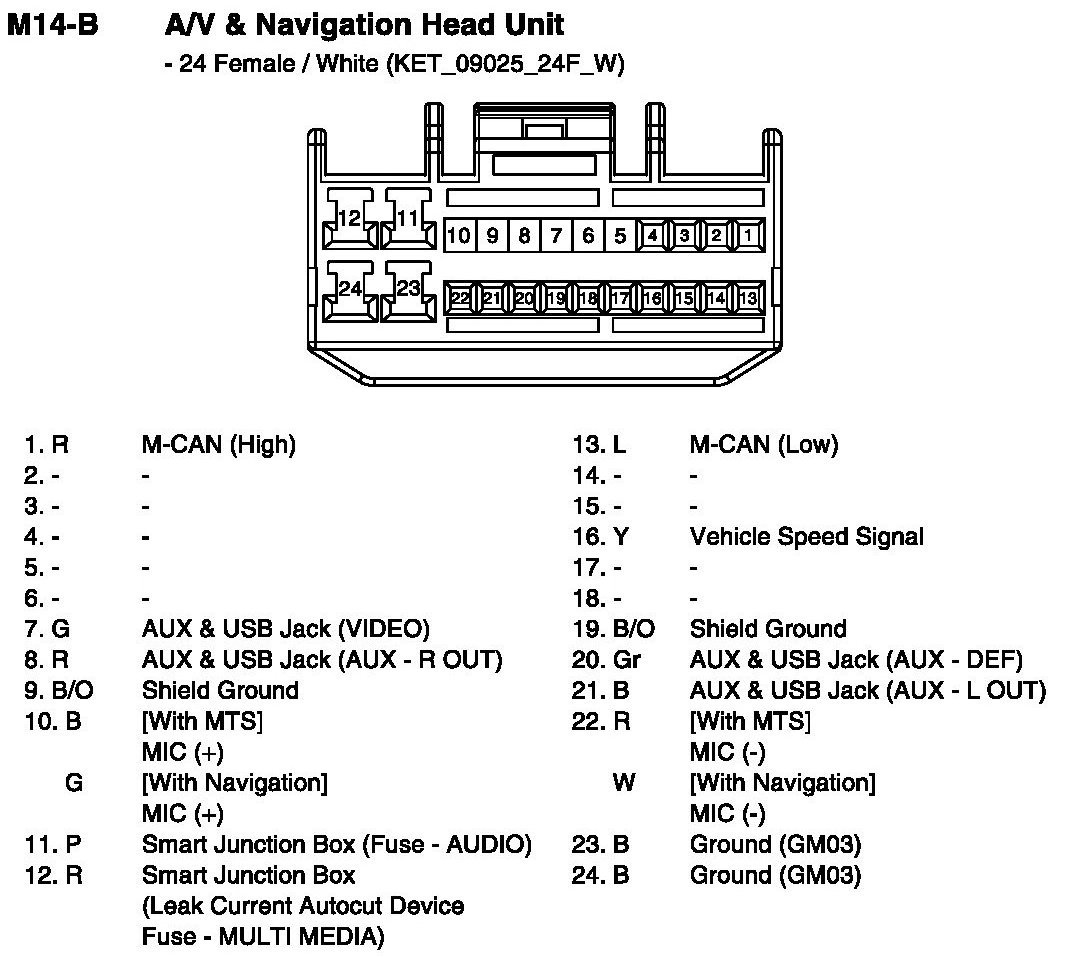

M14-B A/V & Navigation Head Unit:

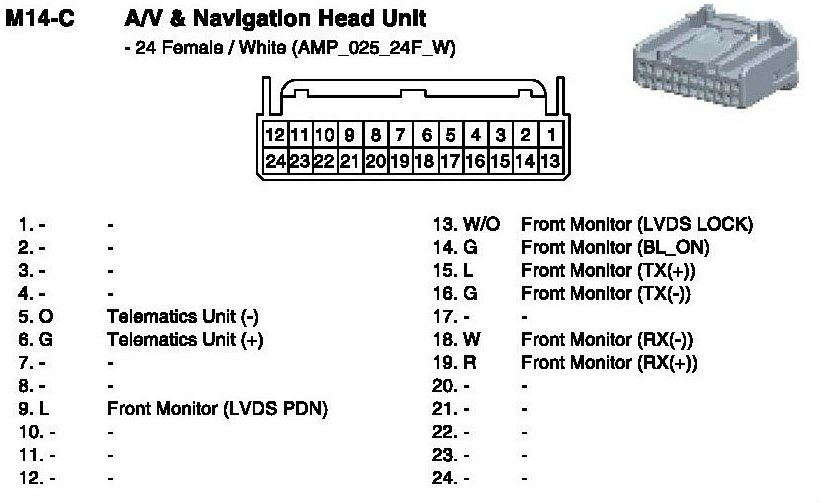

M14-C A/V & Navigation Head Unit:

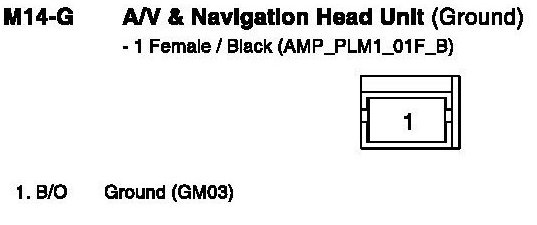

M14-G A/V & Navigation Head Unit (Ground):
