Driver Power Window Switch (1)

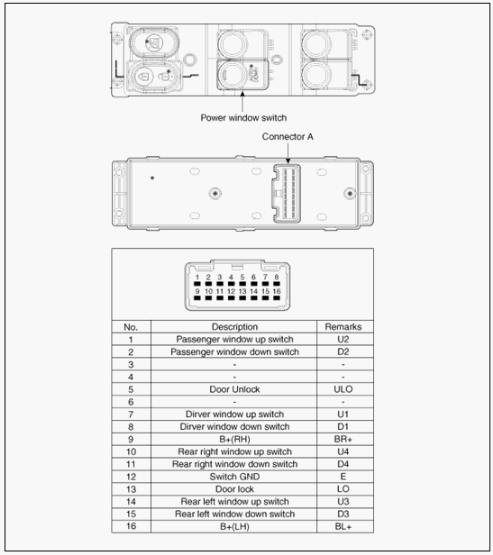

Fig 1: Identifying Driver Power Window Switch (1) Connector Terminals
G08803387Courtesy of HYUNDAI MOTOR AMERICA
