Engine Control Module





ECM Terminal And Input/Output signal

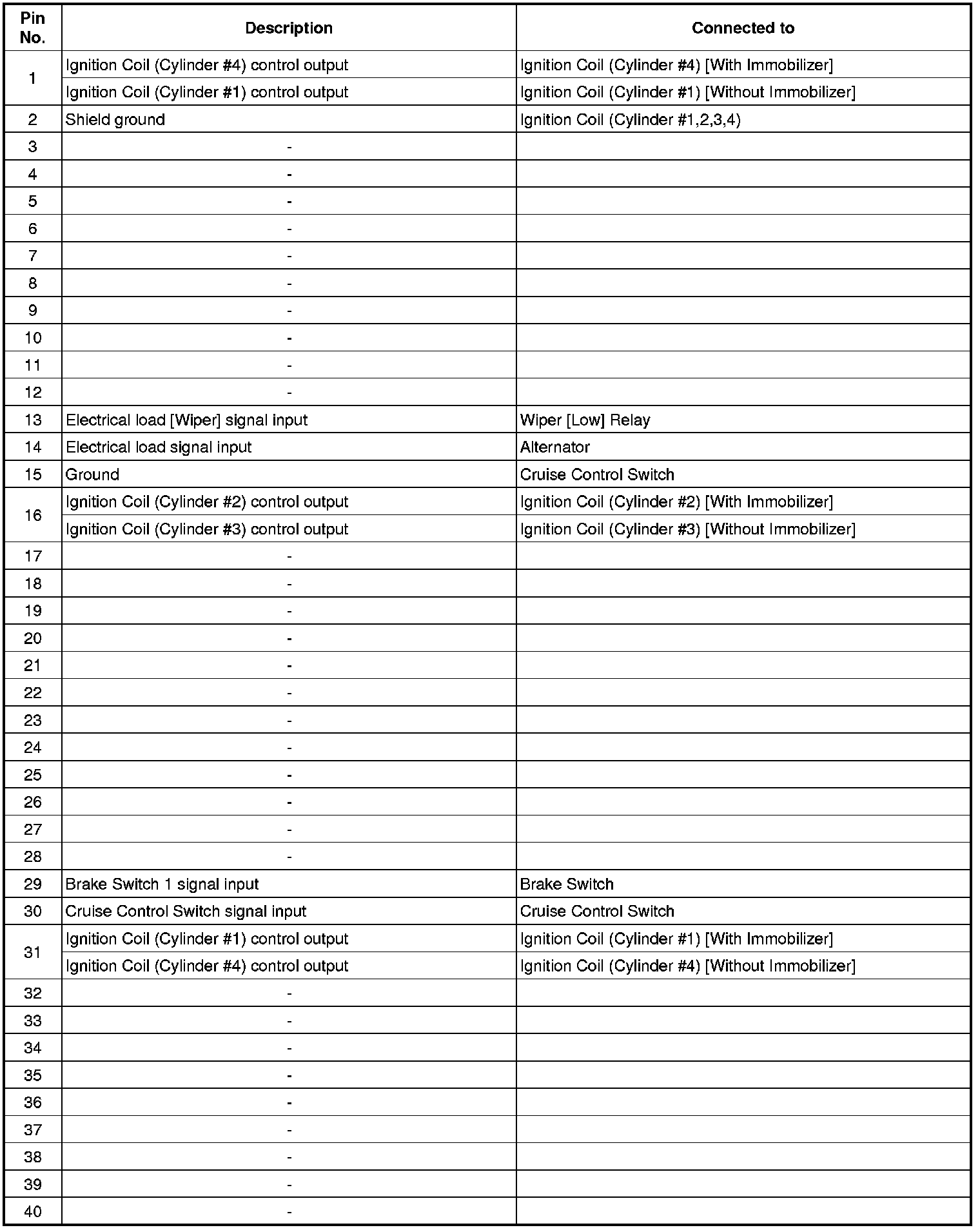

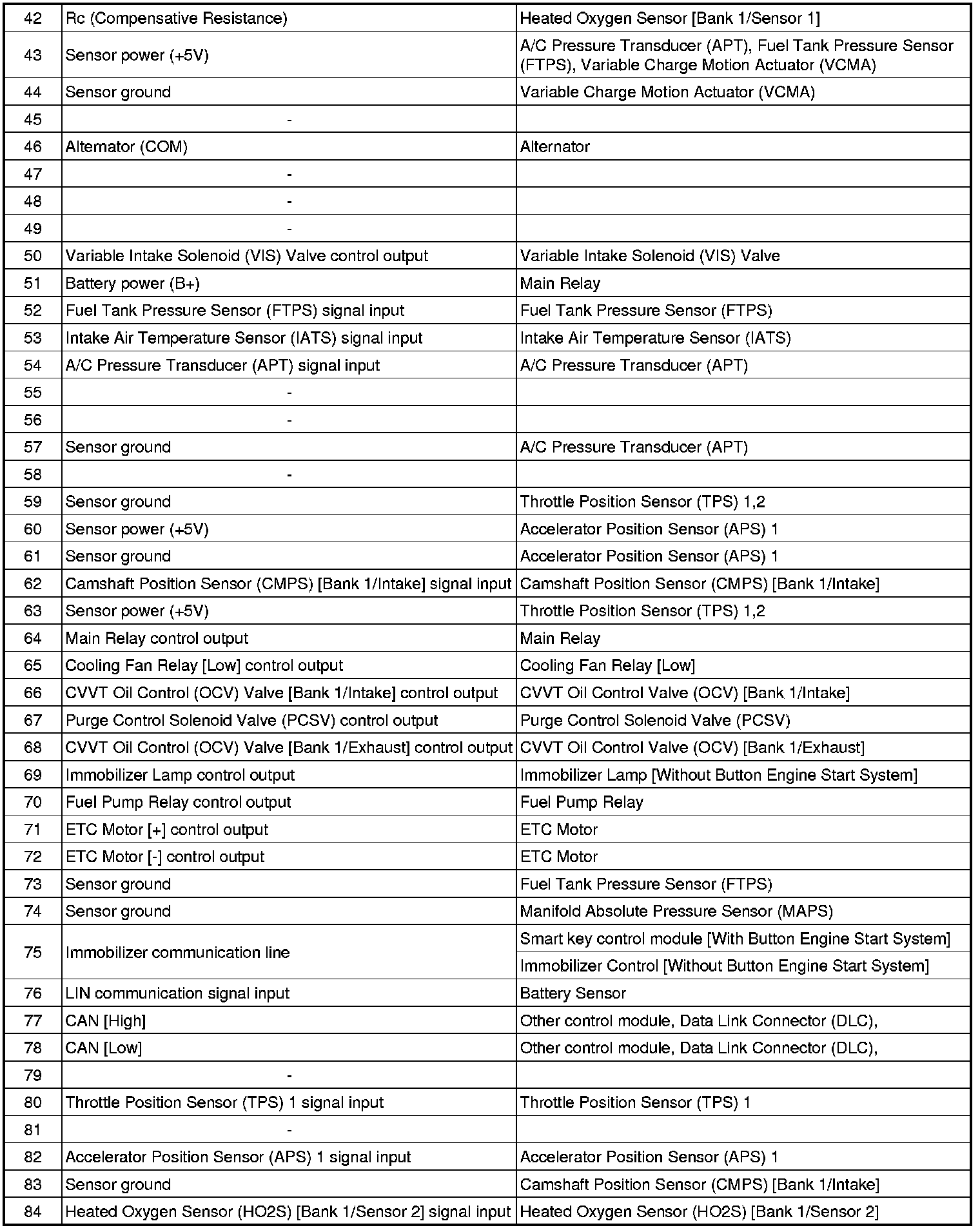

ECM Terminal Function

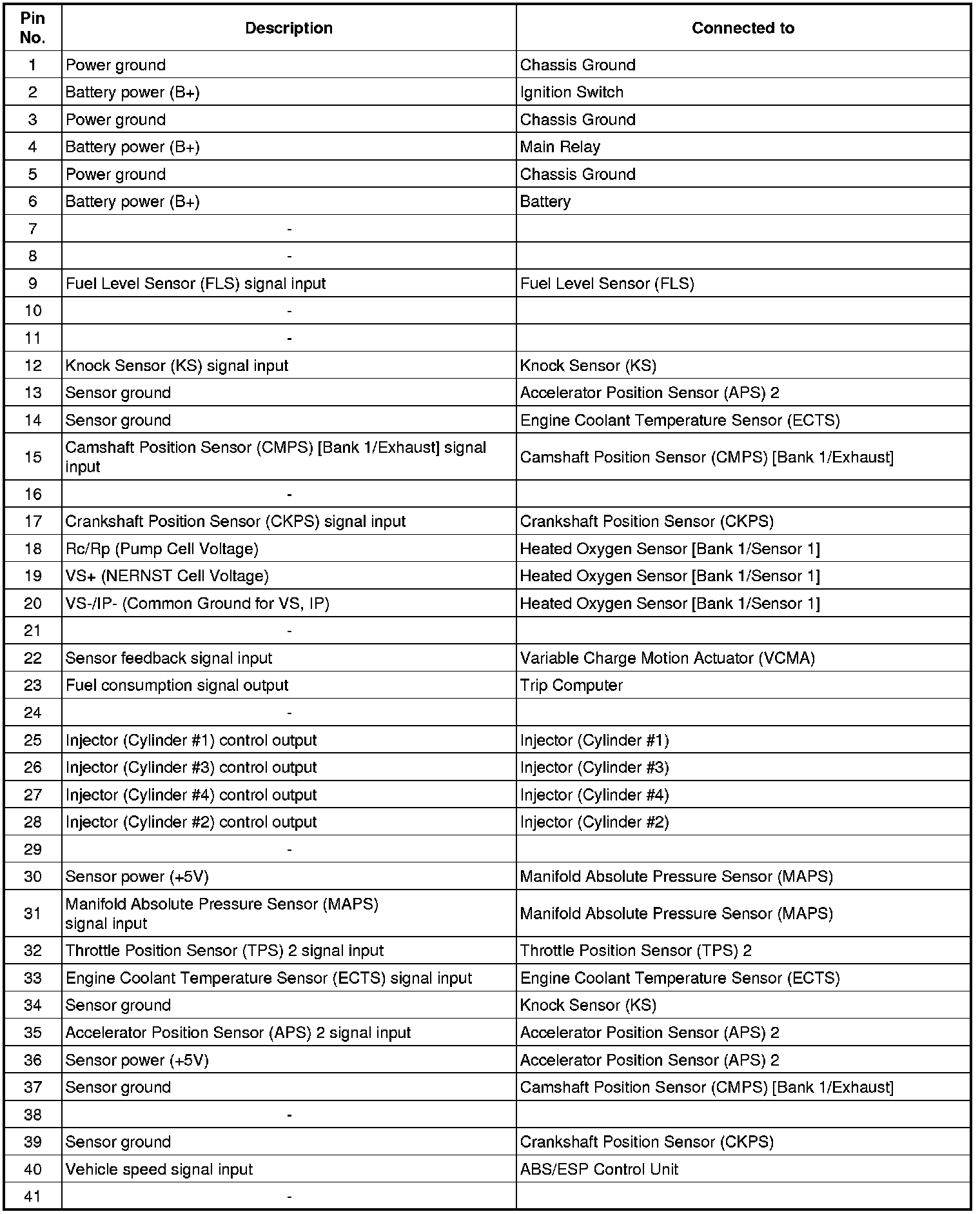

Connector [CHG-A]









Connector [CHG-K]

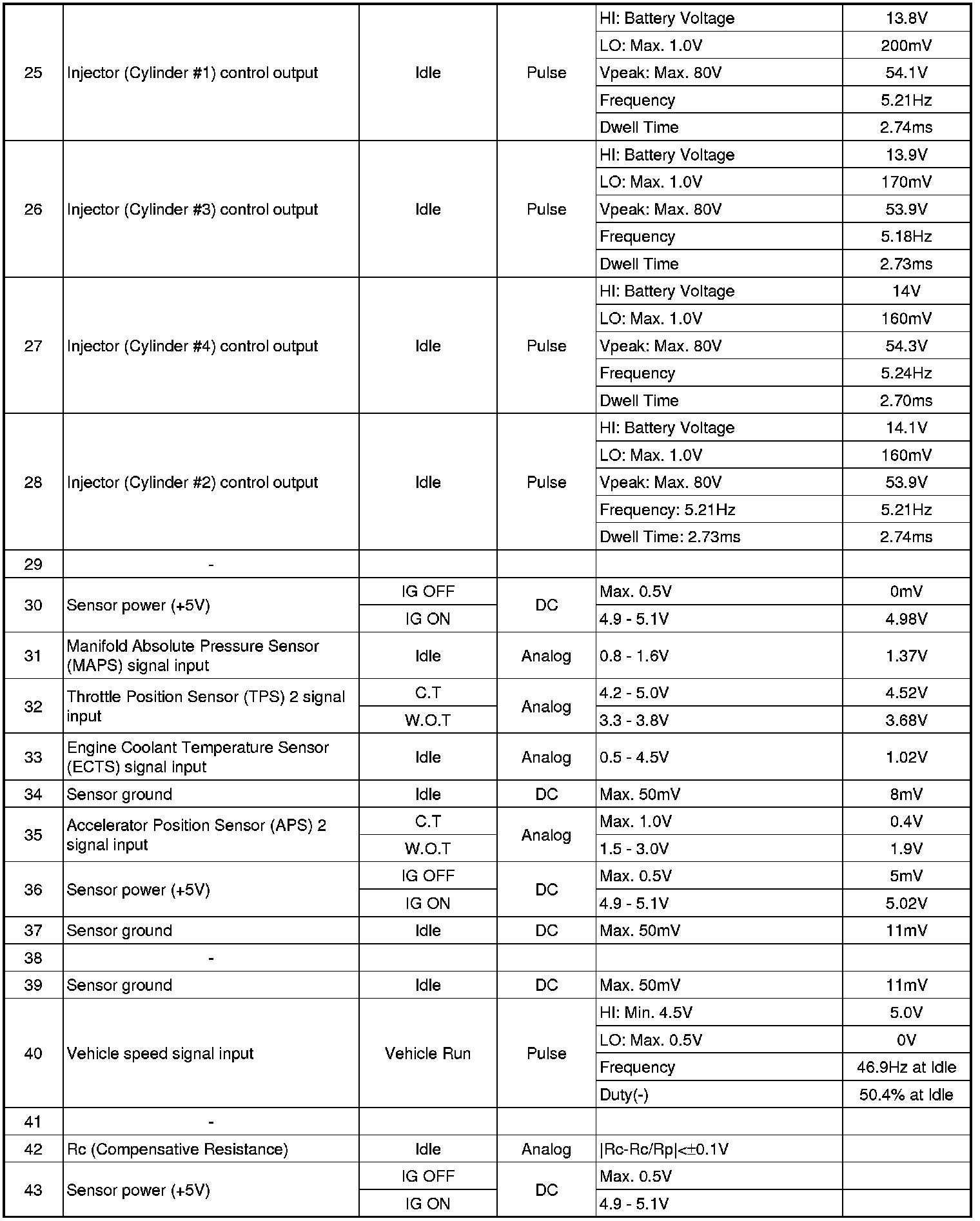

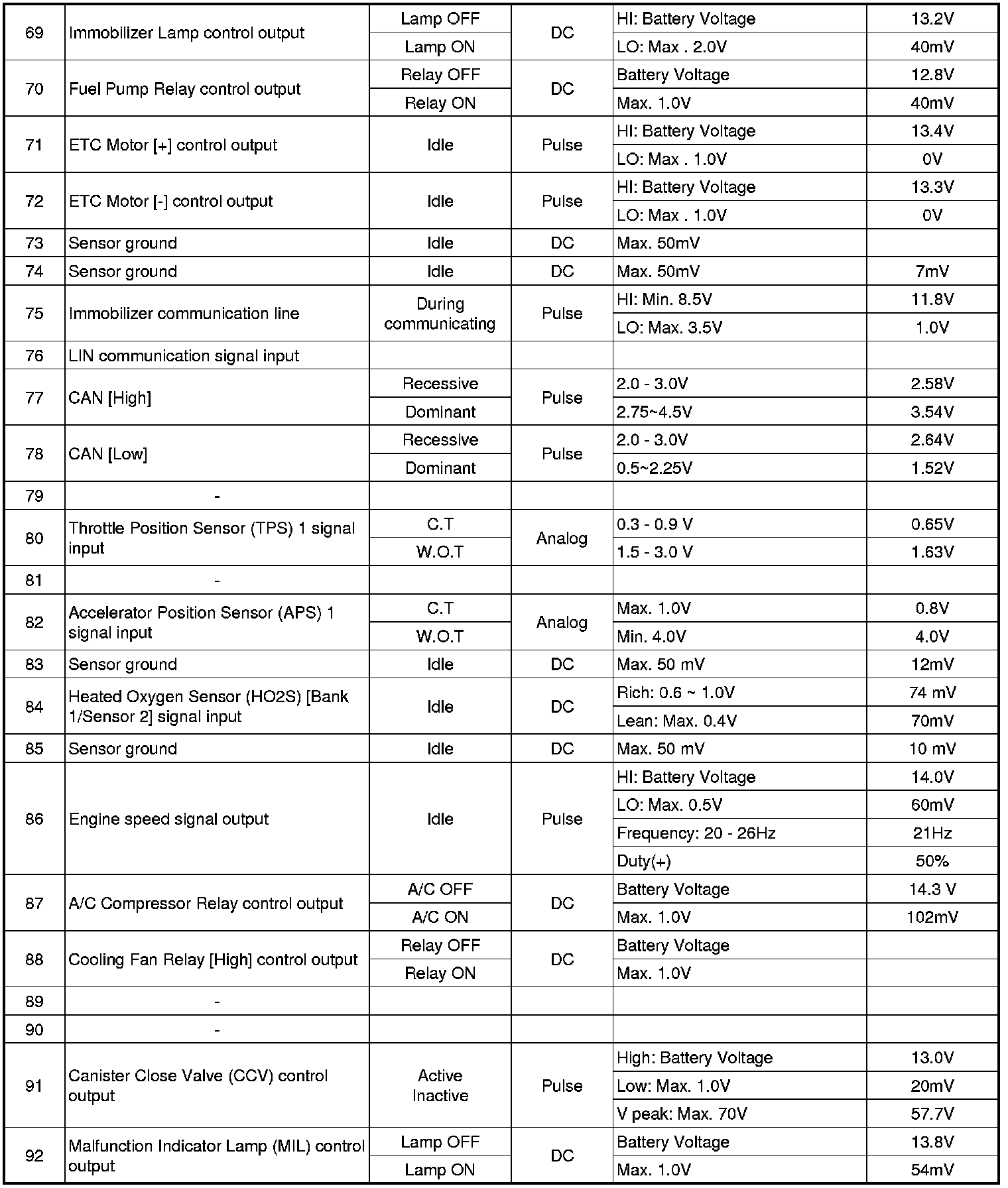

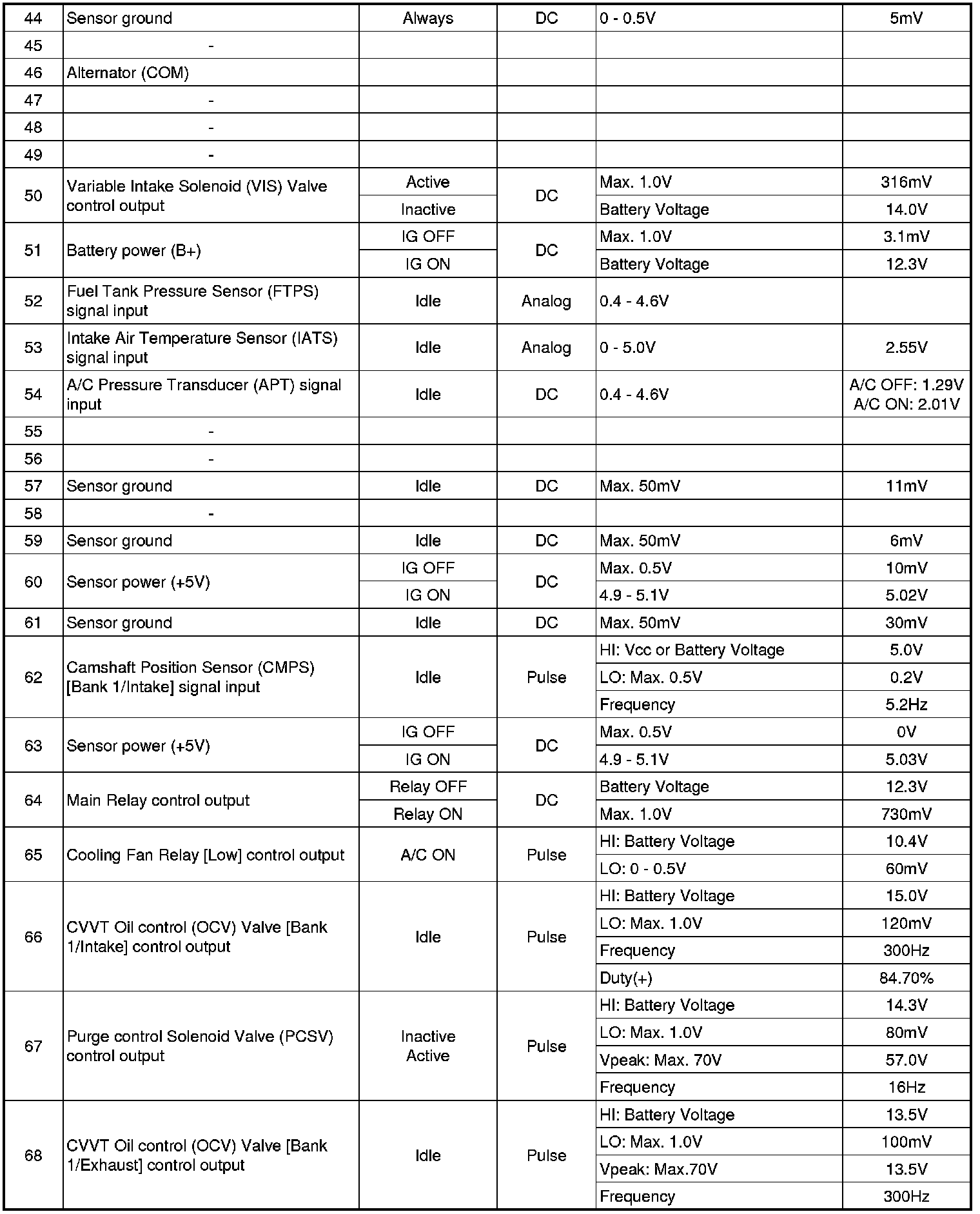

ECM Terminal Input/ Output signal

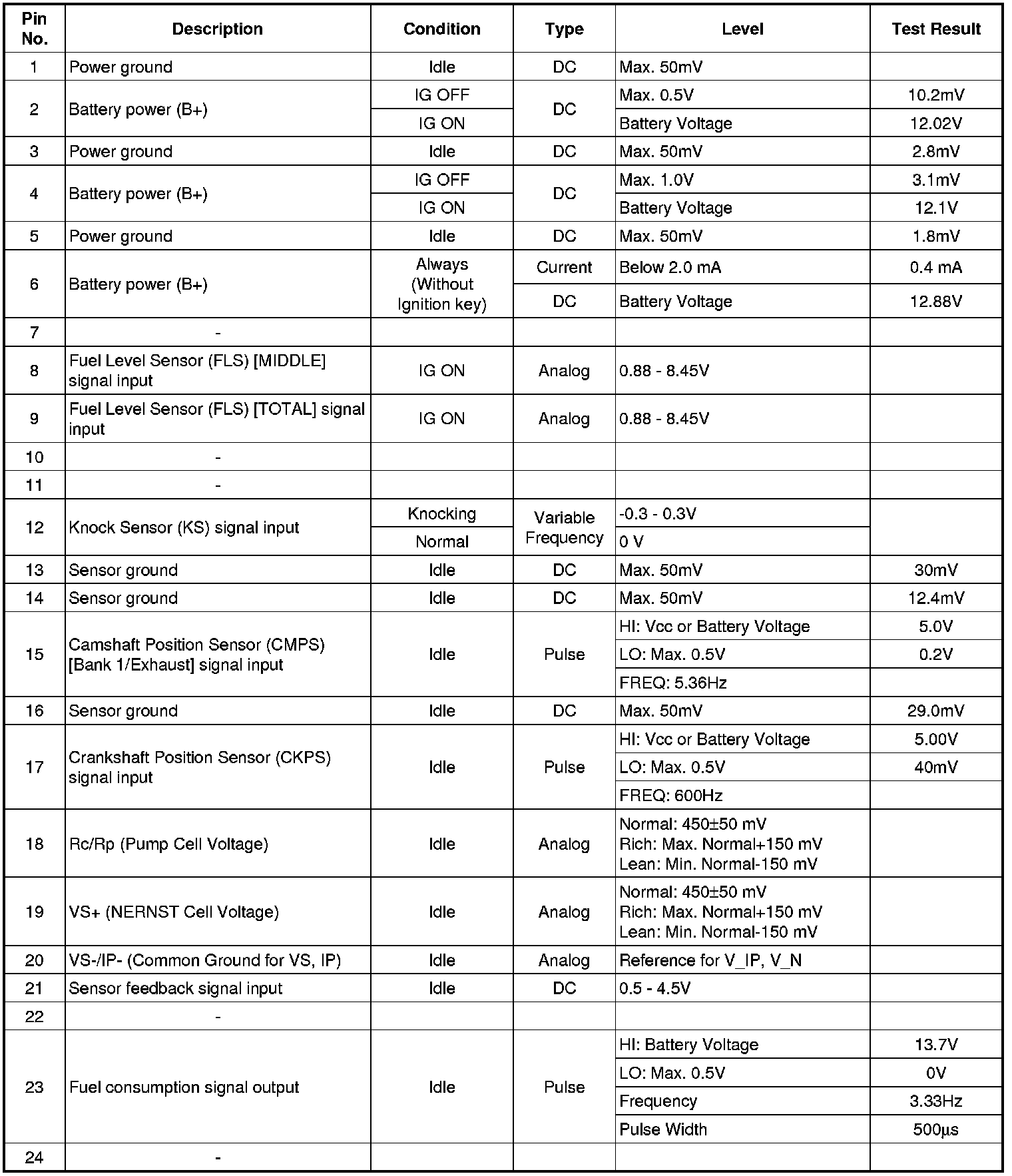

Connector [CHG-A]

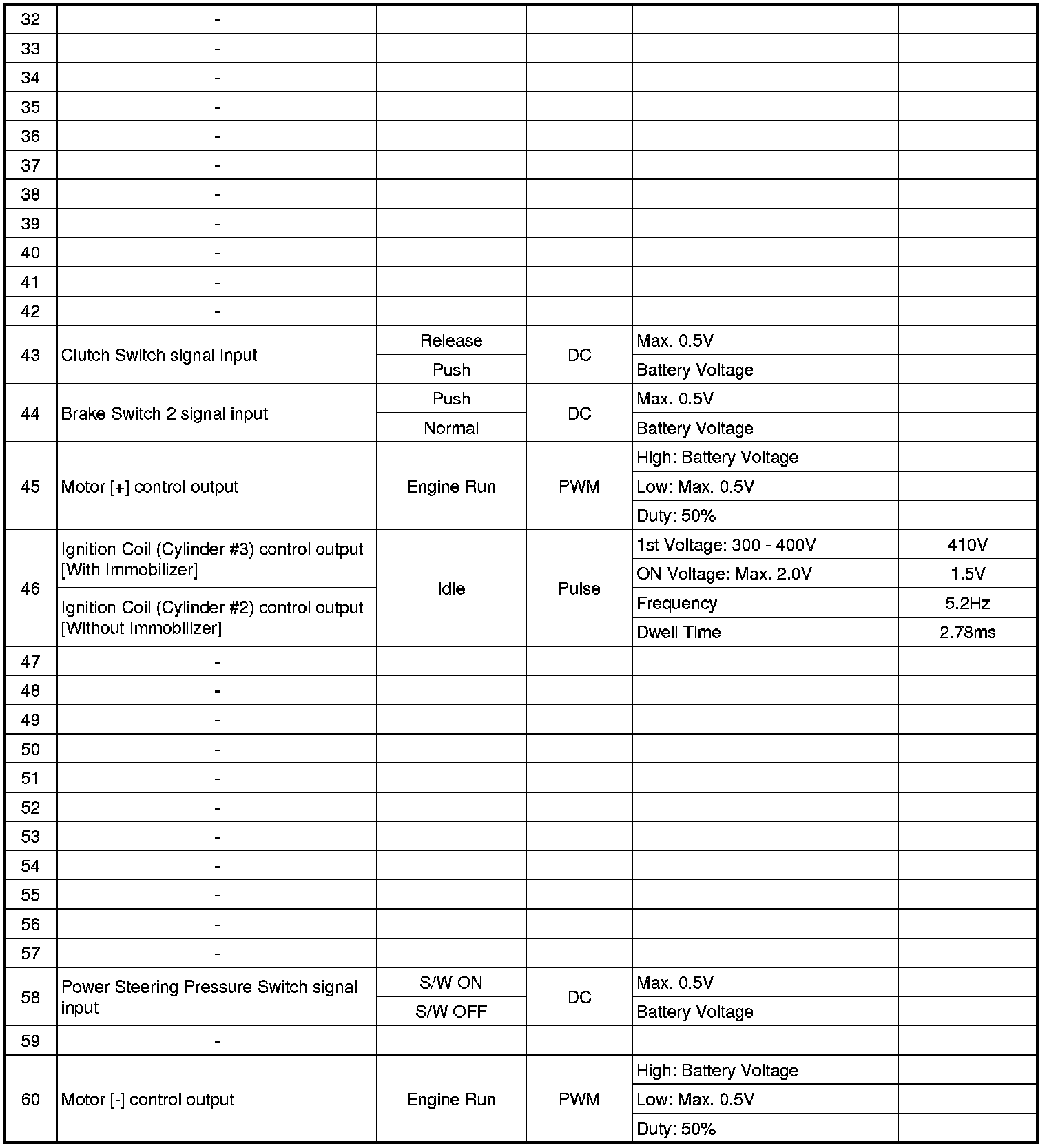

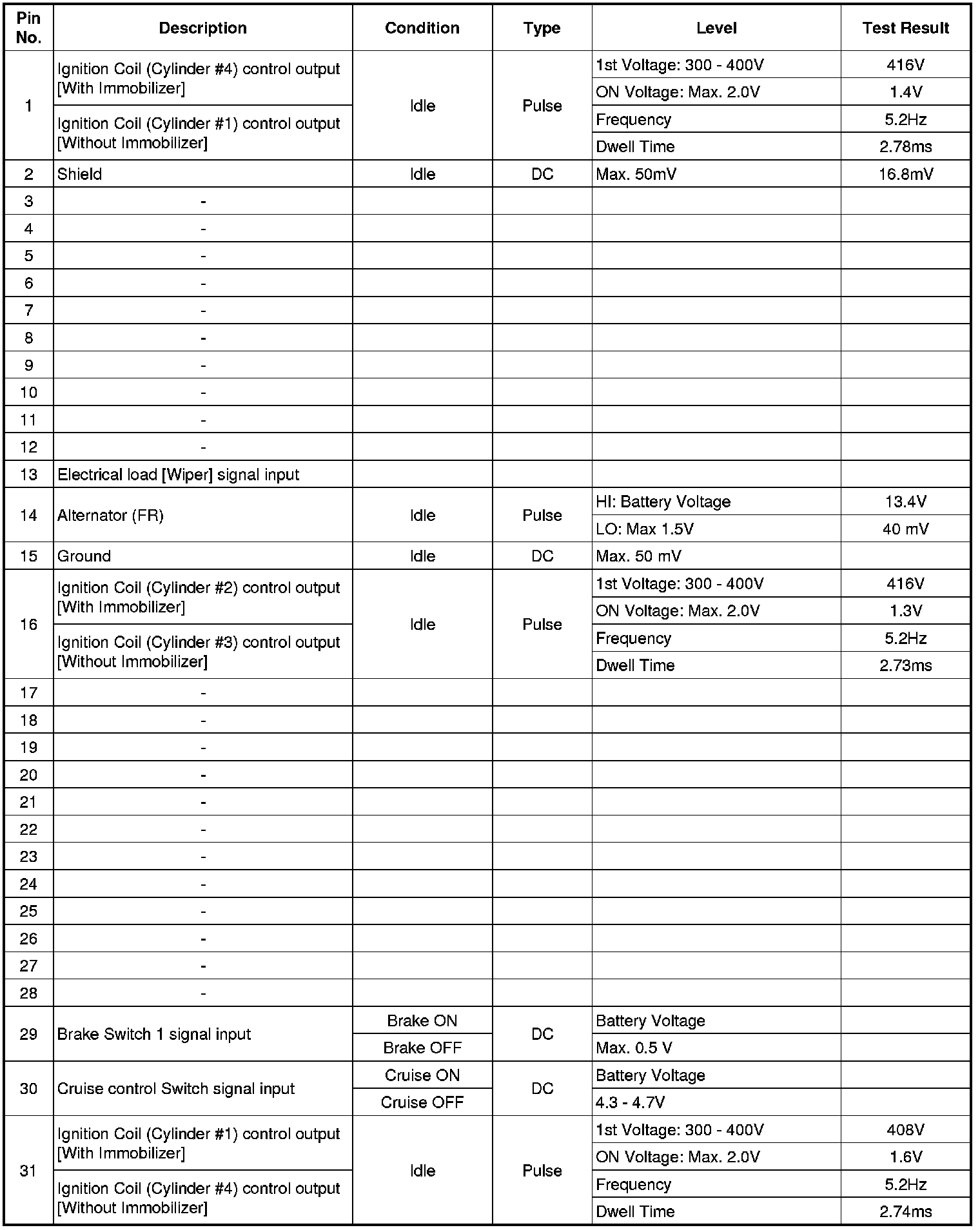

Connector [CHG-K]






















Circuit Diagram
