Ignition Coil: Diagrams

CHG18-1 Ignition Coil #1:

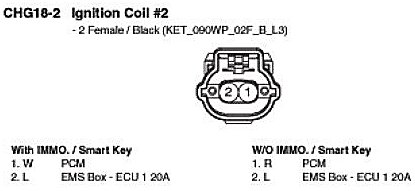

CHG18-2 Ignition Coil #2:

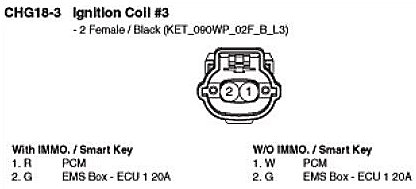

CHG18-3 Ignition Coil #3:

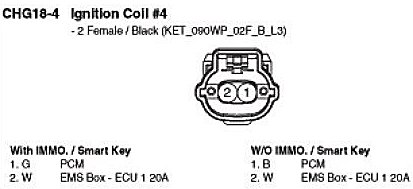

CHG18-4 Ignition Coil #4:
