Repair Procedures





Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the floor console.

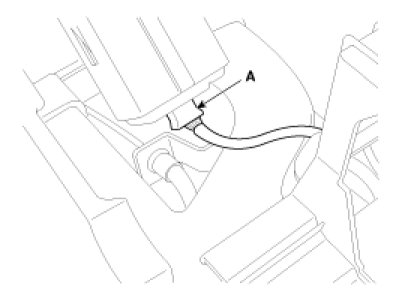

3. Disconnect the fob holder connector (A).

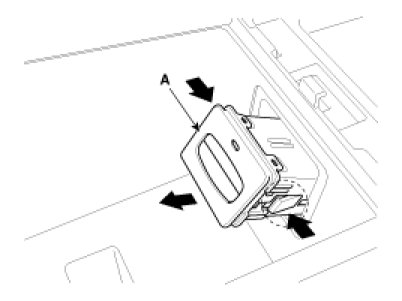

4. Remove the fob holder (A) by pushing both sides of the hooks.






Installation

1. Install the fob holder.
2. Install the floor console.
