Ignition Relay: Locations

Fuel & Relay Information

E/R Fuse & Relay Box View:




E/R Fuse & Relay Box Circuit Details:




E/R Fuse & Relay Box View:

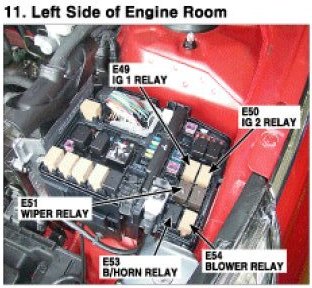

Photo 11
