Navigation Module

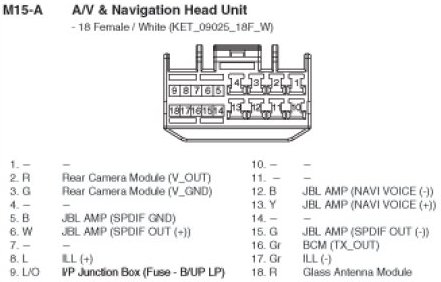

M15-A A/V & Navigation Head Unit:

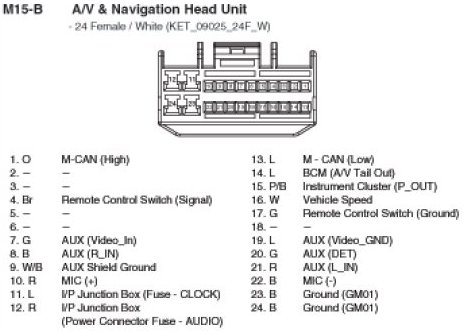

M15-B A/V Navigation Head Unit:
M15-G A/V Navigation Head Unit (GND):
