Repair procedures: Removal

Remove the console upper cover. (Refer to CONSOLE .)
Remove the front console assembly. (Refer to CONSOLE .)
Remove the snap pin (A) and the clips (B).

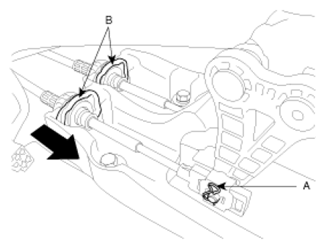

Fig 1: Removing Snap Pin And Clips
Courtesy of HYUNDAI MOTOR CO.
Remove the clip (A) from the shift cable.

Fig 2: Identifying Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A).
Tightening torque :

8.8~13.7N.m (0.9~1.4kgf.m, 6.5~10.1lb-ft)

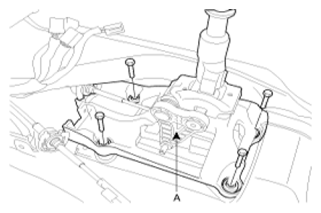

Fig 3: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and the nuts (B).
Tightening torque :

8.8~13.7N.m (0.9~1.4kgf.m, 6.5~10.1lb-ft)

Fig 4: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.
