Campaign 926 - Front Coil Spring Protector Installation

NUMBER
11-01-020

GROUP
CAMPAIGN

DATE
JUNE. 2011

MODEL
SANTA FE (CM)

SUBJECT
INTERMEDIATE SHAFT REPLACEMENT (CAMPAIGN 102)

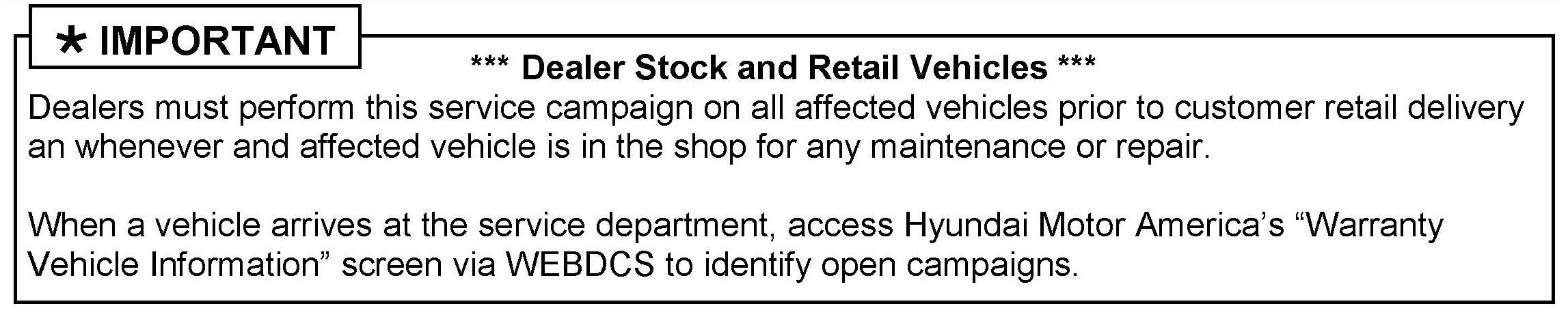

Important





DESCRIPTION:

This bulletin provides a procedure to replace the intermediate shaft on some 2010 Santa Fe (CM) 2.4L 2WD vehicles with automatic transmissions.

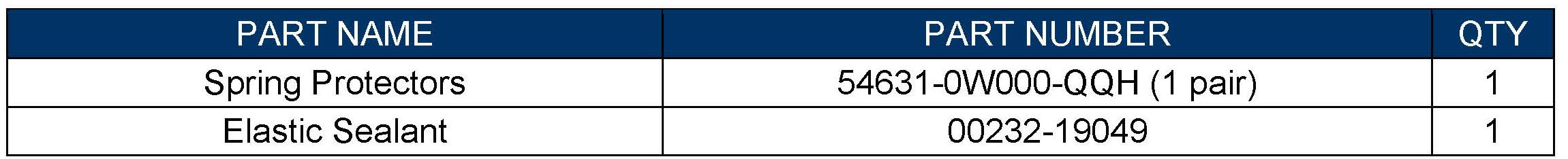

Parts Information:

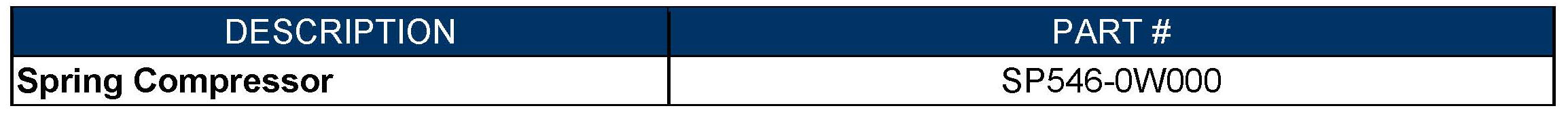

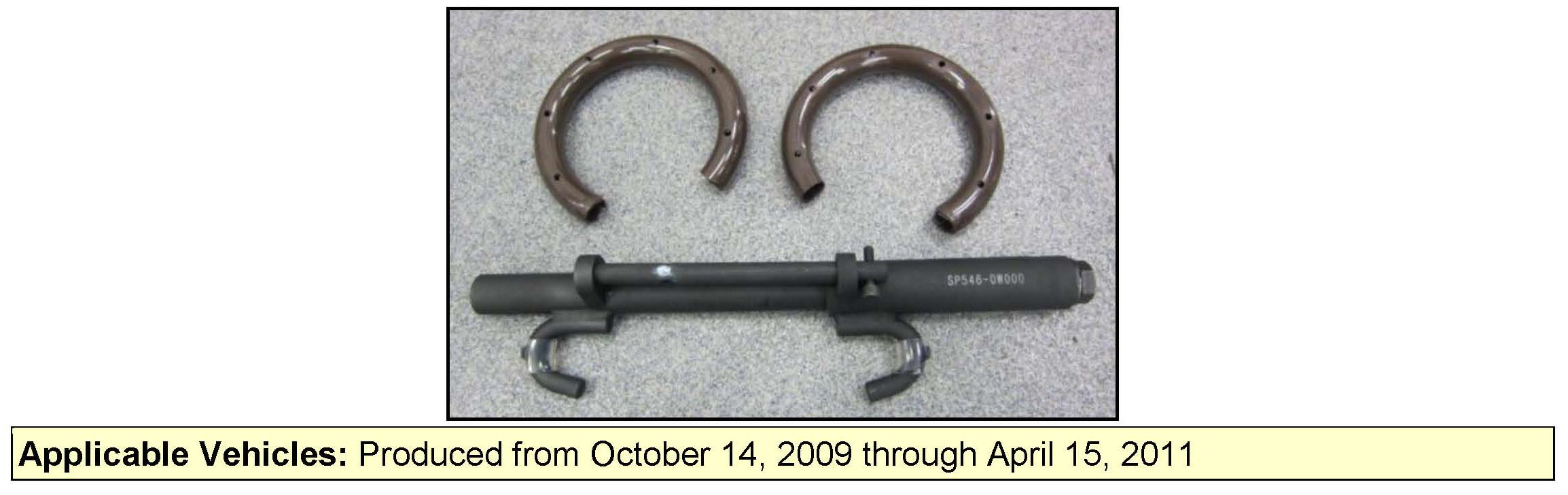

SST Information

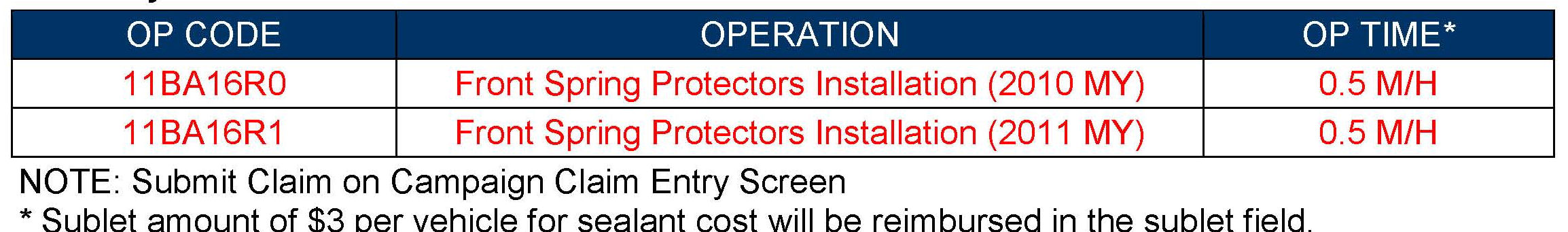

Warranty Information:

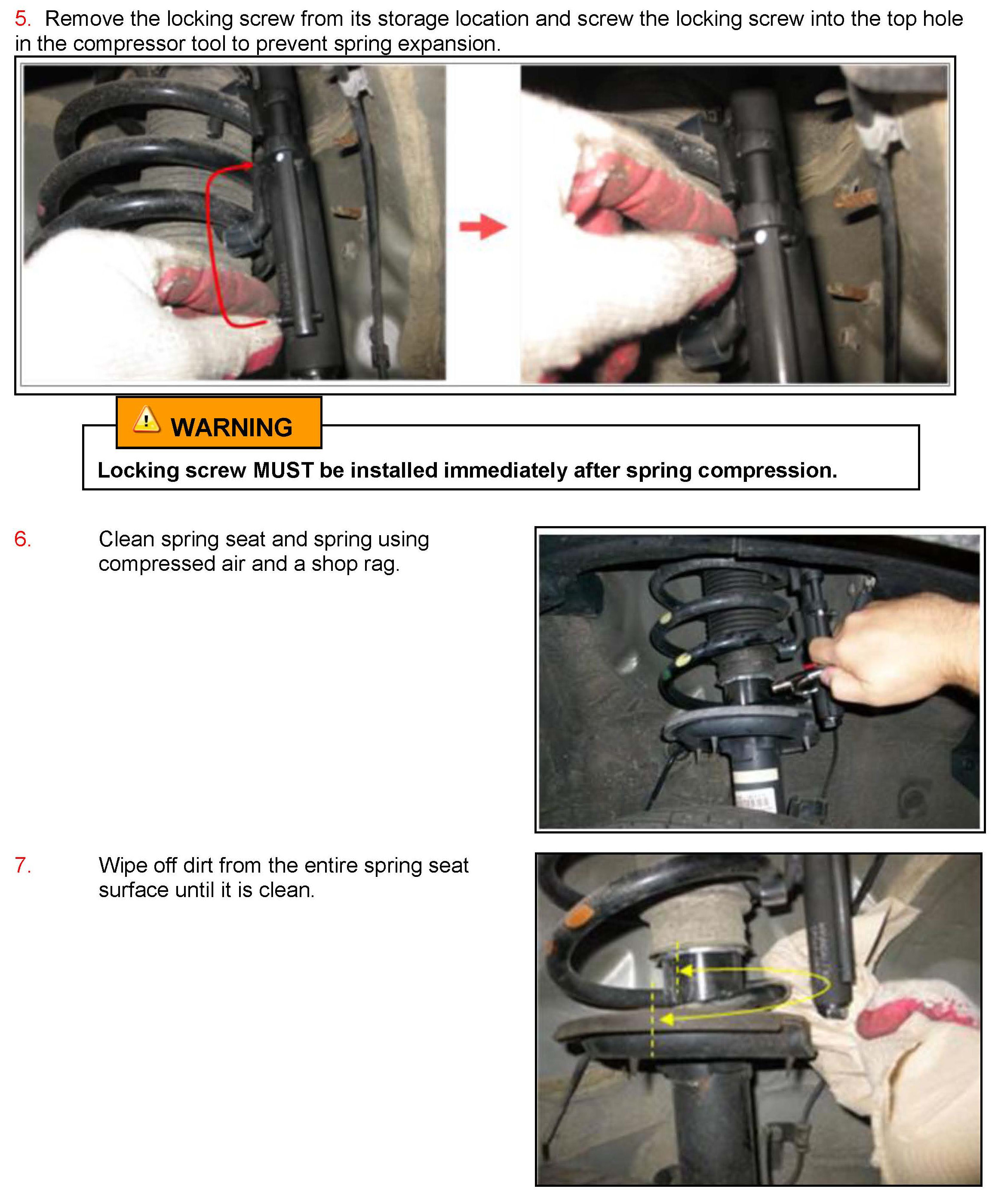

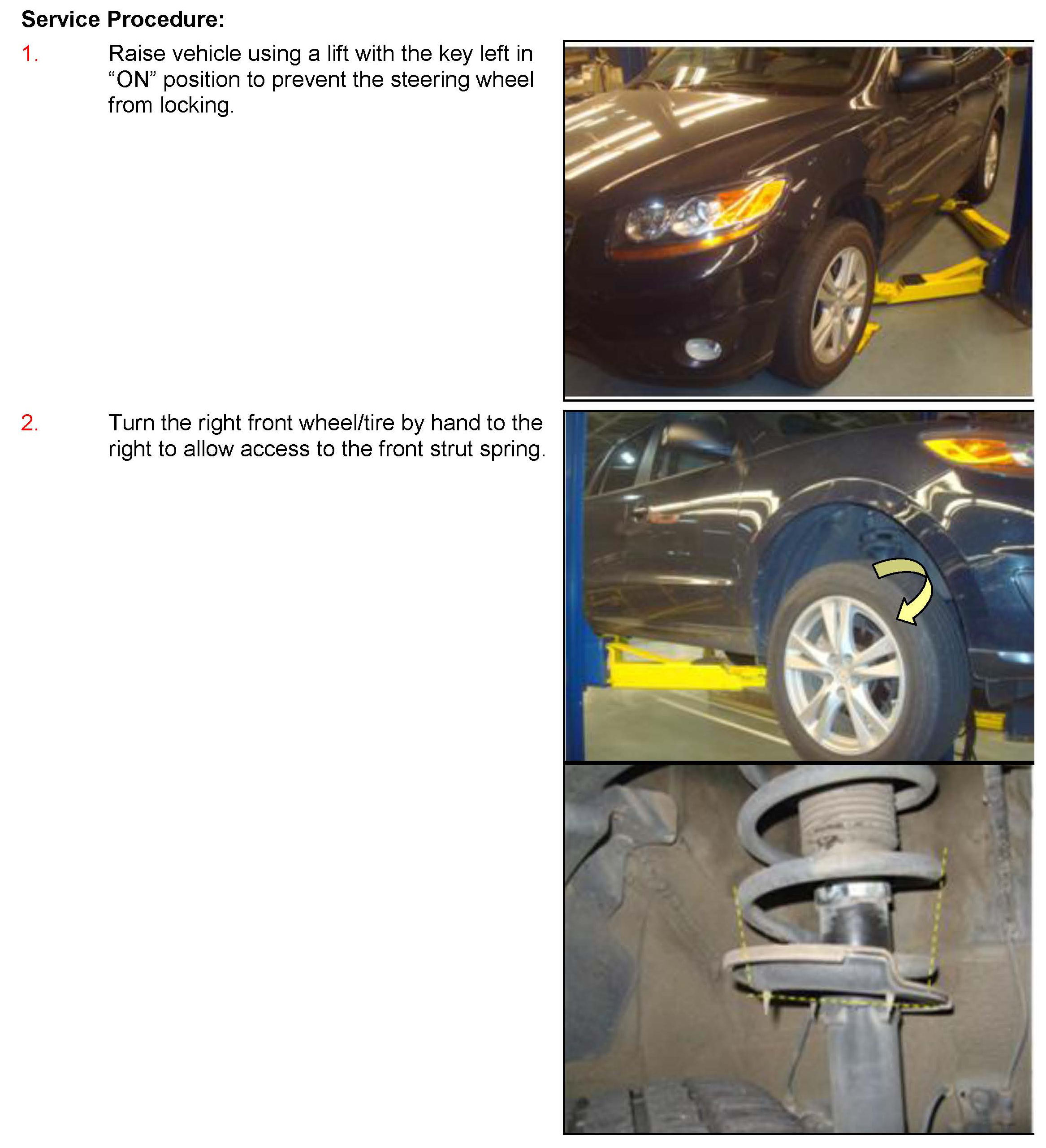

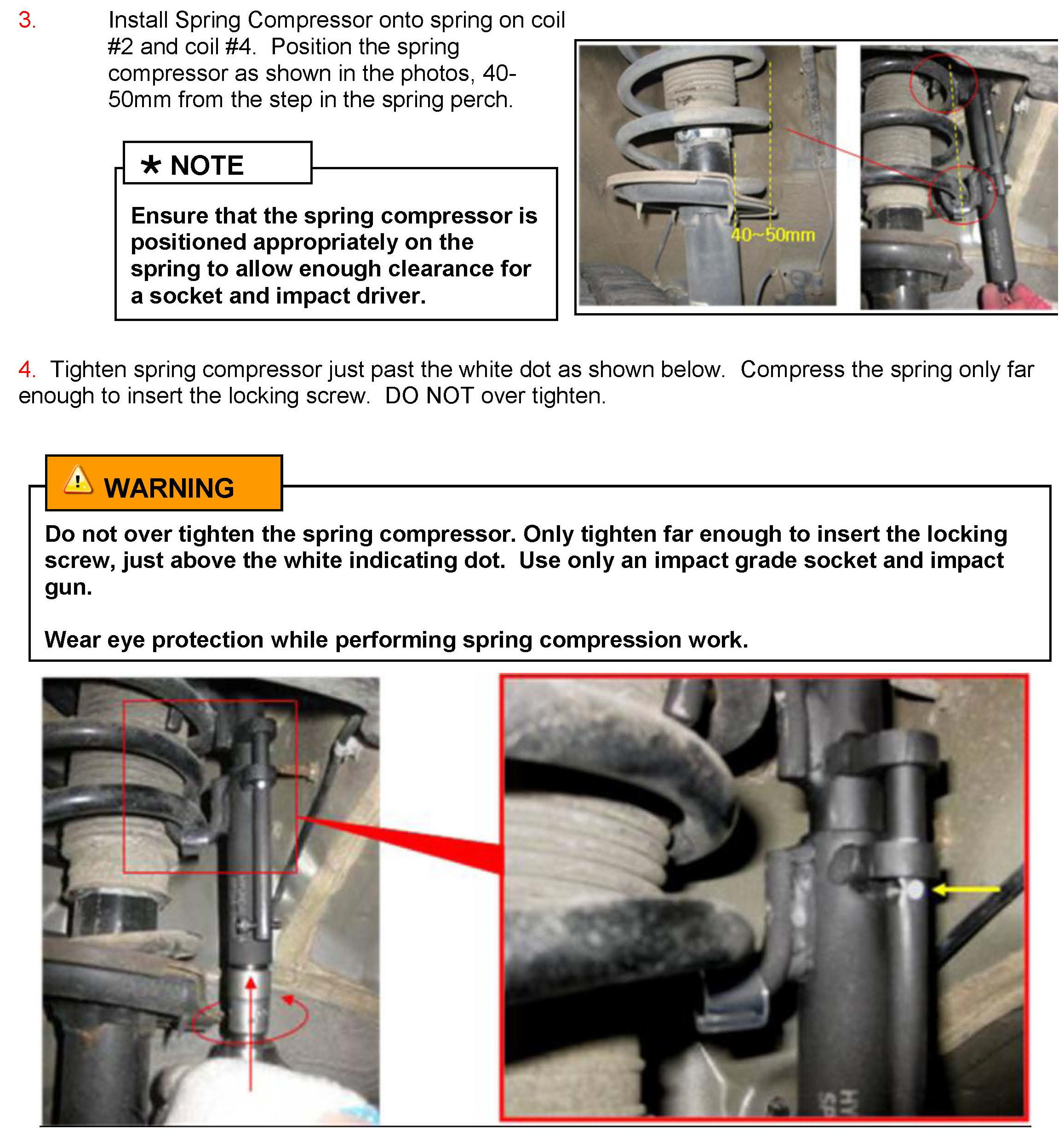

Service Procedure:
