Engine Control System (Fuel System (G8BA - GSL 4.6L))
>>
Mass Air Flow Sensor (MAFS)
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

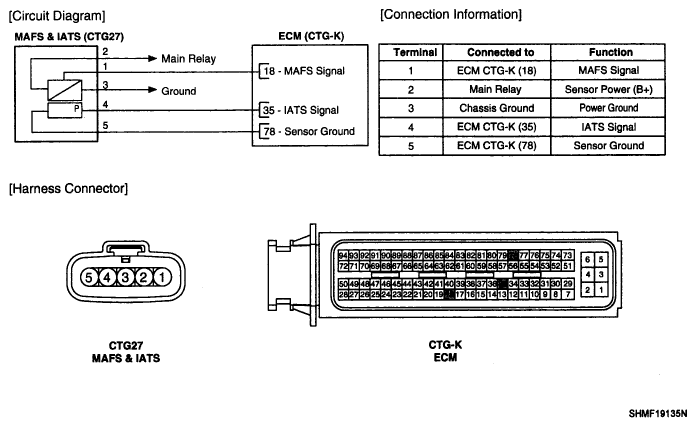

Fig 1: Mass Air Flow Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
