Circuit Diagram (2)

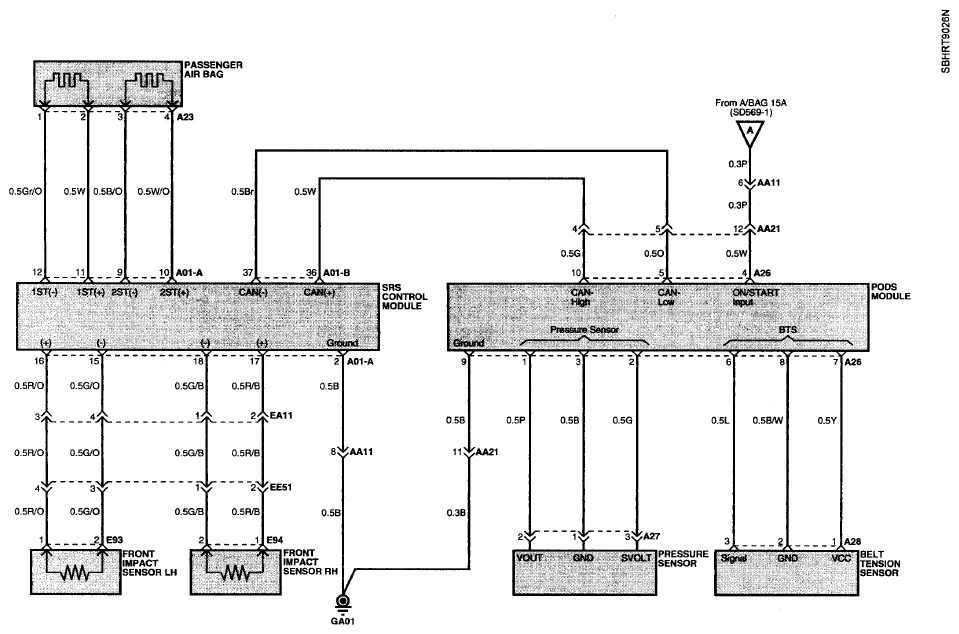

Fig 1: SRSCM - Circuit Diagram (2 Of 3)

G06100972

Courtesy of HYUNDAI MOTOR CO.
