Home
>>
Hyundai
>>
2011
>>
Equus V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Multiple Junction Connector

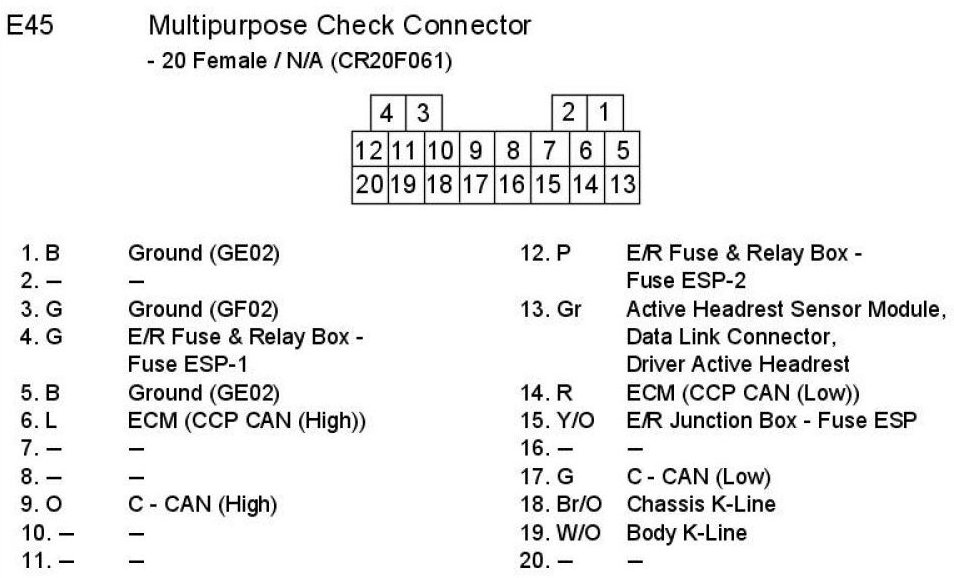

E45 Multipurpose Check Connector:
