ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

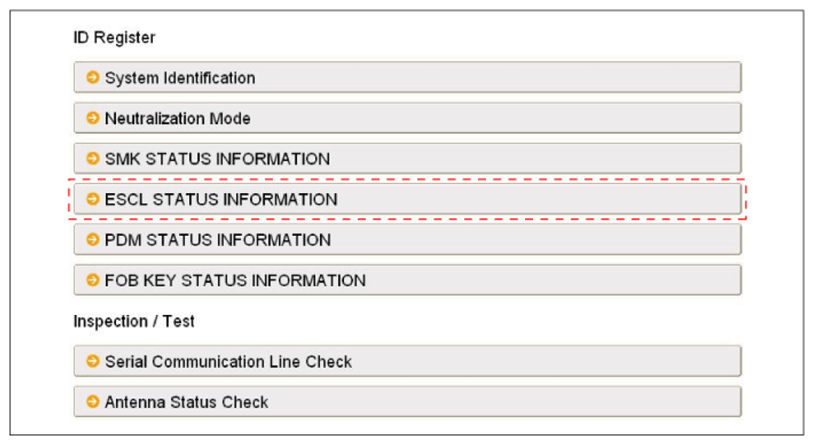

    Fig 1: Selecting ESCL Status Info
    G07312638Courtesy of HYUNDAI MOTOR CO.

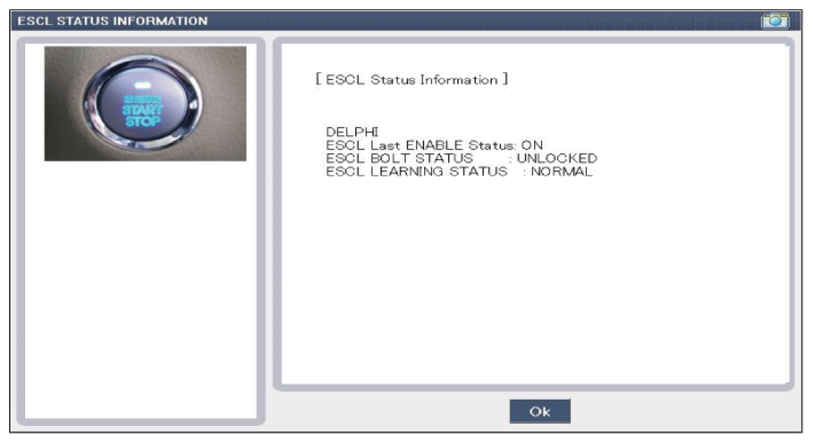

    Fig 2: Display ESCL Status Information Screen
    G07312639Courtesy of HYUNDAI MOTOR CO.
