Components and Components Location
>>
Components (1)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Components (1)

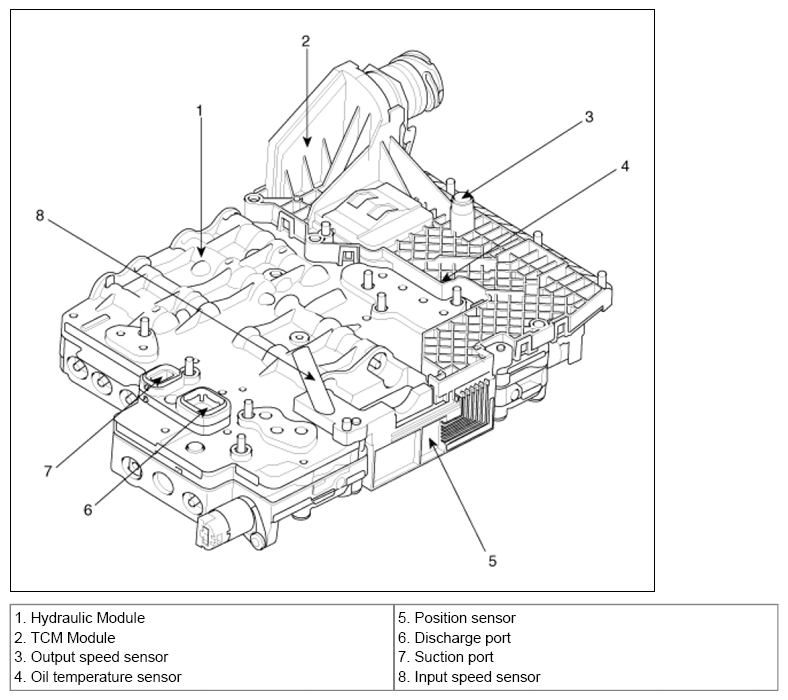

Fig 1: Automatic Transmission System Components Location (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
