Control Circuit Inspection
- With ignition OFF, disconnect alternator connector, and ECM connector.

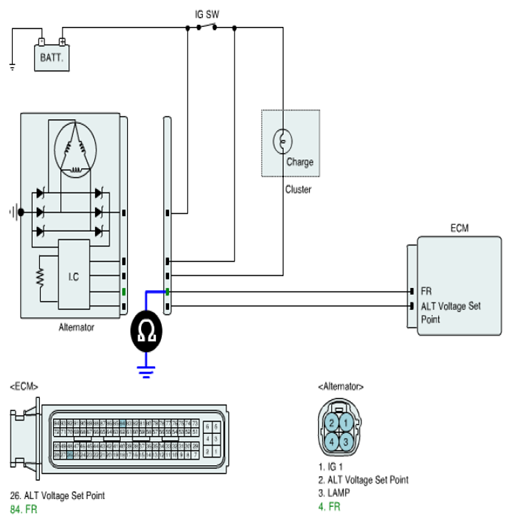

- Measure the resistance between FR terminal of the alternator harness connector and chassis ground.
Specification: Infinite
- Is the measured resistance within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
