Components And Components Location: Components

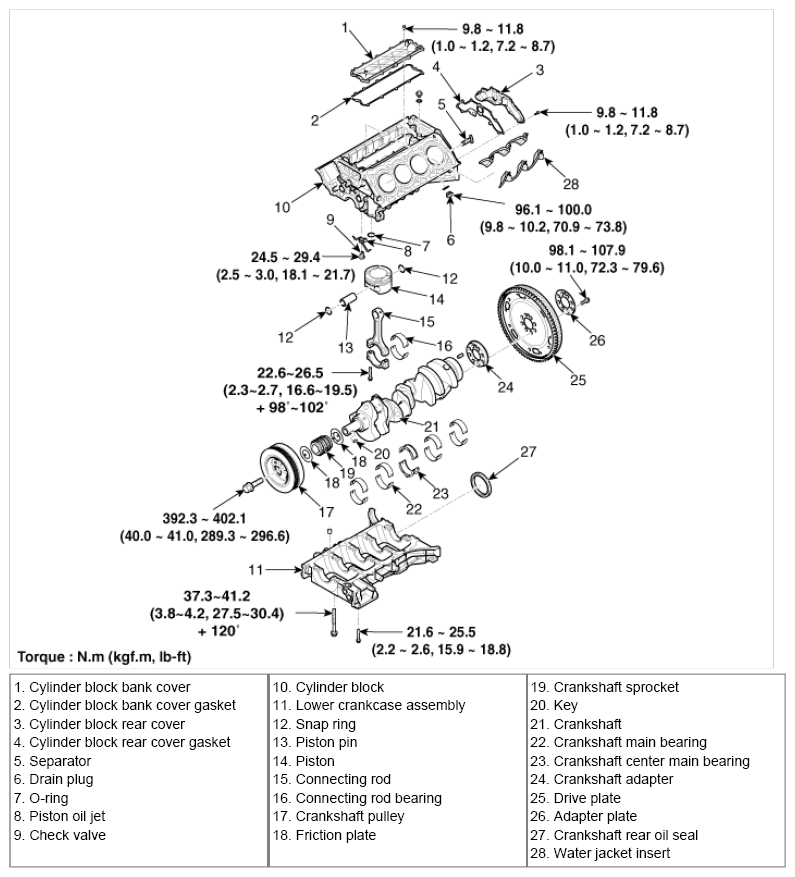

Fig 1: Exploded View Of Cylinder Block With Torque Specifications
G07308832Courtesy of HYUNDAI MOTOR CO.
