Exhaust Manifold

Exhaust Manifold

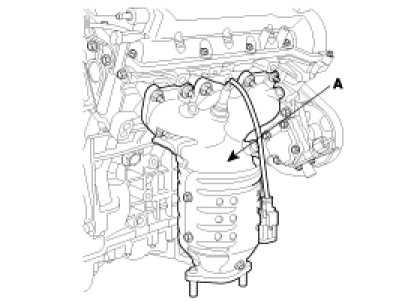

Remove the LH exhaust manifold (A).

Tightening torque 39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb-ft)
