Fuse: Locations

Fuse & Relay Information

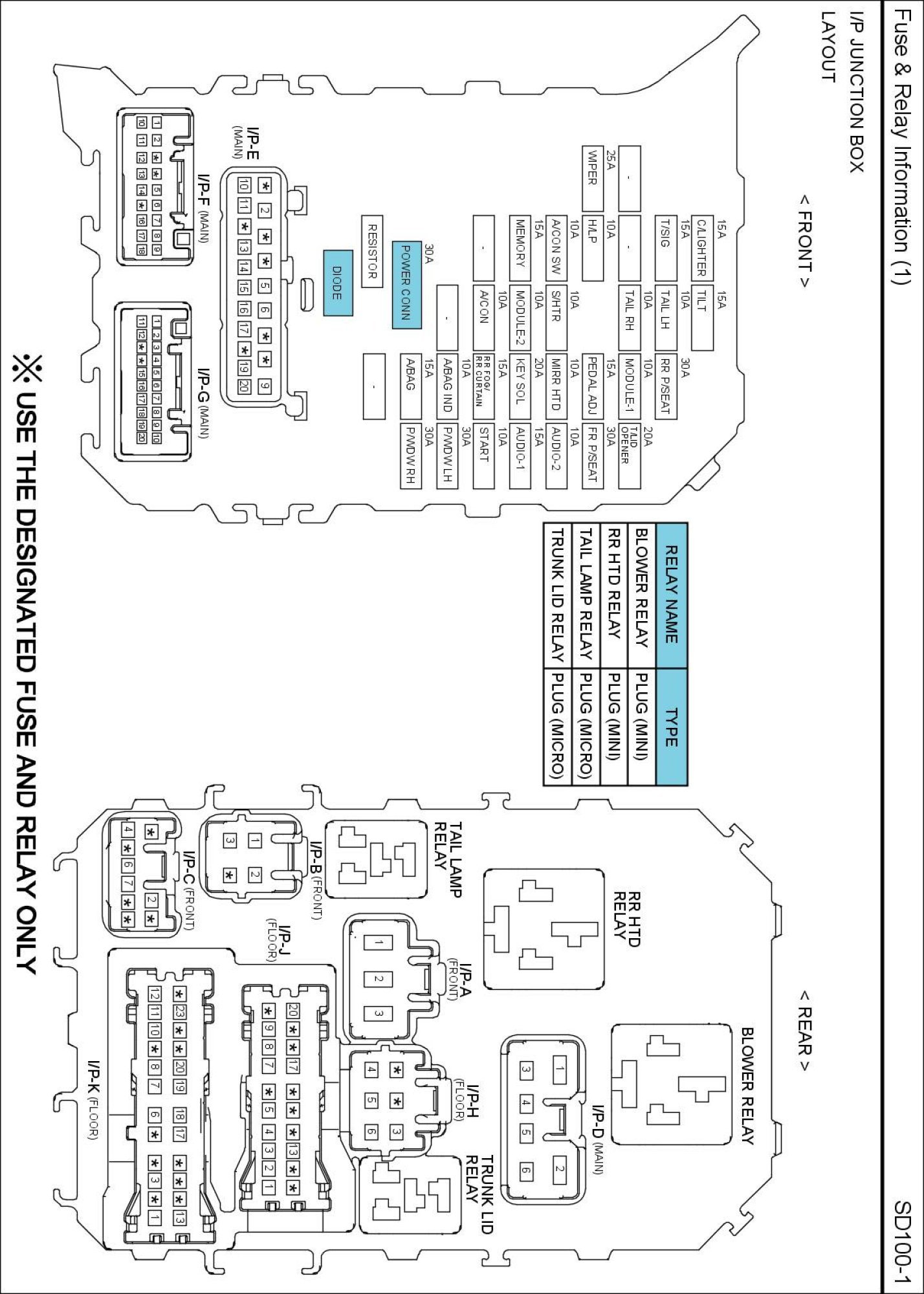

I/P Junction Box View:

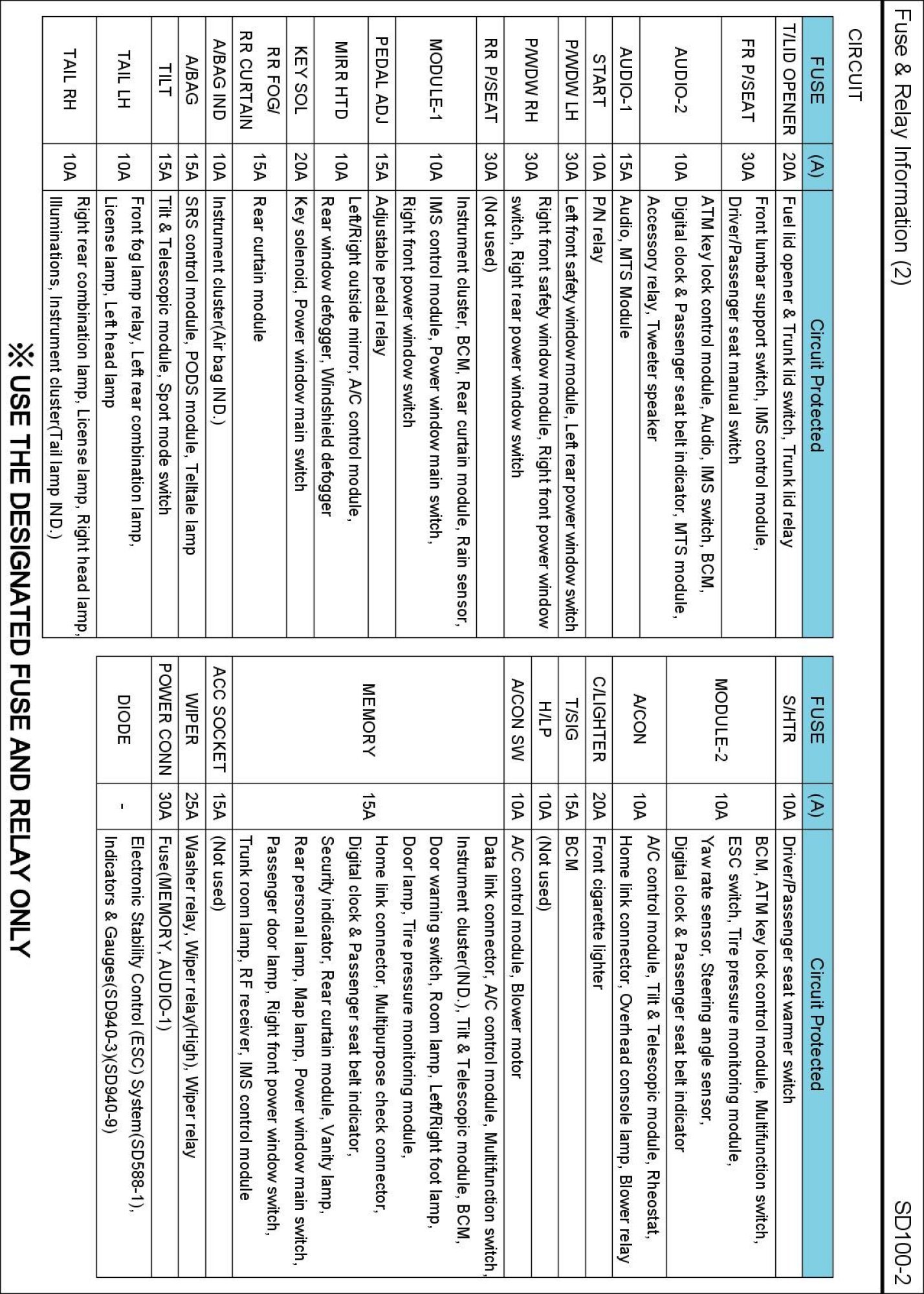

I/P Junction Box Circuit Details:

Fuse: Locations

I/P Junction Box View:

I/P Junction Box Circuit Details:

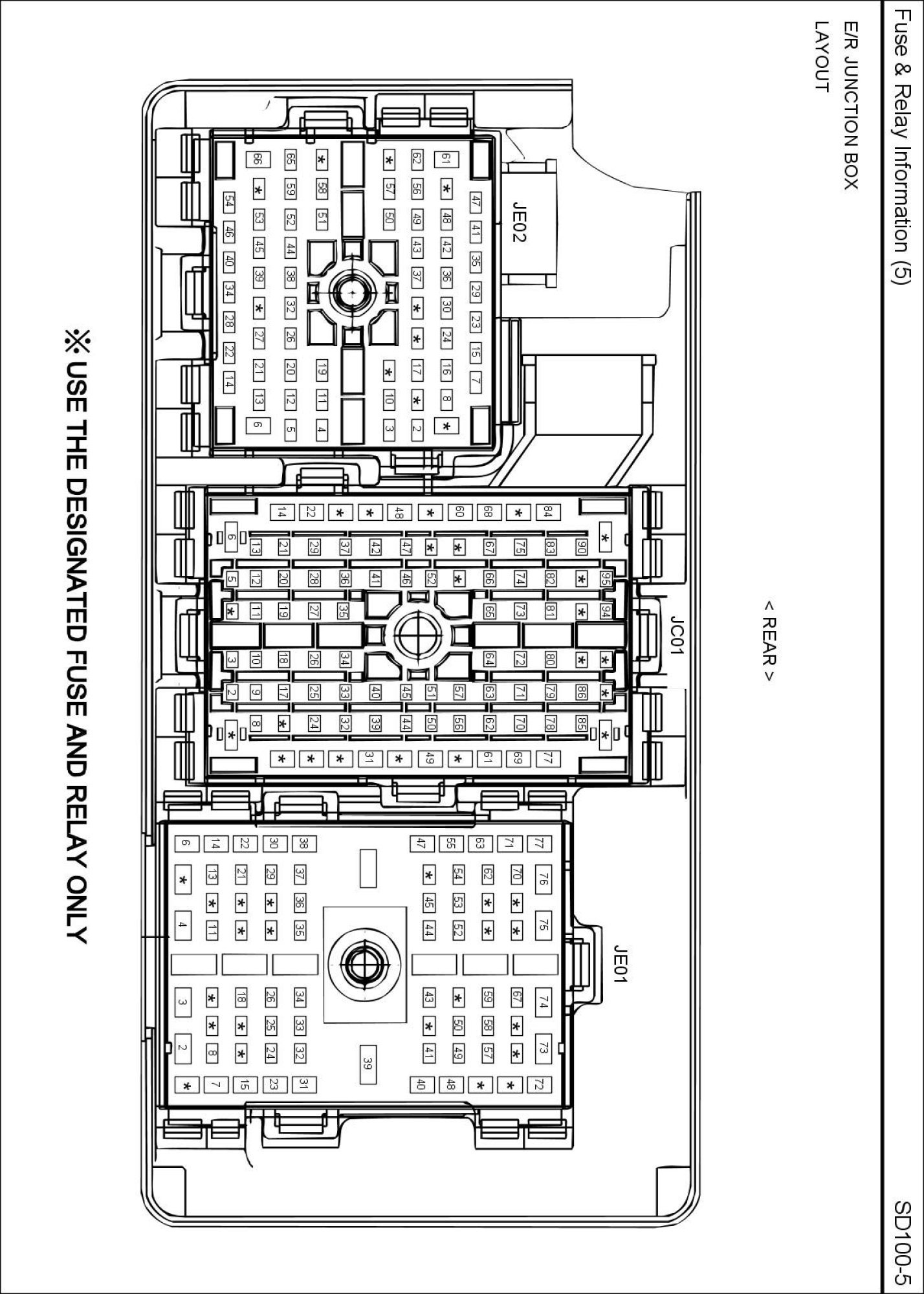

E/R Junction Box View:

E/R Junction Box Circuit Details:

E/R Junction Box View:

E/R Junction Box View:

Front Fuse Box View:
