Control Module, A/T

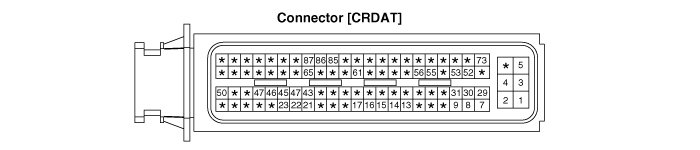

1. TCM connector and terminal function

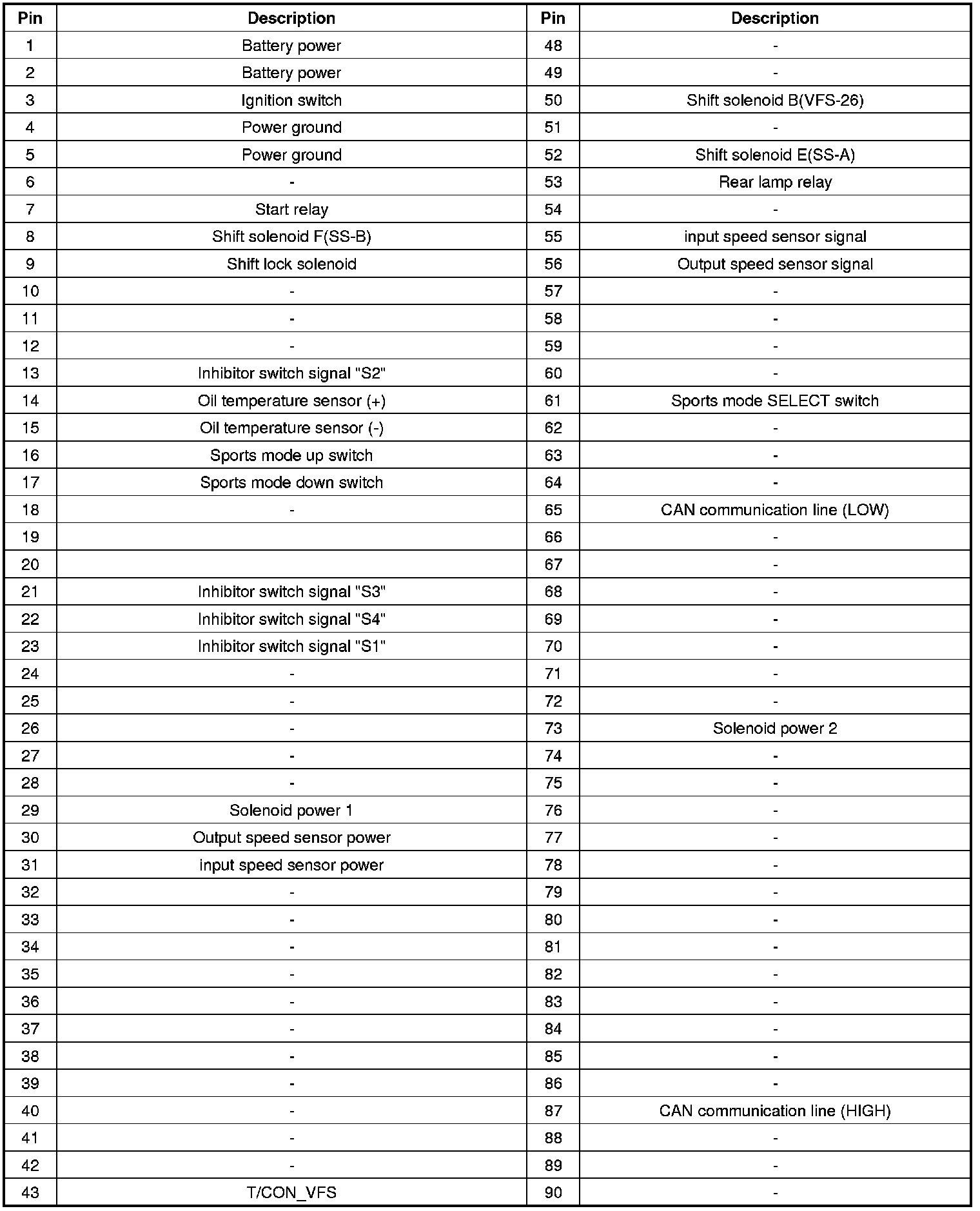

2. TCM terminal function

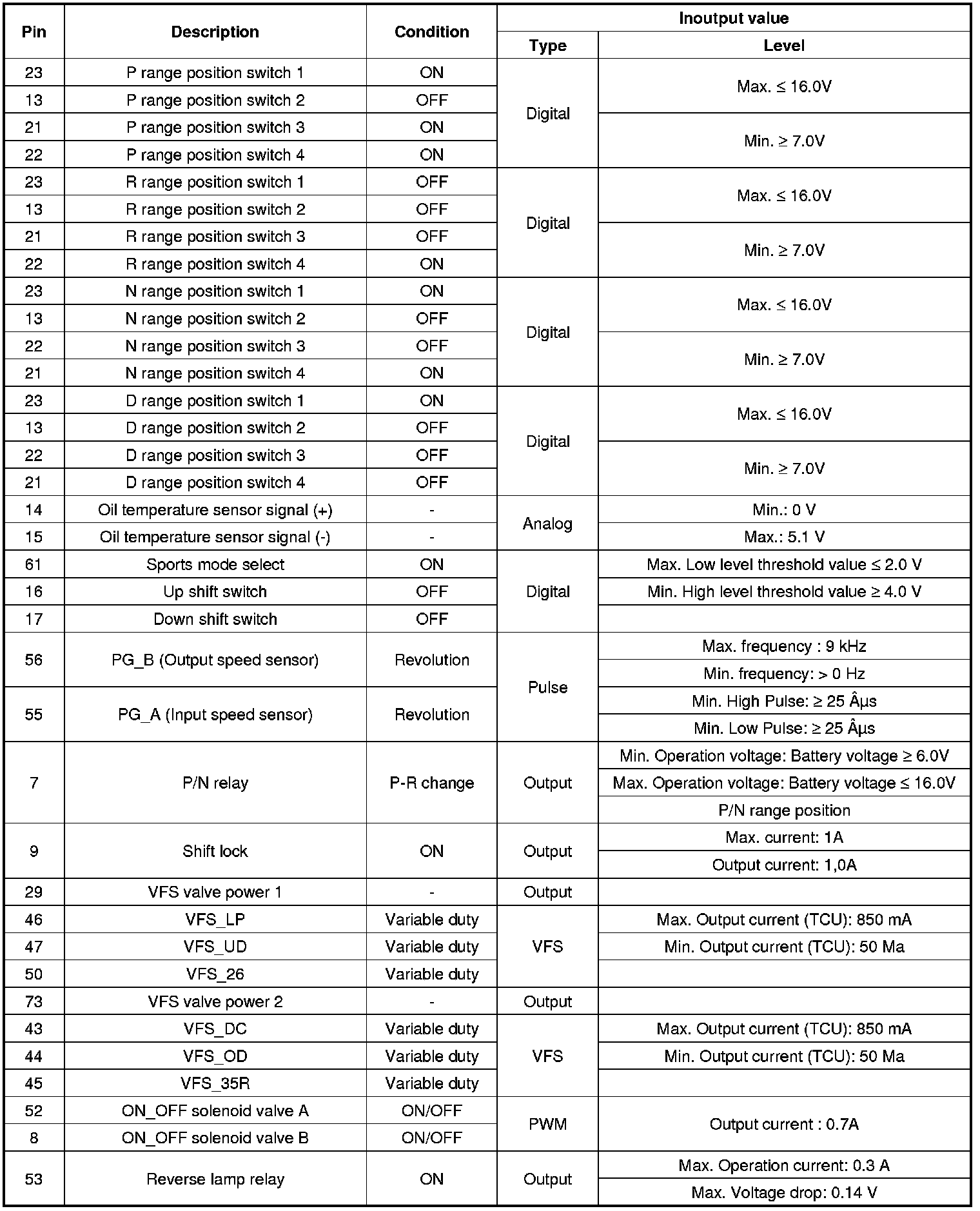

3. TCM Terminal input/output signal
