Signal Circuit Inspection

  1. IG "OFF" and disconnect OTS connector.
  2. IG "ON".
  3. Measure voltage between signal terminal of OTS harness connector and chassis ground.

    Specification:  Approx. 5V

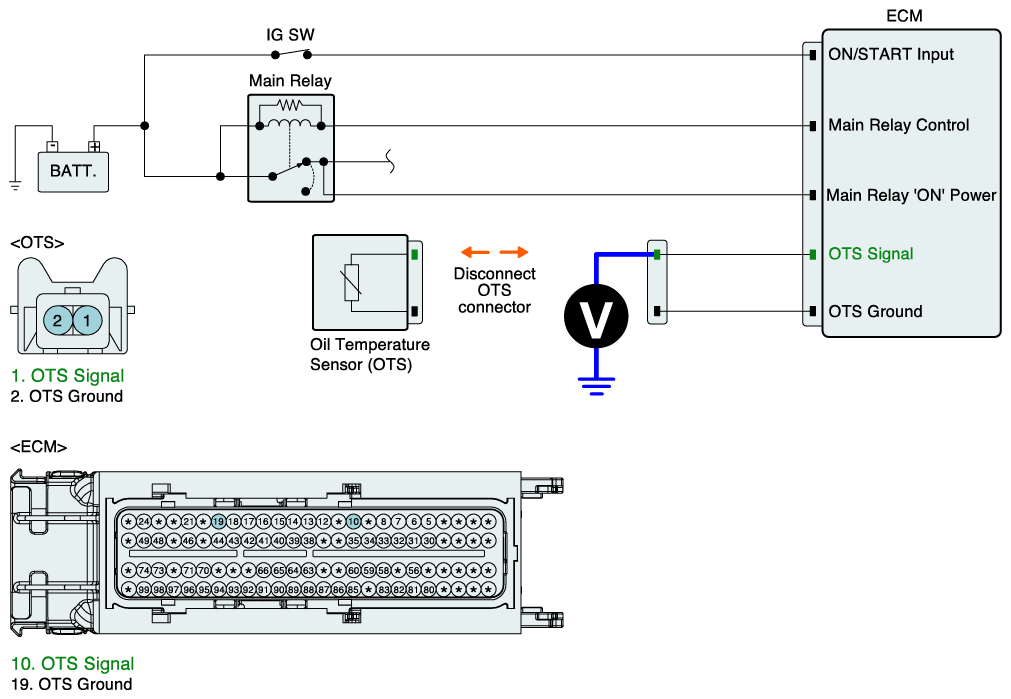

    Fig 1: Measuring Voltage Between Signal Terminal Of OTS Harness Connector And Chassis Ground
    G07251505Courtesy of HYUNDAI MOTOR CO.
  4. Is the measured voltage within specification?

    YES

    NO
