Component Inspection

IG "OFF" and disconnect OCV connector.
Measure resistance between power and signal terminals of OCV. (Component Side)
Specification: 6.7 ~ 7.7 Ω

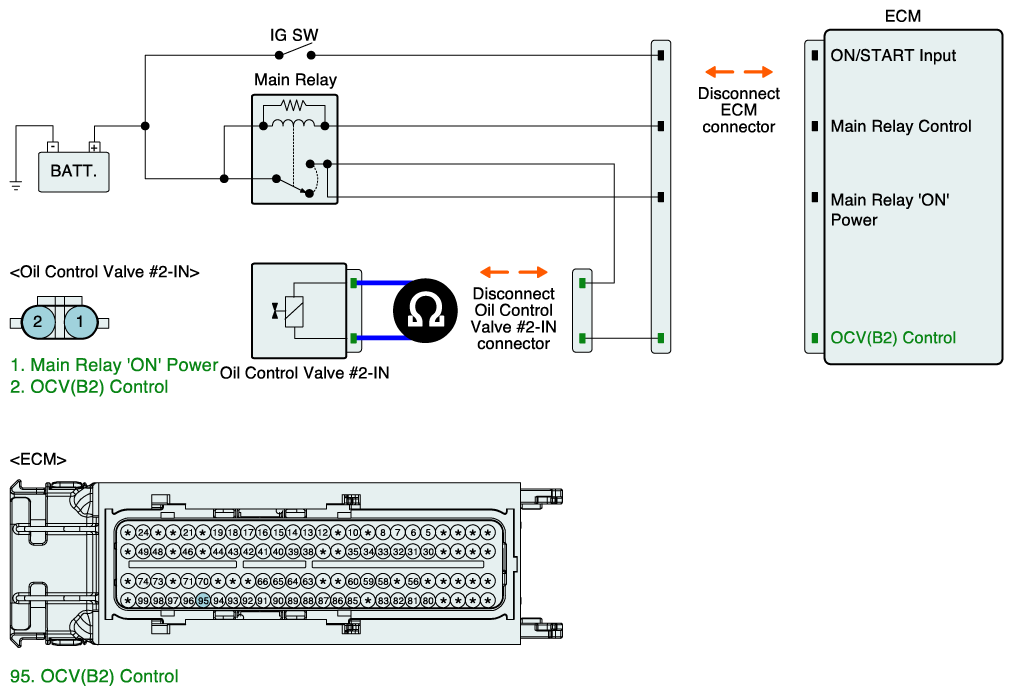

Fig 1: Measuring Resistance Between Power And Signal Terminals Of OCV (Component Side)
Courtesy of HYUNDAI MOTOR CO.
Is the measured resistance within specification?
YES
- Go to "Check CAM PHASER with actuation test" as follows.
NO
- Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Connect scantool and IG "ON".
Select "CAM PHASER INTAKE BANK 1" on the Actuation Test.
Select "OIL CONTROL VALVE" on the Actuation Test.
Activates "CAM PHASER INTAKE BANK 1" by pressing "START" button.
Activates "OIL CONTROL VALVE" by pressing "START" button.
Repeat this procedure 4 or 5 times to ensure CAM PHASER and valve control solenoid reliability.

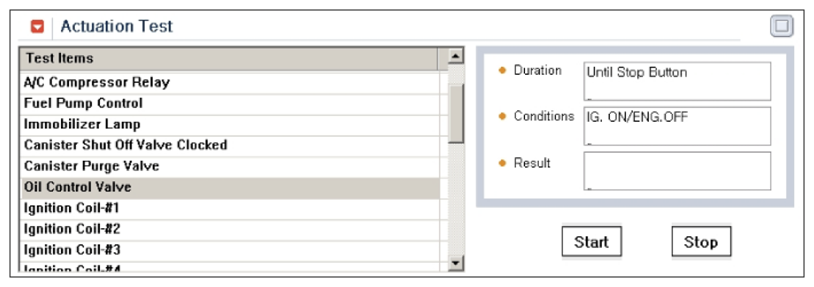

Fig 2: Actuation Test Screen Display - OIL CONTROL VALVE
Courtesy of HYUNDAI MOTOR CO.

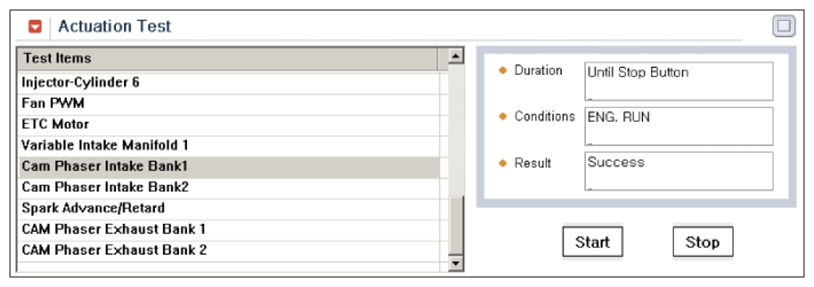

Fig 3: Actuation Test Screen Display - CAM PHASER INTAKE BANK 1
Courtesy of HYUNDAI MOTOR CO.
Has a problem been found?
YES
- Substitute with a known - good CVVT or OCV and check for proper operation. If the problem is corrected, replace CVVT or OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault is intermittent. Drive the vehicle to meet the enable condition for the DTC. and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
