DTC P0076: Intake Valve Control Solenoid Circuit Low
>>
General Information
>>
Signal Waveform
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Signal Waveform

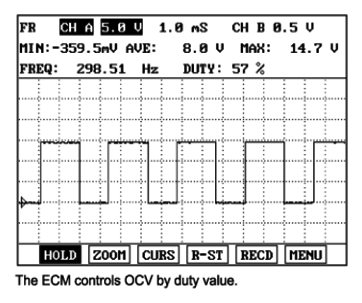

Fig 1: OCV Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
The ECM controls OCV by duty value.
Courtesy of HYUNDAI MOTOR CO.
