Repair procedures: Removal

  1. Disconnect the battery negative cable and wait at least three minutes before beginning work.
  2. Remove the three airbag module mounting bolts.

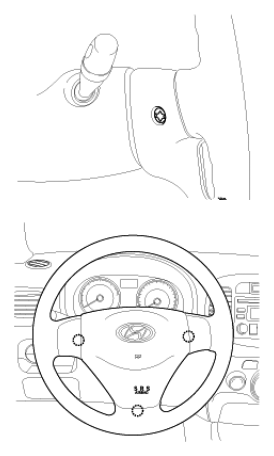

    Fig 1: Identifying Airbag Module And Mounting Bolts
    G06882380Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the horn connector (A).
    Fig 2: Identifying Horn Connector, Connector Locking Pin And Driver Airbag Module Connector
    G06882381Courtesy of HYUNDAI MOTOR CO.
  4. Release the connector locking pin (B), then disconnect the driver airbag module connector (C).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  5. Remove the steering wheel and steering wheel column cover. (Refer to STEERING COLUMN & SHAFT )
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
    Fig 3: Identifying Clock Spring And Horn Connector
    G06882382Courtesy of HYUNDAI MOTOR CO.
