Component (5)

WARNING: This page is about a different variant/trim than selected.

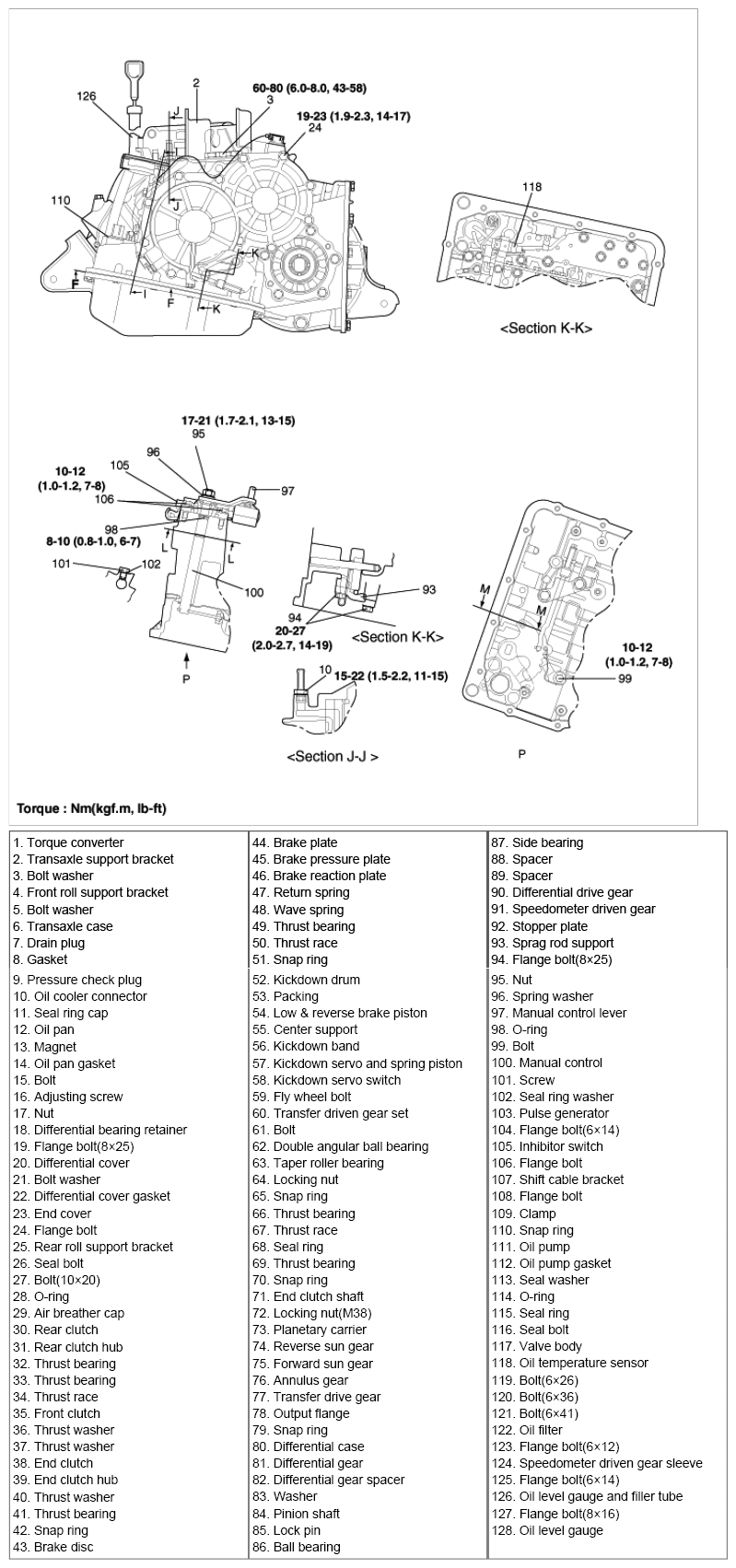

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (5 Of 5)
G06879656Courtesy of HYUNDAI MOTOR CO.
