Signal Circuit Inspection

  1. IG "OFF".
  2. Disconnect HO2S (B1/S1) connector.
  3. IG "ON" & ENG "OFF".
  4. Measure voltage between terminal 2 of HO2S (B1/S1) and chassis ground.
    1. Specification : Approx. 0.45 V

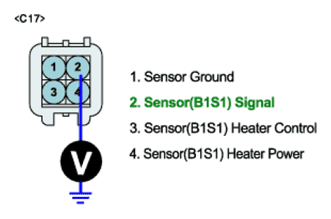

      Fig 1: Measuring Voltage Between Terminal 2 Of HO2S (B1/S1) And Chassis Ground
      G06881368Courtesy of HYUNDAI MOTOR CO.
  5. Is the measured voltage within specification?

    YES

    1. Go to "GROUND CIRCUIT INSPECTION " procedure.

    NO

    1. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
