Circuit Diagram

[A/T]

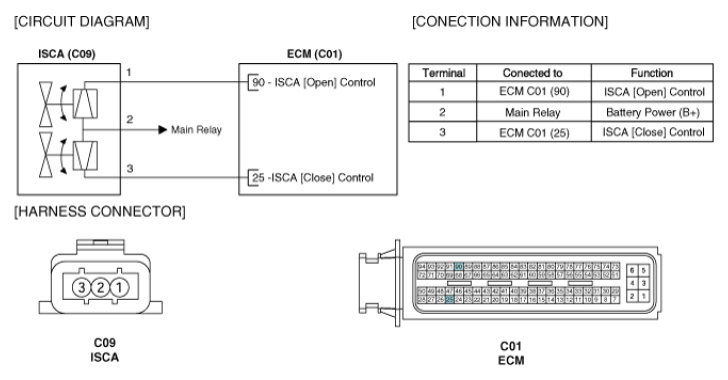

Fig 1: Idle Speed Control Actuator Circuit Diagram - A/T

Courtesy of HYUNDAI MOTOR CO.

[M/T]

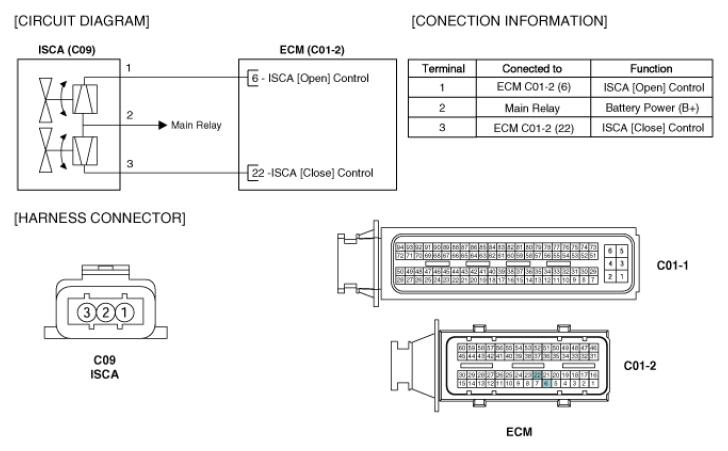

Fig 2: Idle Speed Control Actuator Circuit Diagram - M/T

Courtesy of HYUNDAI MOTOR CO.
