Repair procedures: Inspection
- Disconnect the negative (-) battery terminal.

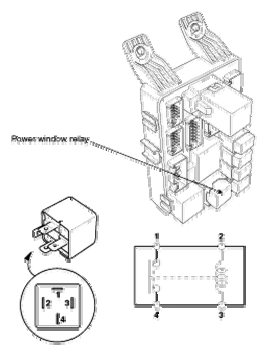

- Remove the power window relay from the junction box.
- Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 4 terminals when power and ground are connected to the No. 2 and No. 3 terminals.
- There should be no continuity between the No. 1 and No. 4 terminals when power is disconnected.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
