Repair procedures: Removal

  1. Turn the ignition switch OFF.
  2. Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.
    Fig 1: Identifying Brake Tubes
    G06857702Courtesy of HYUNDAI MOTOR CO.
  3. Pull up the lock (A) of the ESC control unit 46P connector, then disconnect the connector.

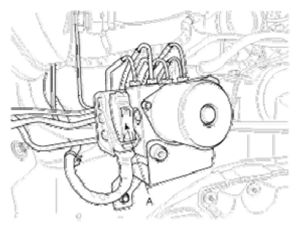

    Fig 2: Identifying Lock
    G06857703Courtesy of HYUNDAI MOTOR CO.
  4. Loosen the 3 ESC HECU bracket bolts, then remove HECU and bracket.
    CAUTION:
    1. Never attempt to disassemble the HECU.
    2. The HECU must be transported and stored in.
    3. Never shock to the HECU.
  5. Remove the 3 bolts, then remove the bracket from HECU.
