Cabin Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

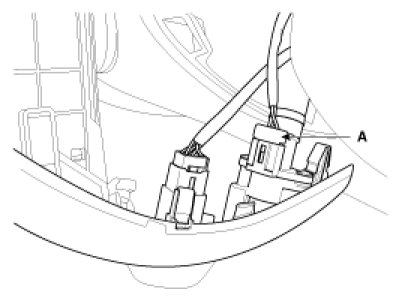

2. Remove the right center air vent and then disconnect the in car sensor connector (A).

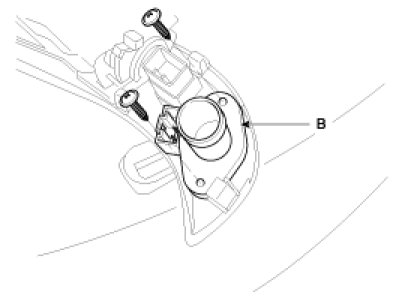

3. Remove the in car sensor (B) from center air vent.




4. Installation is the reverse order of removal.
