Outline





Components

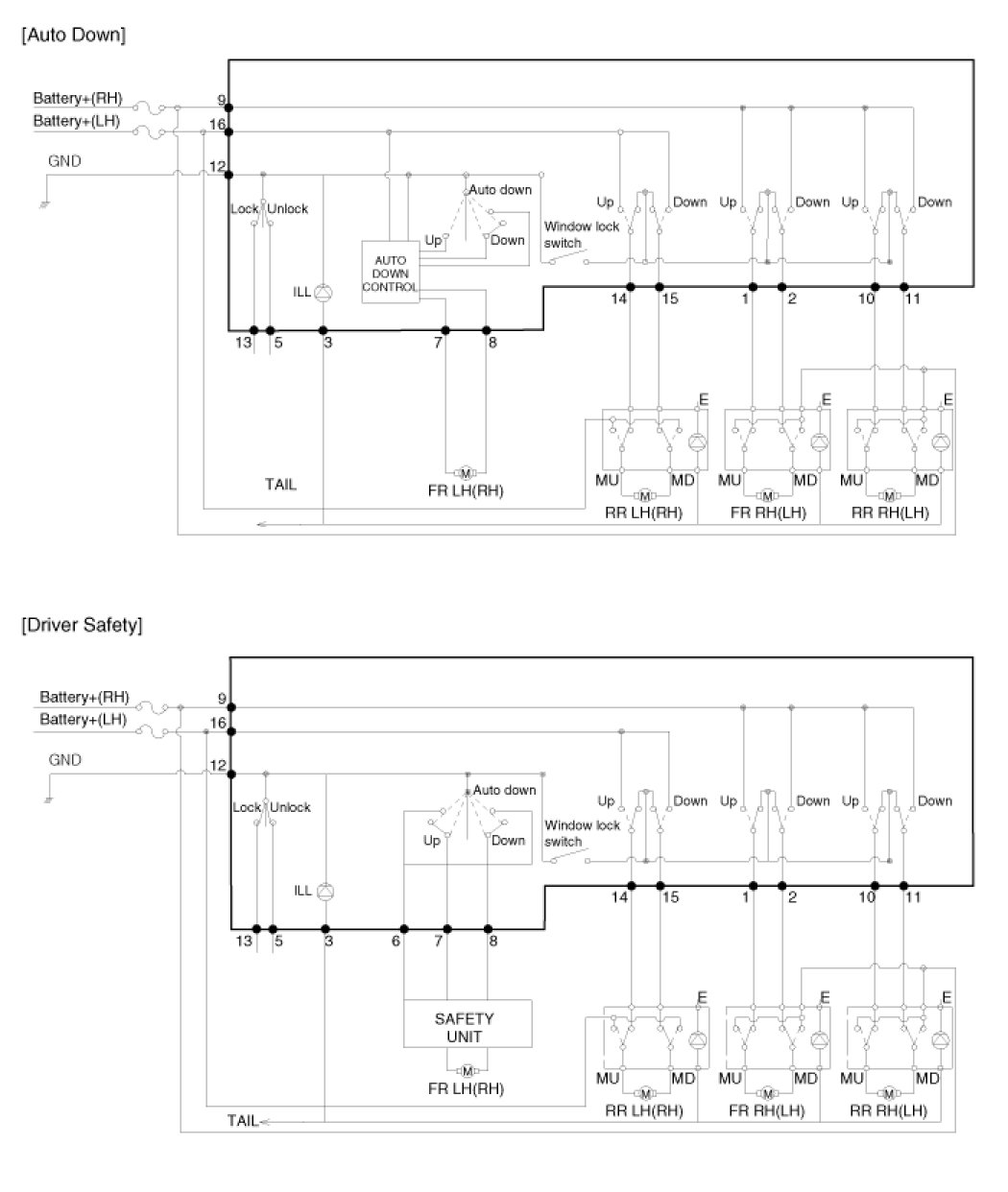

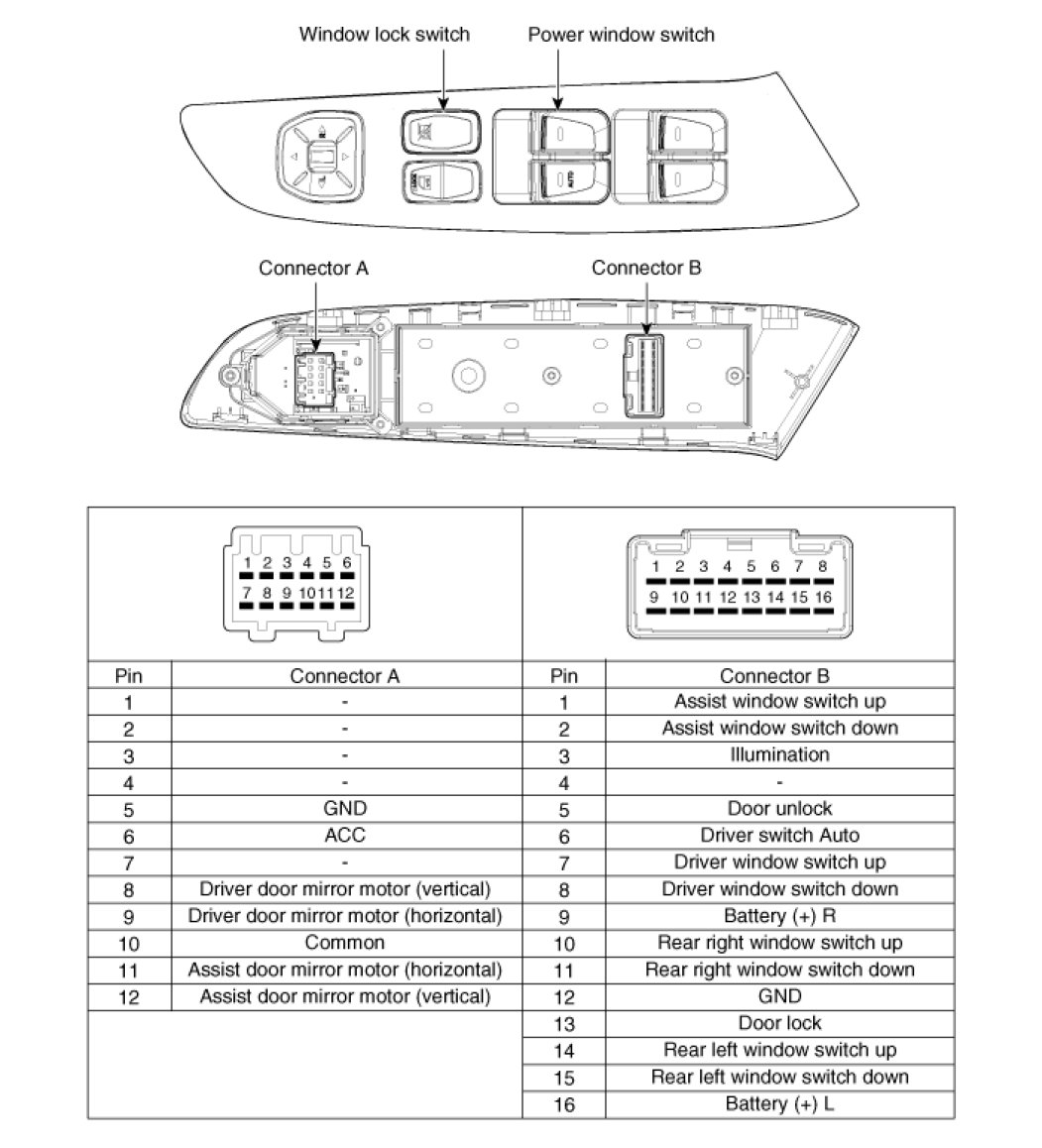

Power Window Main Switch

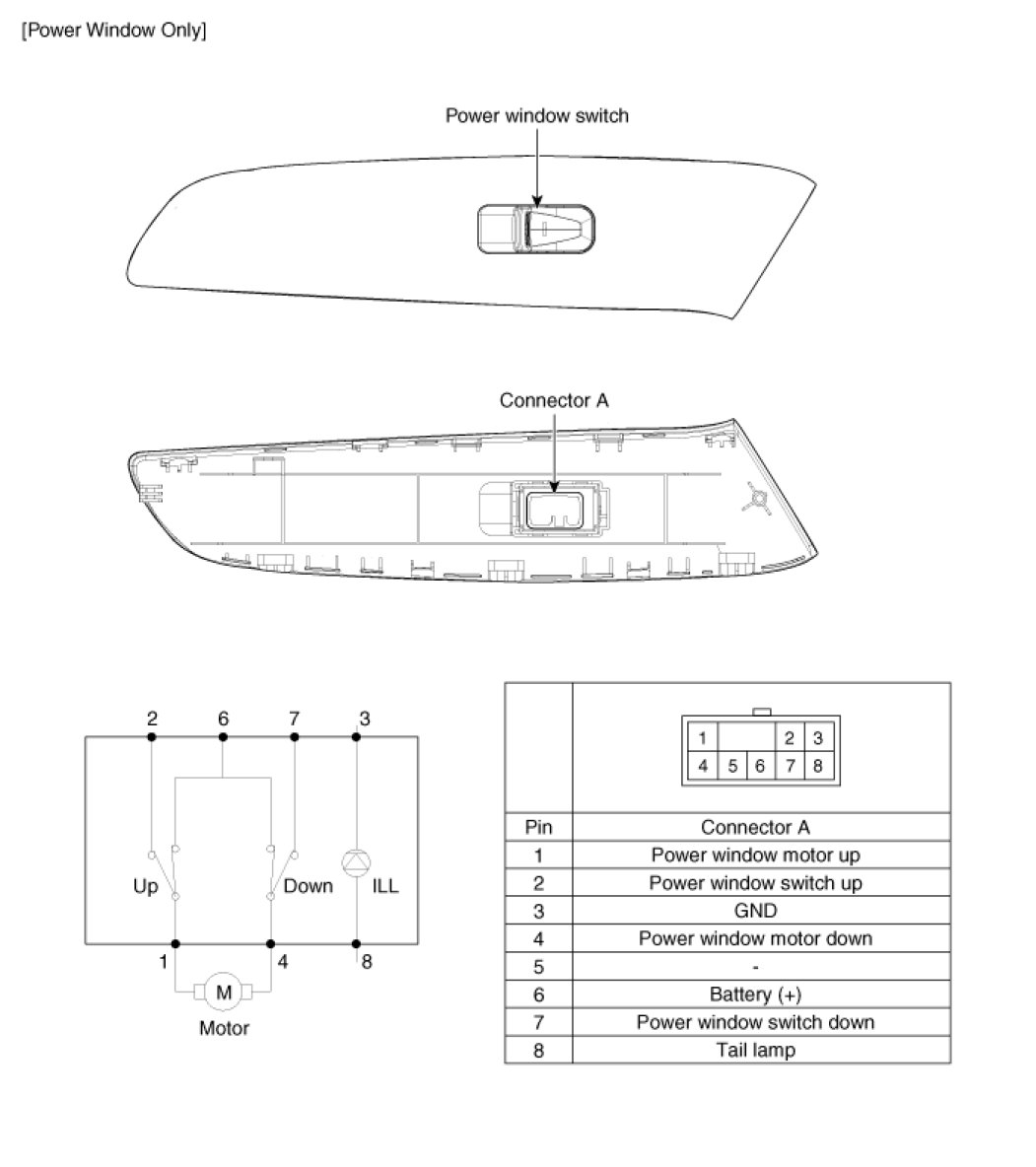

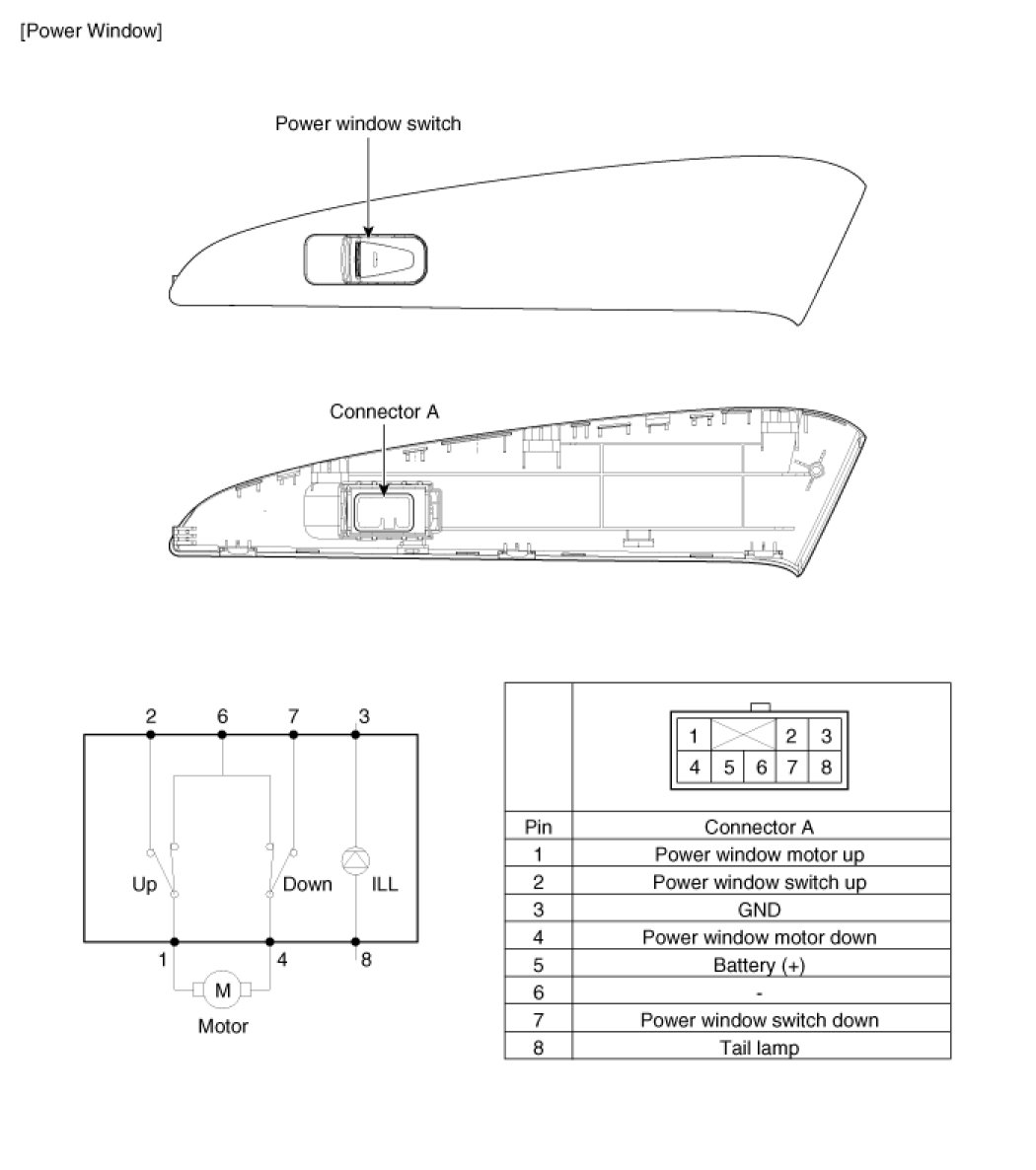

Passenger Power Window Switch

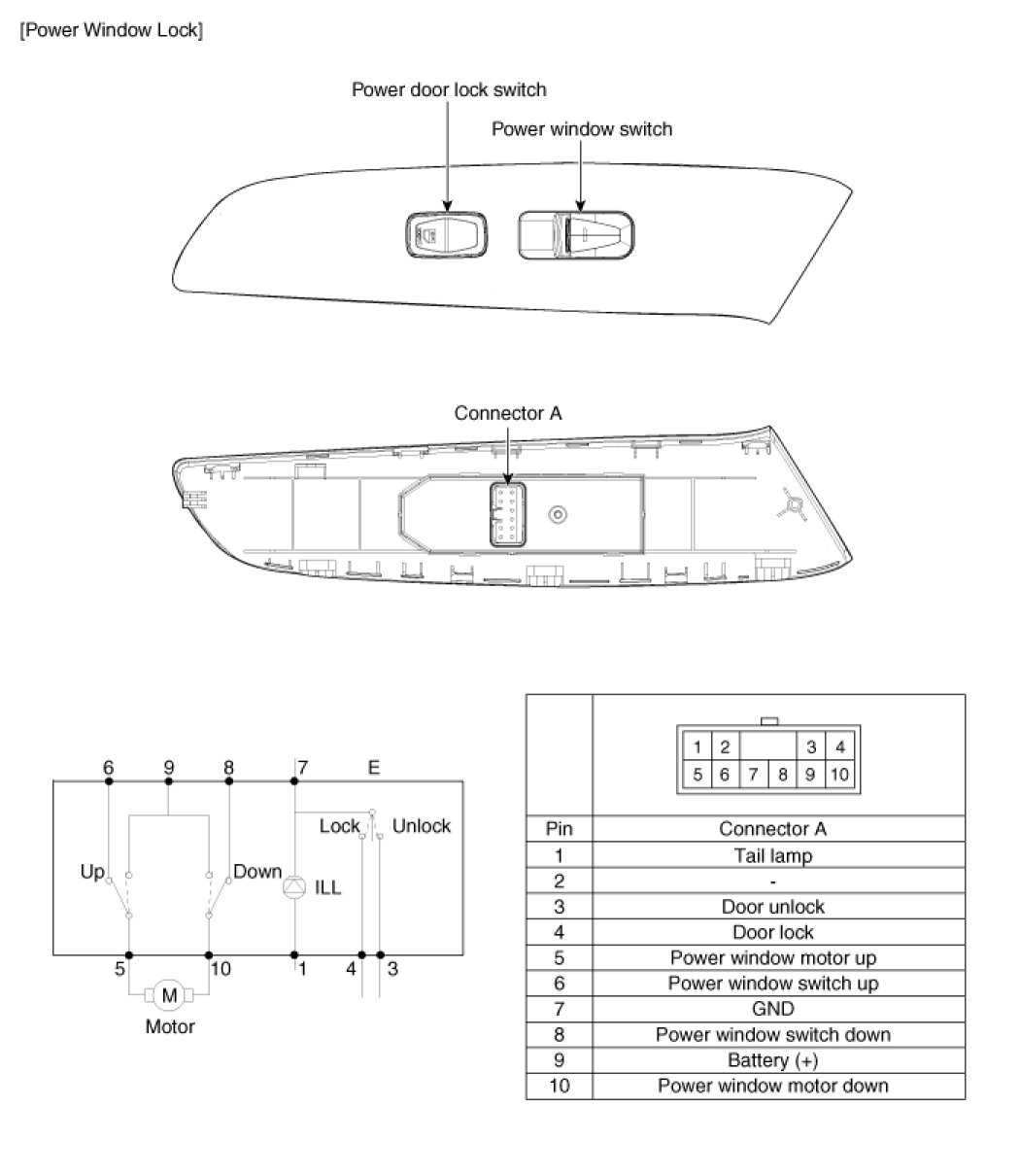

Rear Power Window Switch
