Pinout Values and Diagnostic Parameters





ECM Terminal And Input/Output signal

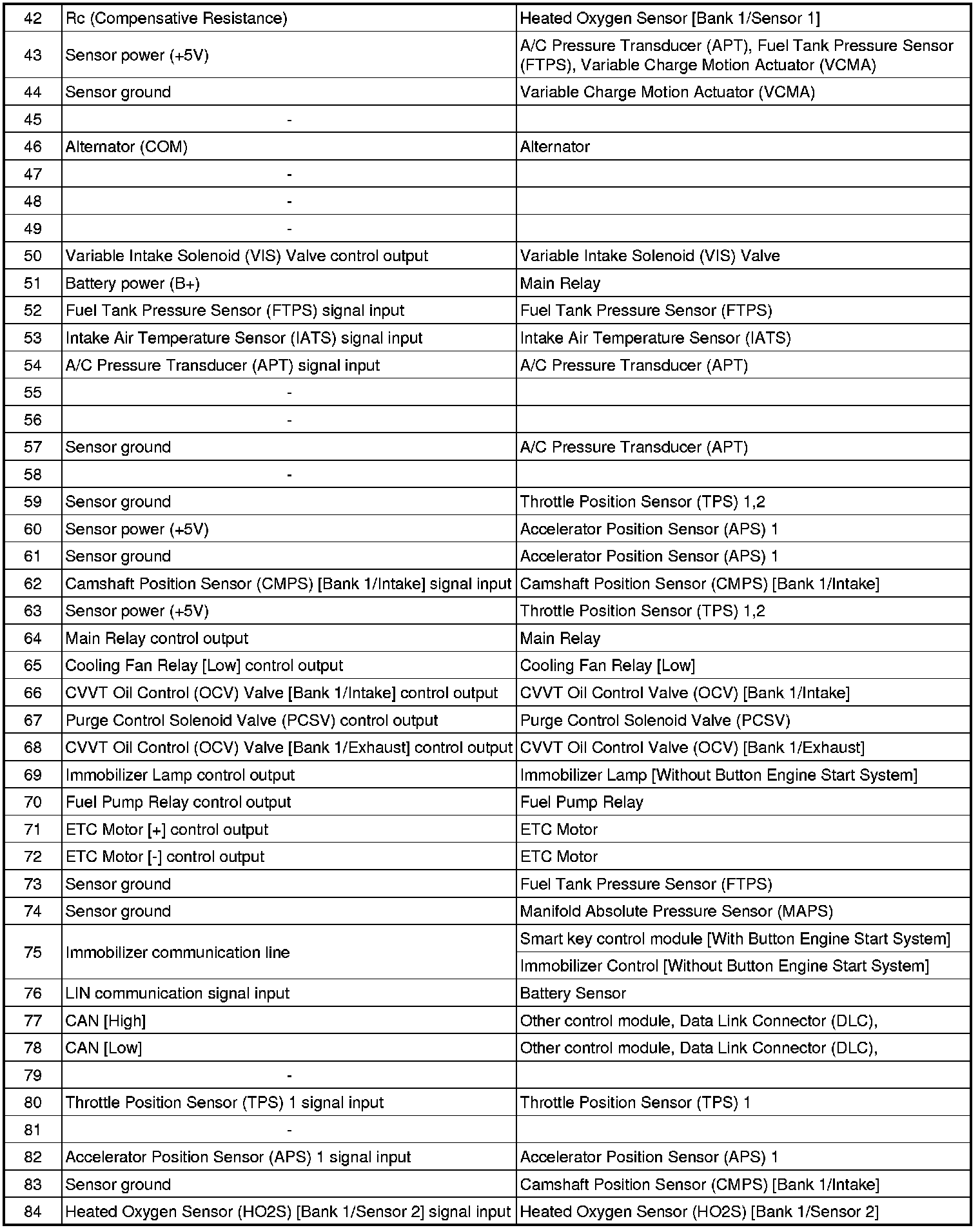

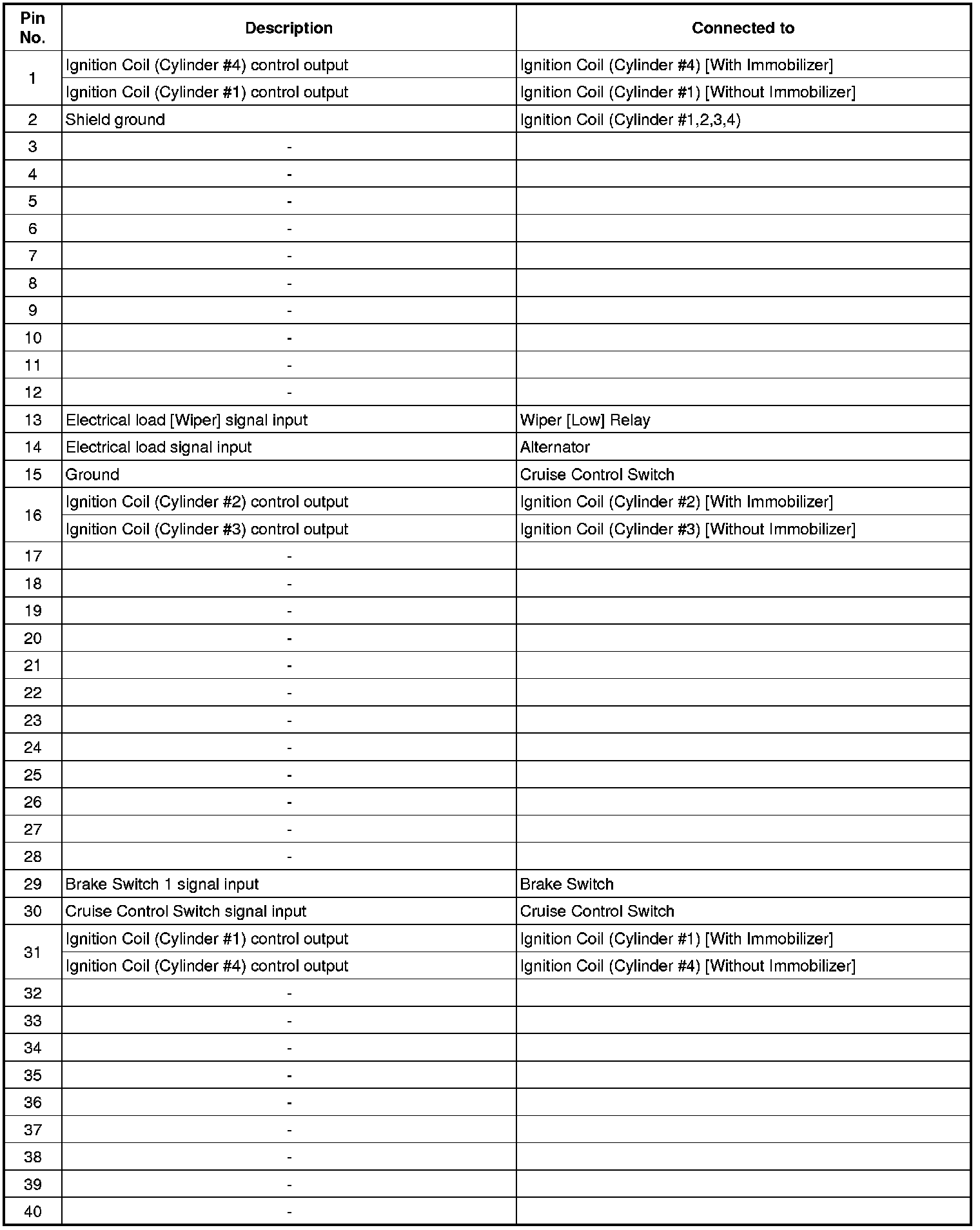

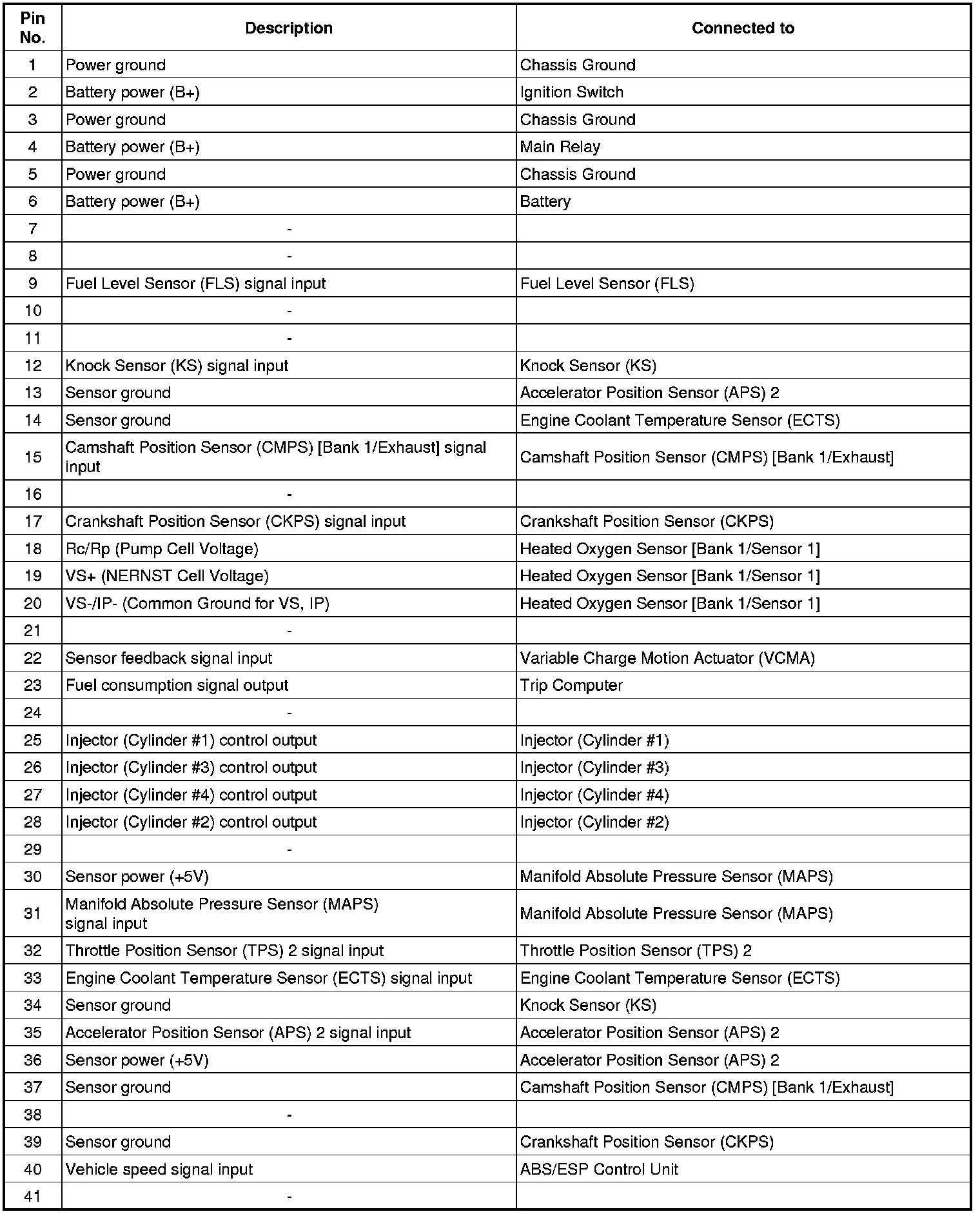

ECM Terminal Function

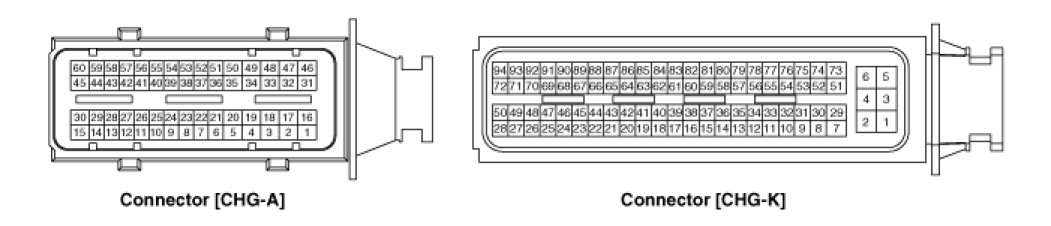

Connector [CHG-A]









Connector [CHG-K]

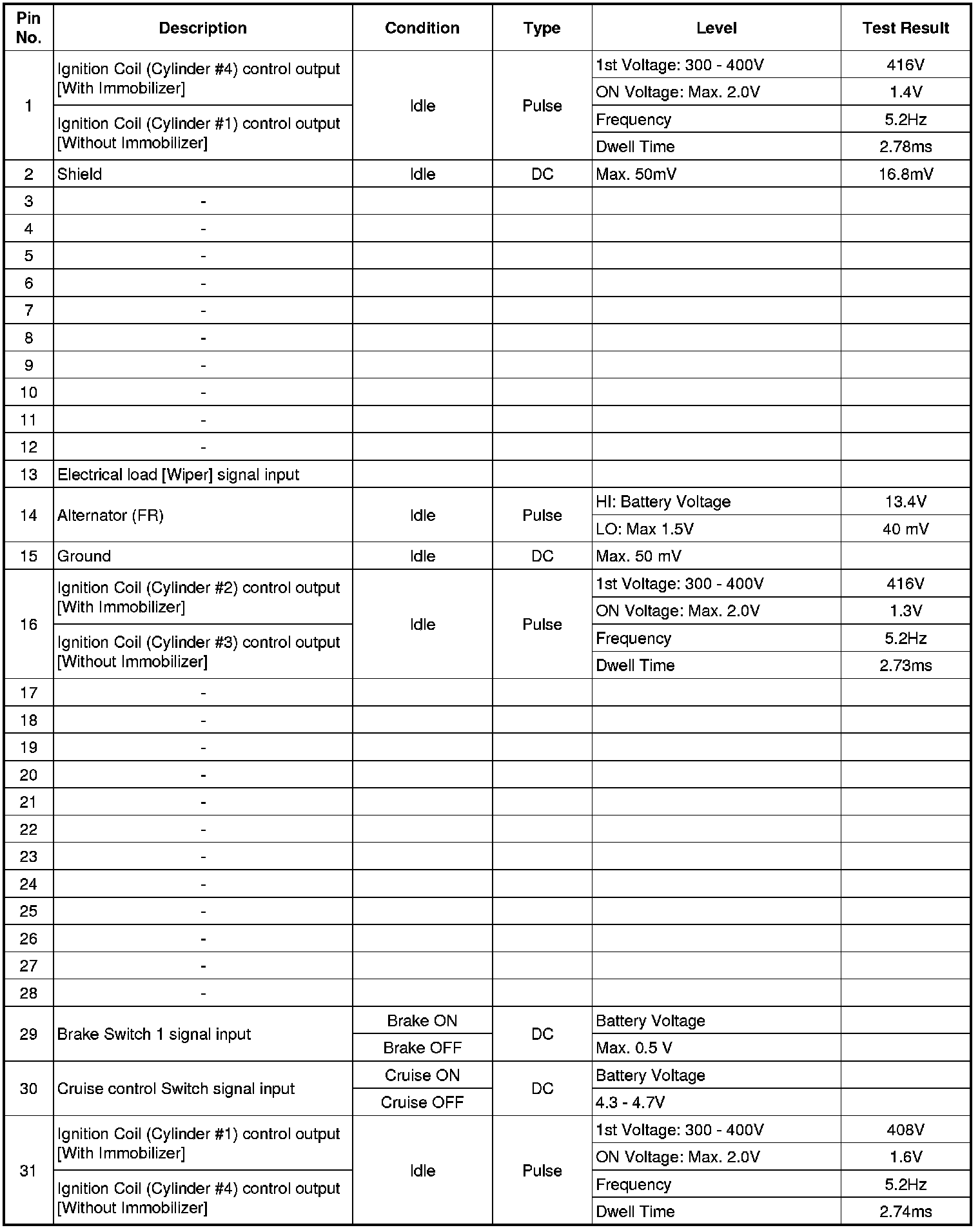

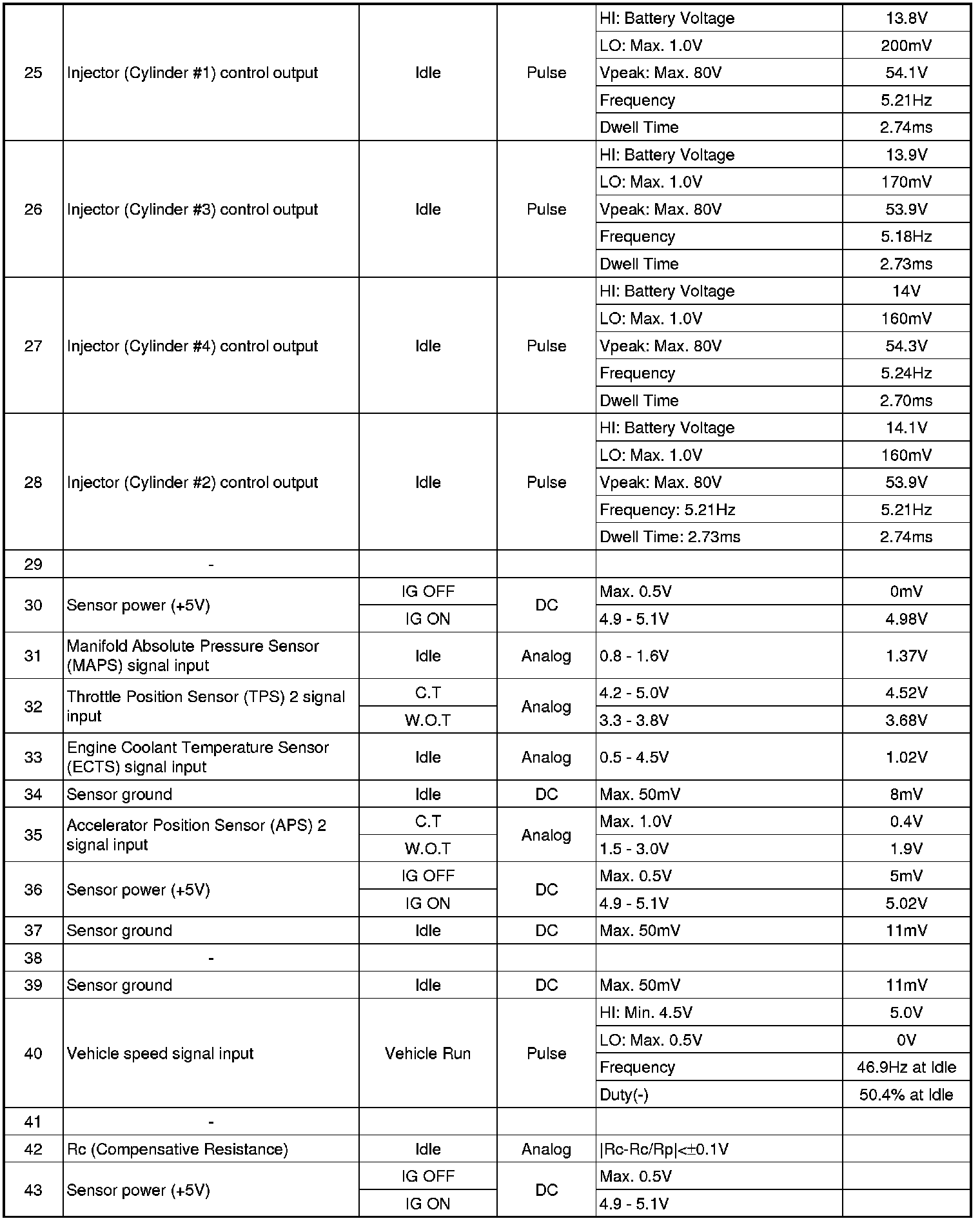

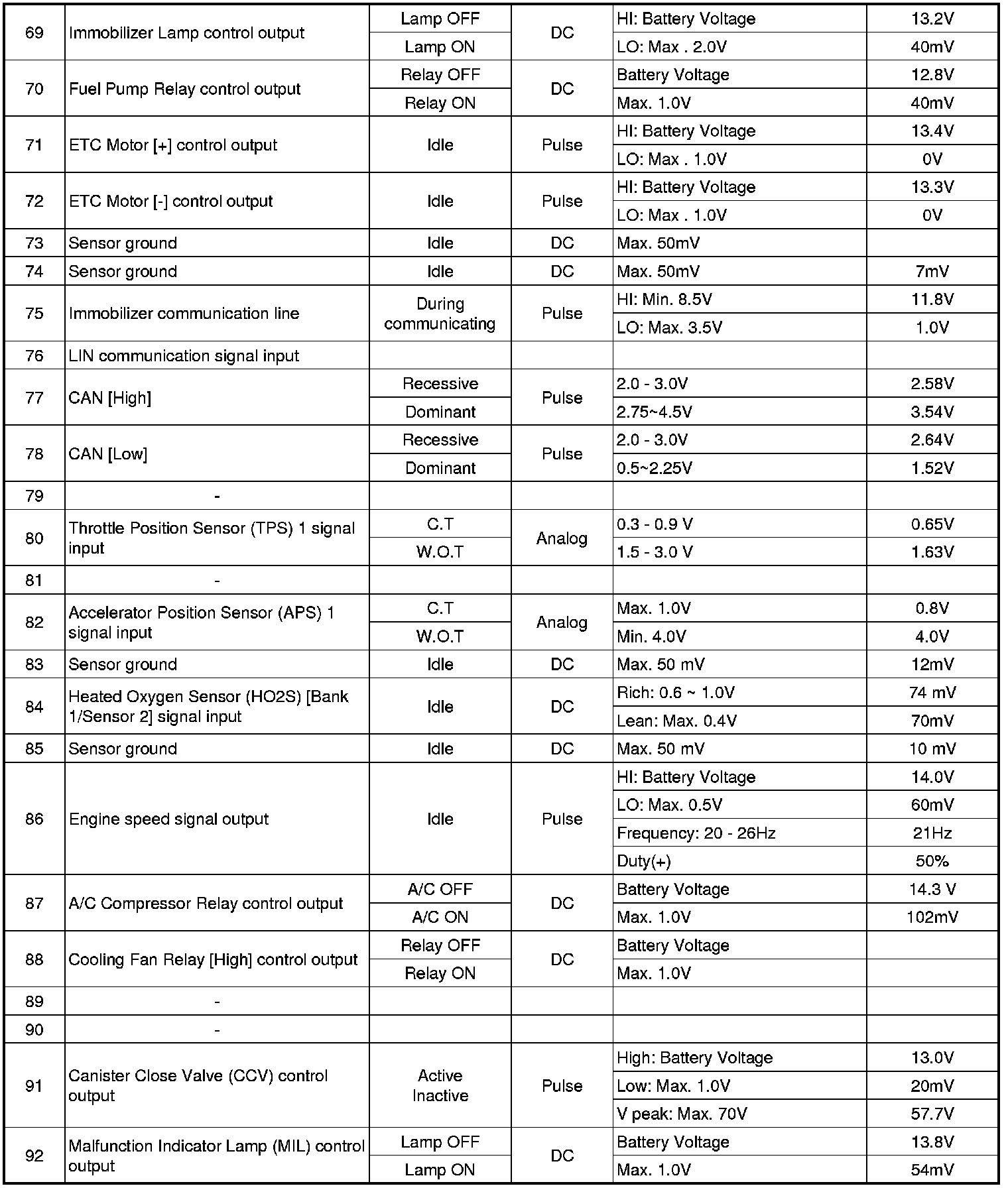

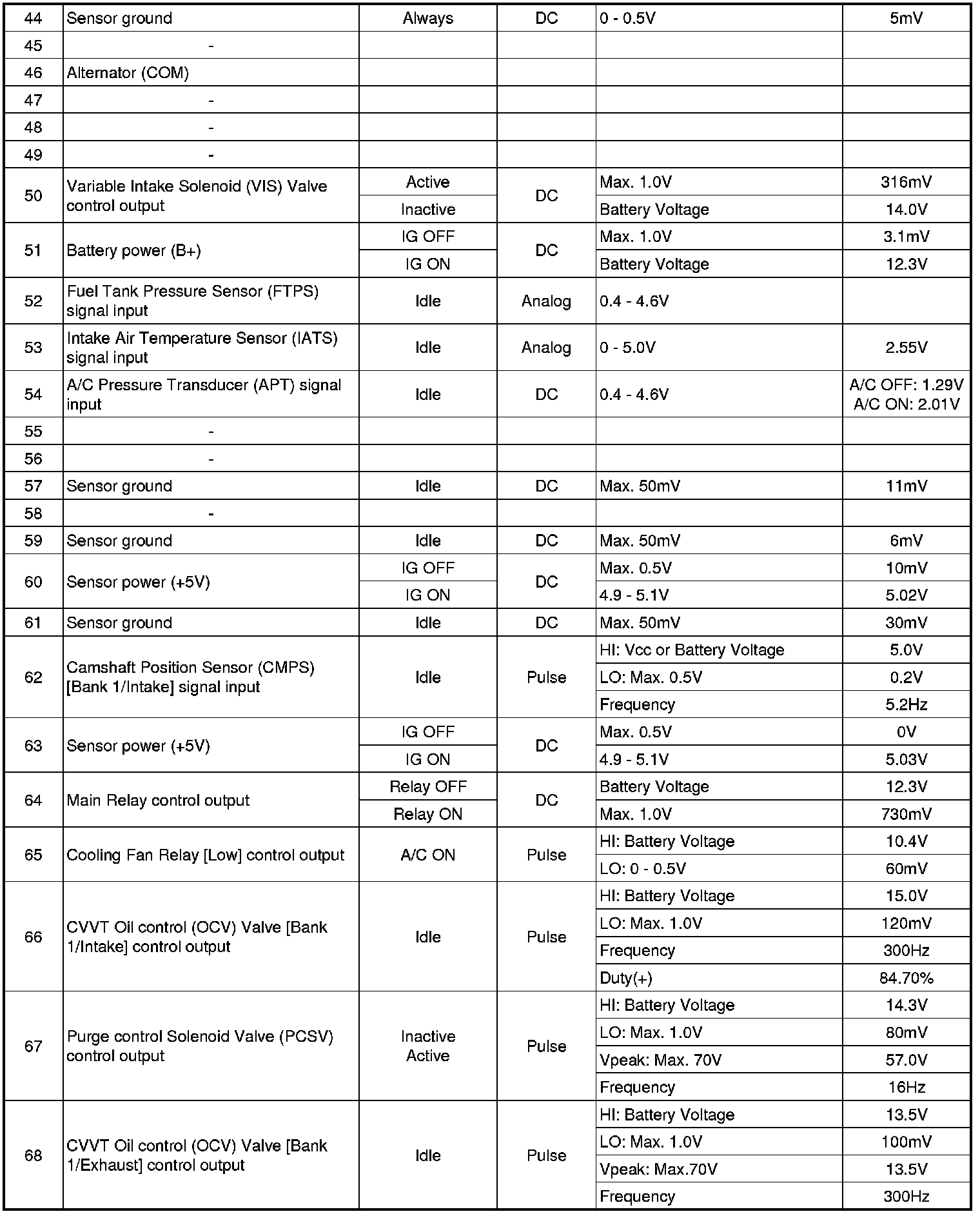

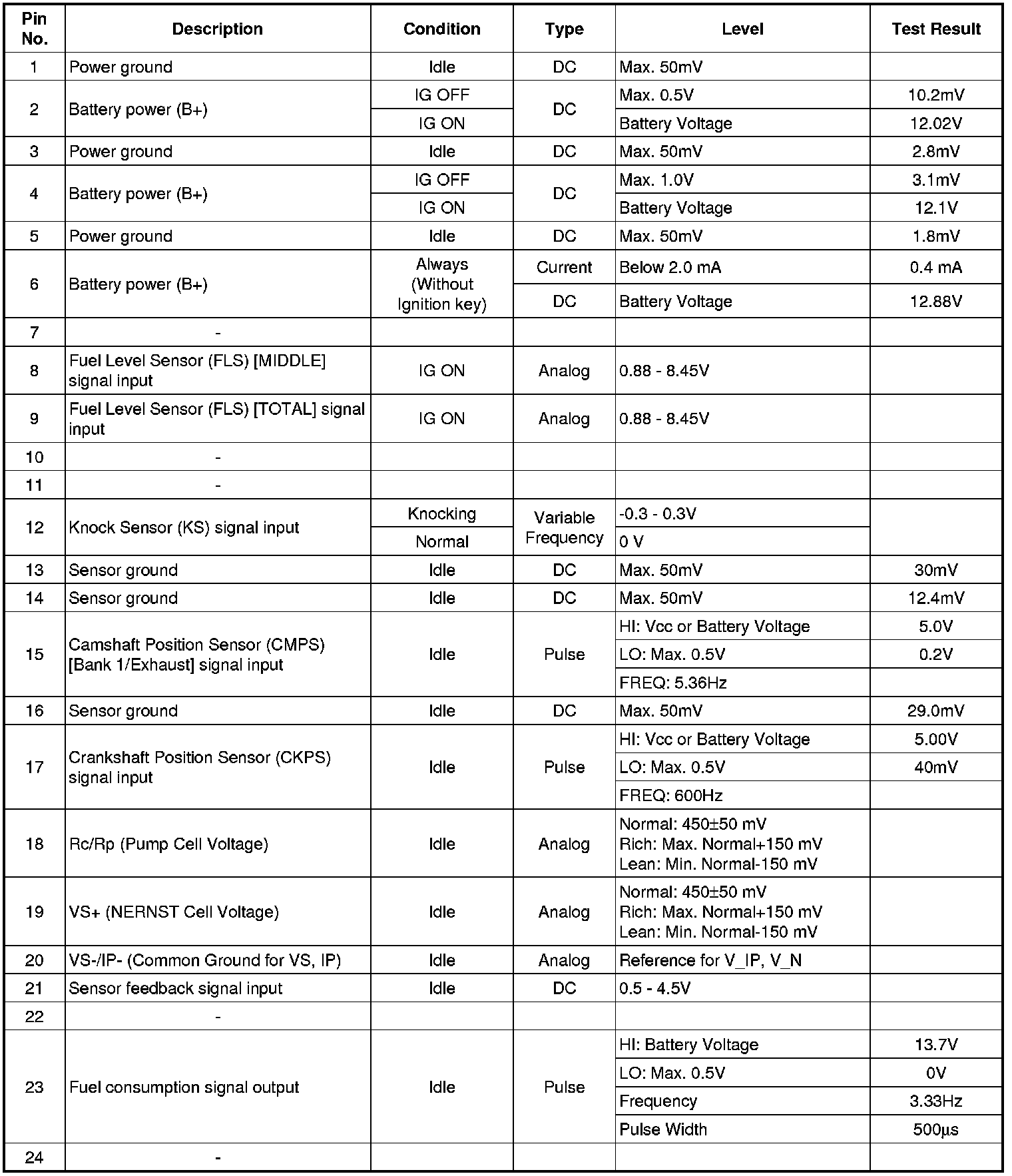

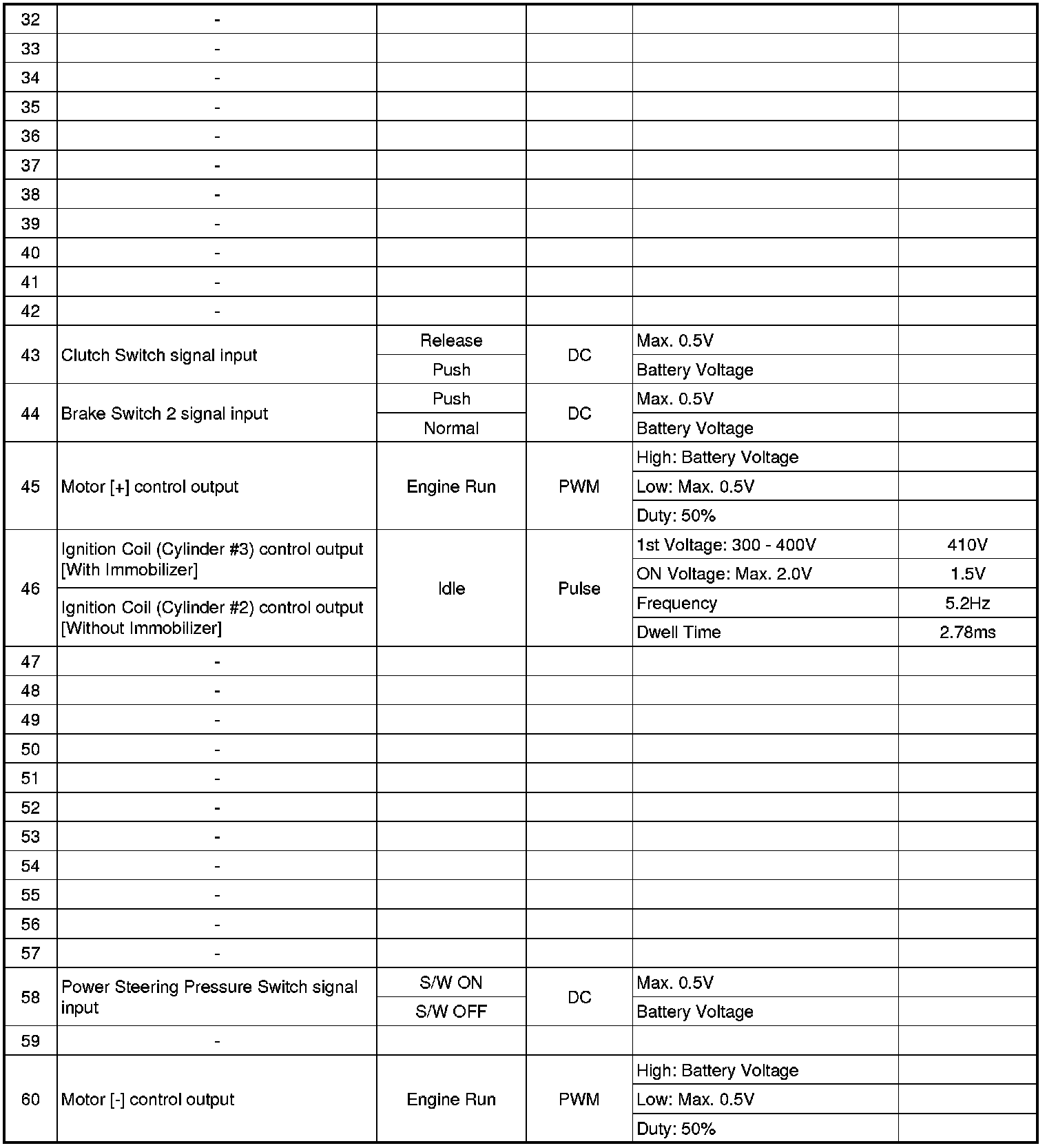

ECM Terminal Input/ Output signal
Connector [CHG-A]









Connector [CHG-K]
